Schneider Electric 9001SKR3BH13 Pushbutton 600Vac 10Amp 30Mm Sk +Options

Schneider Electric 9001SKR3BH13 Pushbutton 600Vac 10Amp 30Mm Sk +Options

Schneider Electric
SKU:
9001SKR3BH13
|
UPC:
785901042662
Availability:
Contact us to confirm availability and lead times.
$133.50
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description

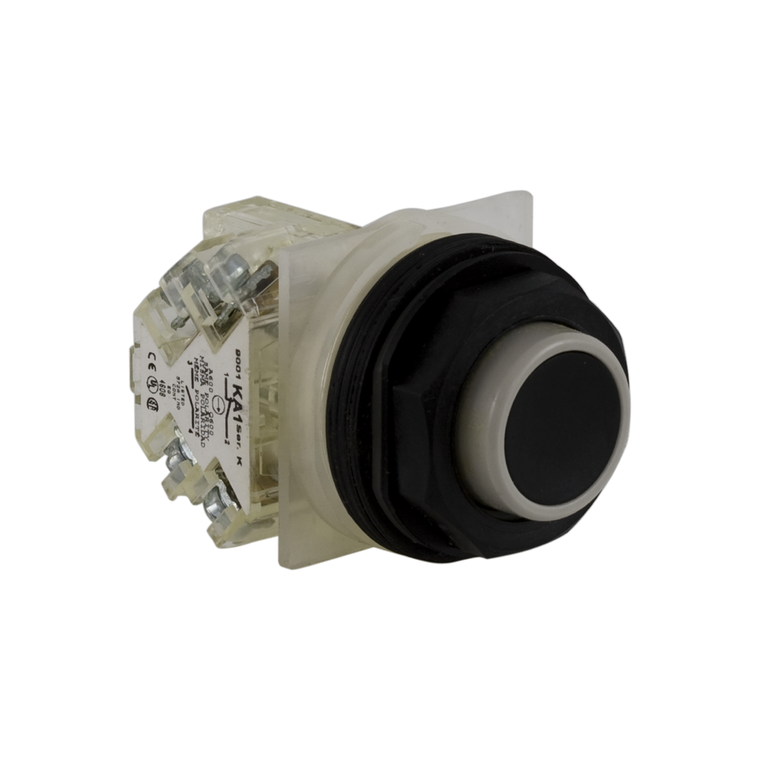

This Harmony 9001SK, modular projecting black push button has 2 positions, operates with spring return mechanism. It has a double insulated plastic bezel and has 1 x NO + 1 x NC contacts. This projecting push button provides an ergonomic interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
Additional Information
Device Presentation:
complete product
Standards:
UL 508 || JIS C 852 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || JIS C 4520
Product Or Component Type:
push-button
Sustainable Offer Status:
Green Premium product
Operator Profile:
projecting
Reach Free Of Svhc:
Yes
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Size:
30 mm
China Rohs Regulation:
X
Mounting Diameter:
30 mm
Mercury Free:
Yes
Operator Profile:
black projecting
Contacts Type And Composition:
1 C/O
Nema Degree Of Protection:
NEMA 1/2/3/3R/4/4X/6/12/13
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Contact Operation:
standard
Range Of Product:
Harmony 9001SK
Ip Degree Of Protection:
IP66
Cap/Operator Or Lens Colour:
black
Bezel Material:
plastic
Toxic Heavy Metal Free:
Yes
Operator Additional Information:
without guard
Circularity Profile:
N/A
Mechanical Durability:
5000000 cycles
Device Short Name:
9001SK
Environmental Disclosure:
EnvPEP120817EN
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Rohs Exemption Information:
Yes
Warranty:
18 months
Brochure:
View
Catalog:
View
Datasheet:
View
