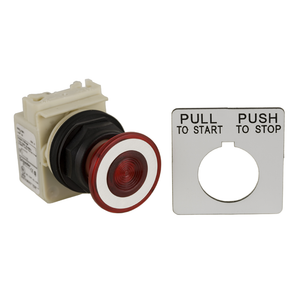

Schneider Electric 9001SKR9P38LRR Pushbutton 120V 30Mm Sk +Options
SKU:
9001SKR9P38LRR
UPC:
3389118036420
MPN:
Condition:
New
Net Weight:
0.226 kg
Operator Position Information:
2 positions
Mounting Diameter:
30 mm
Shape Of Signaling Unit Head:
round
Type Of Operator:
stay put
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Warranty:
18 months
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Ambient Air Temperature For Storage:
-40-70 °C
Protective Treatment:
TC
China Rohs Regulation:
X
Light Source:
incandescent
Standards:
IEC 60947-5-4 || UL 508 || JIS C 4520 || JIS C 852 || CSA C22.2 No 14 || IEC 60947-1 || IEC 60947-5-1
Operator Profile:
mushroom Ø 41 mm
Type Of Operator:
push-pull
Light Source Colour:
red
Reach Free Of Svhc:
Yes
Sustainable Offer Status:
Green Premium product
Mercury Free:
Yes
Operating Position:
any position
Mechanical Durability:
5000000 cycles
Range Of Product:
Harmony 9001SK
Contacts Type And Composition:
without contact block
Operator Profile:
red mushroom Ø 41 mm, unmarked
[Us] Rated Supply Voltage:
120 V AC/DC
Size:
30 mm
Shock Resistance:
50 gn IEC 60068-2-27
Electrical Shock Protection Class:
class II IEC 61140
Vibration Resistance:
7 gn 2-500 Hz)IEC 60068-2-6
Light Block Supply:
direct
Operator Additional Information:
screw-on plastic
Product Or Component Type:
head for illuminated push-button
Ambient Air Temperature For Operation:
-25-70 °C
Product Certifications:
NEMA || UL 508
Device Short Name:
9001SK
Light Source:
LED
Environmental Disclosure:
ENVPEP120816EN
Rohs Exemption Information:
Yes
Ip Degree Of Protection:
IP66 IEC 60529
Toxic Heavy Metal Free:
Yes
Circularity Profile:
N/A
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Bulb Base:
BA 9s
Cap/Operator Or Lens Colour:
red
Nema Degree Of Protection:
NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 4X
[Us] Rated Supply Voltage:
120 V
Bezel Material:
plastic
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
