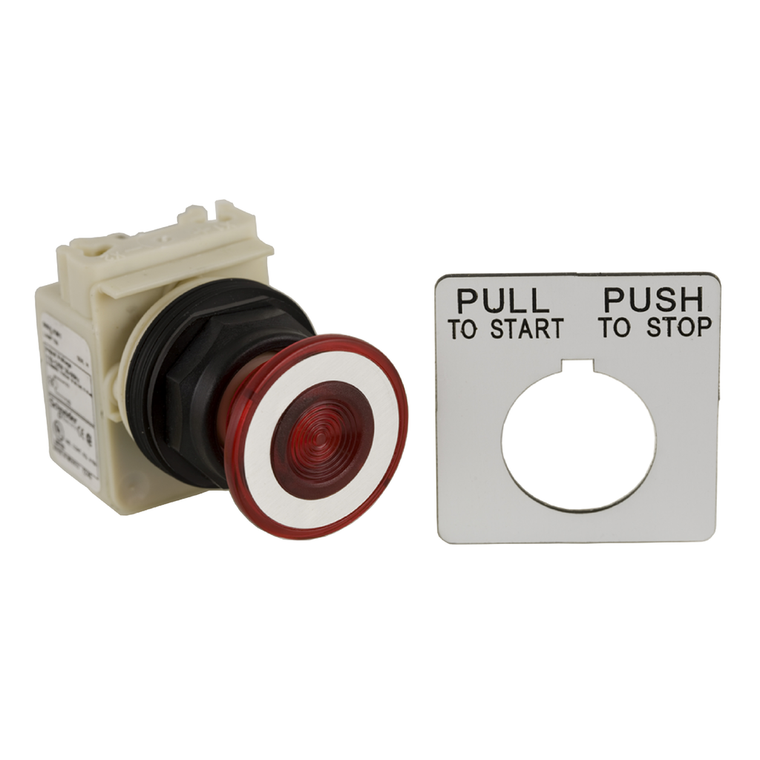

Schneider Electric 9001SKR9RH28 Pushbutton 600Vac 10Amp 30Mm Sk +Options

Schneider Electric 9001SKR9RH28 Pushbutton 600Vac 10Amp 30Mm Sk +Options

Schneider Electric
SKU:
9001SKR9RH28
|
UPC:
785901043218
Availability:
Contact us to confirm availability and lead times.
$211.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
The 9001SK push button line has a large variety of operators and accessories for heavy industry applications. These operators are used in the petrochemical, metallurgy, mining, oil and gas, wastewater treatment and automotive manufacturing industries and more. Type SK operators have a plastic operator that mounts in a 1.18 inch round hole. This non-illuminated push pull mushroom operator has a plasric ring nut. This operator has two normally closed and one normally open contacts Contact blocks have a UL Type A600, UL Type Q600 and a 10A resistive VAC ratings. The contacts in these contact blocks are double break. Contact blocks will accept up to two 12AWG to 24 AWG solid or stranded wires. The contact block terminals are protected to meeting VDE 0106 Part 100. When properly installed this opertor is UL listed for Types 1, 2, 3, 3R, 4, 4X, 6, 12 and 13 environments. This operator is UL Listed and CSA certified. "It is installed into a 30mm panel cutout." "The modular range of 30mm plastic control and signaling provides robust and reliable solutions for a wide range of heavy industry applications."
Additional Information
Type Of Operator:
push-pull
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Operator Position Information:
2 positions
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Toxic Heavy Metal Free:
Yes
Warranty:
18 months
Nema Degree Of Protection:
NEMA 1/2/3/3R/4/4X/6/12/13
Ip Degree Of Protection:
IP66
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Product Or Component Type:
push-button
Reach Free Of Svhc:
Yes
Standards:
EN/IEC 60947-5-4 || JIS C 4520 || UL 508 || CSA C22.2 No 14 || EN/IEC 60947-1 || EN/IEC 60947-5-1 || JIS C 852
Cap/Operator Or Lens Colour:
red
Size:
30 mm
Rohs Exemption Information:
Yes
Device Short Name:
9001SK
Mechanical Durability:
5000000 cycles
Sustainable Offer Status:
Green Premium product
Mercury Free:
Yes
China Rohs Regulation:
X
Operator Additional Information:
screw-on plastic
Device Presentation:
complete product
Environmental Disclosure:
ENVPEP120816EN
Operator Profile:
mushroom Ø 41 mm
Bezel Material:
plastic
Circularity Profile:
N/A
Range Of Product:
Harmony 9001SK
Contacts Type And Composition:
1 C/O + 1 NC
Mounting Diameter:
30 mm
Contact Operation:
standard
