Schneider Electric 9001SKS34B 30Mm Selector Switch 2 Position
Schneider Electric
$81.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

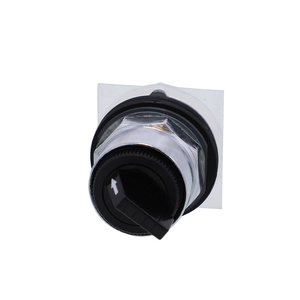

Schneider Electric 9001SKS34B 30Mm Selector Switch 2 Position
This selector switch 2 position provides a versatile interface for controlling your machines It provides an effective manner to set your machine in various operating modes It is impact resistant, dust resistant, water resistant and vibration resistant, making it ideal for operation in harsh environments It is easily installed into a standard 30mm diameter panel cut-outs and is easily connected to control circuits High performance International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 4X, 12 and 13)
- Warranty:
- 18 months
- Device Short Name:
- 9001SK
- Mercury Free:
- Yes
- Ambient Air Temperature For Storage:
- -40-70 °C
- Type Of Operator:
- spring return
- Cap/Operator Or Lens Colour:
- black
- Contacts Type And Composition:
- without contact block
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Reach Free Of Svhc:
- Yes
- Sustainable Offer Status:
- Green Premium product
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- China Rohs Regulation:
- X
- Protective Treatment:
- TC
- Circularity Profile:
- N/A
- Range Of Product:
- Harmony 9001SK
- Operator Profile:
- standard handle
- Cam Profile:
- 4
- Ambient Air Temperature For Operation:
- -25-70 °C
- Product Certifications:
- CE || CSA LR24590 class 3211 03 || UL listed file E42259 CCN NKCR
- Mounting Diameter:
- 30 mm
- Return:
- right to left
- Nema Degree Of Protection:
- NEMA 1/2/3/3R/4/4X/6/12/13
- Size:
- 30 mm
- Toxic Heavy Metal Free:
- Yes
- Ip Degree Of Protection:
- IP66 IEC 60529
- Operator Position Information:
- 2 positions
- Environmental Disclosure:
- ENVPEP120820EN
- Device Presentation:
- basic element
- Bezel Material:
- plastic
- Product Or Component Type:
- head for selector switch
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information:
- Yes
- Electrical Shock Protection Class:
- class II IEC 61140
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
