Schneider Electric 9001SKS43FB Selector Switch Operator 30Mm Sk
Schneider Electric
$52.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

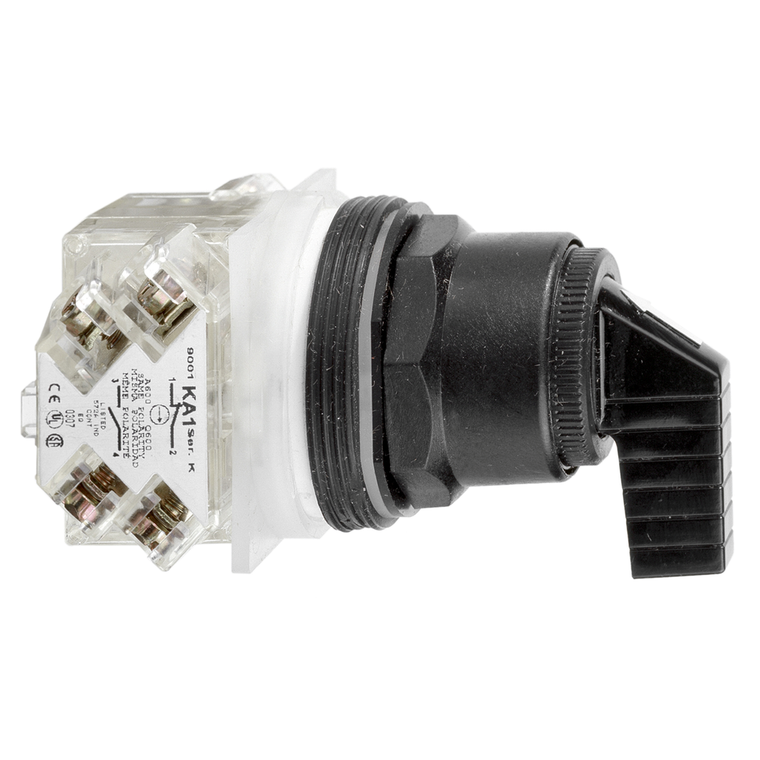

Schneider Electric 9001SKS43FB Selector Switch Operator 30Mm Sk
This selector switch with long handle provides a versatile interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and is easily connected to control circuits. It provides an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
- Cap/Operator Or Lens Colour:
- black
- Standards:
- JIS C 852 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || EN/IEC 60947-1 || JIS C 4520 || CSA C22.2 No 14 || UL 508
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Bezel Material:
- plastic
- Cam Profile:
- 3
- Operator Profile:
- long handle
- Device Presentation:
- basic element
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Shape Of Signaling Unit Head:
- octagonal
- Mounting Diameter:
- 30 mm
- Nema Degree Of Protection:
- NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 4X || NEMA 6
- Electrical Shock Protection Class:
- class II IEC 61140
- Mechanical Durability:
- 500000 cycles
- Product Or Component Type:
- head for selector switch
- Product Certifications:
- UL 508 || NEMA
- Protective Treatment:
- TC
- Vibration Resistance:
- 7 gn 2-500 Hz)IEC 60068-2-6
- Toxic Heavy Metal Free:
- Yes
- Operator Position Information:
- 3 positions
- Size:
- 30 mm
- Operator Profile:
- black long handle
- Sustainable Offer Status:
- Green Premium product
- Product Compatibility:
- 9001KA1 side 1 or 2
- Contacts Type And Composition:
- without contact block
- China Rohs Regulation:
- X
- Reach Free Of Svhc:
- Yes
- Circularity Profile:
- N/A
- Range Of Product:
- Harmony 9001SK
- Ambient Air Temperature For Storage:
- -40-70 °C
- Warranty:
- 18 months
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Device Short Name:
- 9001SK
- Ip Degree Of Protection:
- IP66 IEC 60529
- Ambient Air Temperature For Operation:
- -25-70 °C
- Shock Resistance:
- 50 gn IEC 60068-2-27
- Environmental Disclosure:
- ENVPEP120820EN
- Rohs Exemption Information:
- Yes
- Net Weight:
- 0.059 kg
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Mercury Free:
- Yes
- Brochure:
- View
- Datasheet:
- View
