Schneider Electric 9001SKS63B 30Mm Selector Switch 3 Position
Schneider Electric
$81.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

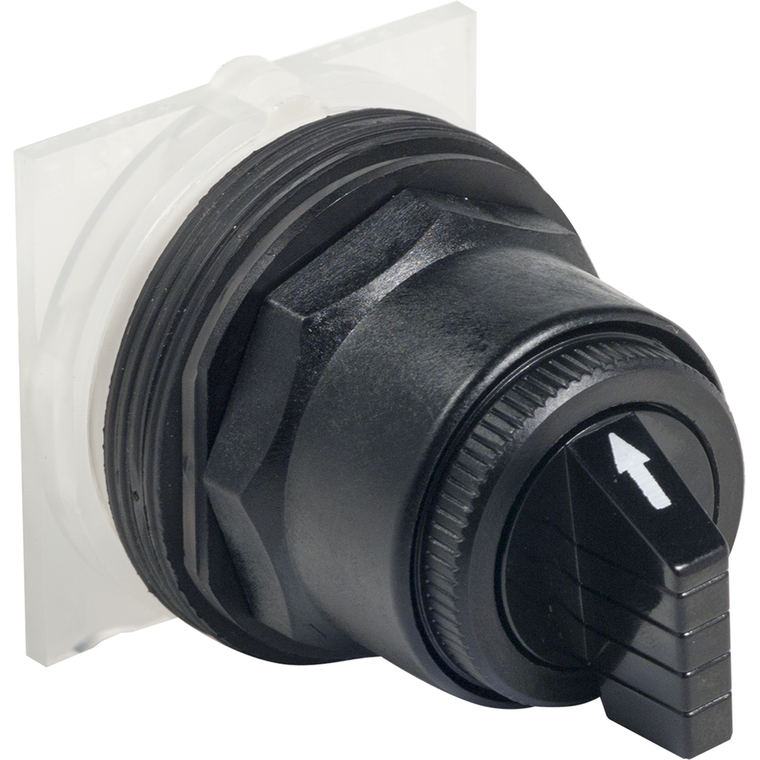

Schneider Electric 9001SKS63B 30Mm Selector Switch 3 Position
This Harmony 9001SK, black selector switch with C cam has 3 positions, operates with spring return from left to center position mechanism. It has a double insulated plastic bezel. This selector switch provides a versatile interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and is easily connected to control circuits. It provides an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
- Product Or Component Type:
- head for selector switch
- Mounting Diameter:
- 30 mm
- Device Presentation:
- basic element
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Protective Treatment:
- TC
- Ambient Air Temperature For Storage:
- -40-70 °C
- Sustainable Offer Status:
- Green Premium product
- Warranty:
- 18 months
- Reach Free Of Svhc:
- Yes
- Operator Position Information:
- 3 positions
- Electrical Shock Protection Class:
- class II IEC 61140
- Mercury Free:
- Yes
- Product Certifications:
- CSA LR24590 class 3211 03 || CE || UL listed file E42259 CCN NKCR
- Size:
- 30 mm
- Return:
- left to centre
- Circularity Profile:
- N/A
- Device Short Name:
- 9001SK
- Cam Profile:
- 3
- Contacts Type And Composition:
- without contact block
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- China Rohs Regulation:
- X
- Rohs Exemption Information:
- Yes
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Bezel Material:
- plastic
- Nema Degree Of Protection:
- NEMA 1/2/3/3R/4/4X/6/12/13
- Type Of Operator:
- spring return
- Operator Profile:
- standard handle
- Range Of Product:
- Harmony 9001SK
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Toxic Heavy Metal Free:
- Yes
- Ambient Air Temperature For Operation:
- -25-70 °C
- Ip Degree Of Protection:
- IP66 IEC 60529
- Environmental Disclosure:
- ENVPEP120820EN
- Cap/Operator Or Lens Colour:
- black
- Brochure:
- View
- Datasheet:
- View
