Schneider Electric 9001SKS88B 30Mm Selector Switch 4 Position

Schneider Electric 9001SKS88B 30Mm Selector Switch 4 Position

Schneider Electric
SKU:
9001SKS88B
|
UPC:
3.38912E+12
Availability:
Contact us to confirm availability and lead times.
$52.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description

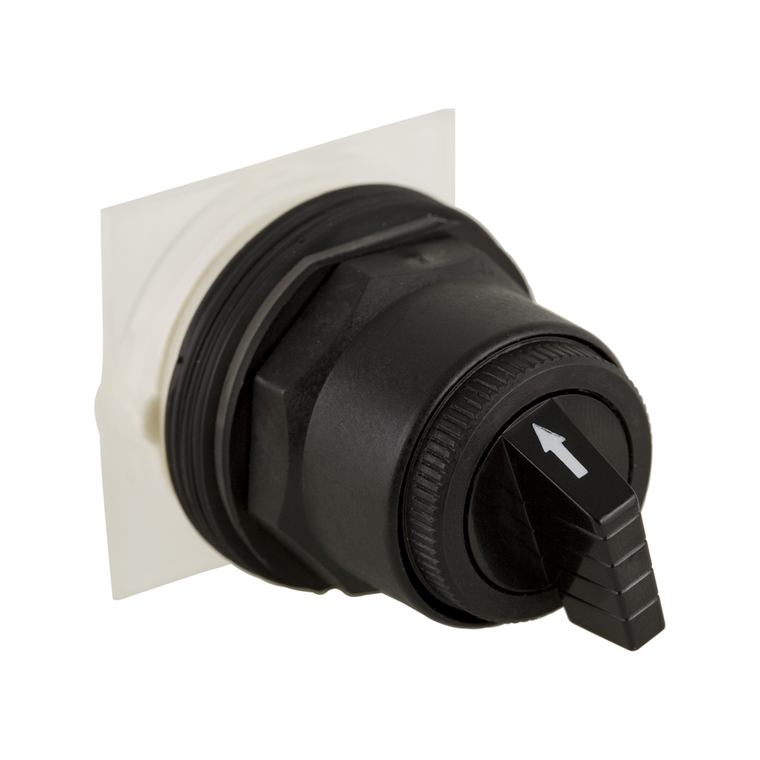

This Harmony 9001SK, black selector switch with H cam has 4-positions, operates with a stay-put mechanism. It has a double insulated plastic bezel. This selector switch provides a versatile interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and is easily connected to control circuits. It provides an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.

Additional Information
China Rohs Regulation:
X
Toxic Heavy Metal Free:
Yes
Ambient Air Temperature For Operation:
-25-70 °C
Type Of Operator:
stay put
Cam Profile:
8
Device Short Name:
9001SK
Device Presentation:
basic element
Nema Degree Of Protection:
NEMA 1/2/3/3R/4/4X/6/12/13
Operator Profile:
black standard knob
Contacts Type And Composition:
without contact block
Cap/Operator Or Lens Colour:
black
Operator Profile:
standard handle
Reach Free Of Svhc:
Yes
Mounting Diameter:
30 mm
Protective Treatment:
TC
Sustainable Offer Status:
Green Premium product
Ip Degree Of Protection:
IP66 IEC 60529
Product Certifications:
CSA LR24590 class 3211 03 || UL listed file E42259 CCN NKCR || CE
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Bezel Material:
plastic
Electrical Shock Protection Class:
class II IEC 61140
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Size:
30 mm
Mercury Free:
Yes
Product Compatibility:
9001KA1 side 1 or 2
Ambient Air Temperature For Storage:
-40-70 °C
Product Or Component Type:
head for selector switch
Operator Position Information:
4 positions
Warranty:
18 months
Rohs Exemption Information:
Yes
Range Of Product:
Harmony 9001SK
California Proposition 65:
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Circularity Profile:
N/A
Environmental Disclosure:
ENVPEP120820EN
Brochure:
View
Datasheet:
View
