Schneider Electric 9001SKT35LRR9 Pilot Light 28V 30Mm Sk +Options

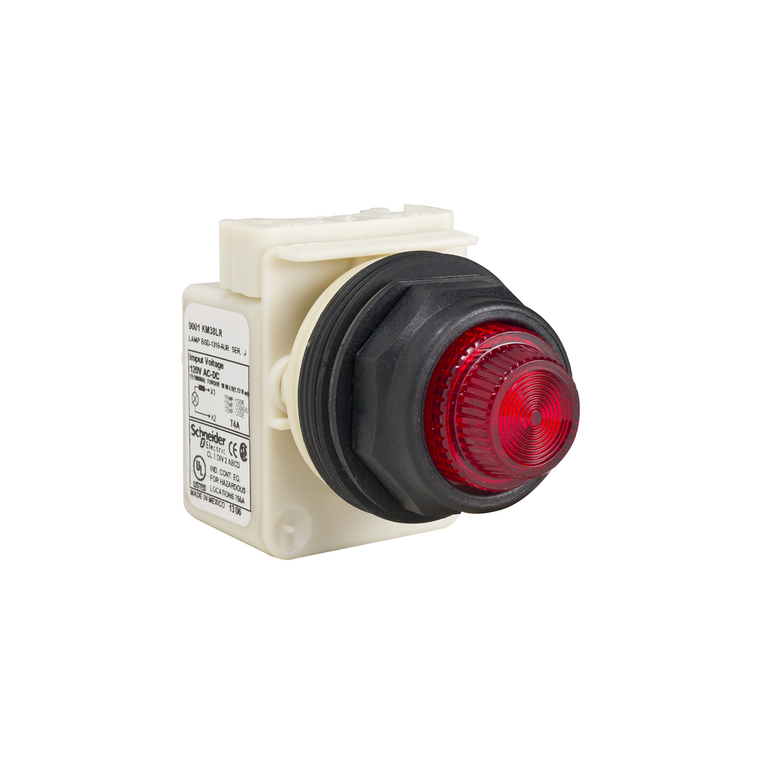

This illuminated red push-to-test pilot light with integral LED provides an ergonomic and visual interface for your machines It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color It works at a rated voltage of 28V. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections High performance International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 4X, 12 and 13)
- Cad Overall Width:
- 54 mm
- Product Or Component Type:
- push-to-test pilot light
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Short-Circuit Protection:
- 10 A cartridge fuse EN/IEC 60947-5-1
- Cad Overall Depth:
- 42 mm
- Nema Degree Of Protection:
- NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 4X
- [Us] Rated Supply Voltage:
- 24...28 V
- Vibration Resistance:
- 7 gn 2-500 Hz)IEC 60068-2-6
- Environmental Disclosure:
- ENVPEP121113EN
- Product Certifications:
- NEMA || UL 508
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Electrical Shock Protection Class:
- class II IEC 61140
- Mercury Free:
- Yes
- Warranty:
- 18 months
- [Ui] Rated Insulation Voltage:
- 250 V 2)EN/IEC 60947-1
- Lens Type:
- domed
- Size:
- 30 mm
- Mounting Diameter:
- 30 mm
- Operating Mode:
- push-to-test
- [Us] Rated Supply Voltage:
- 24...28 V AC/DC
- Light Source:
- Red LED
- Light Source:
- LED
- Circularity Profile:
- ENVEOLI121109EN
- Protective Treatment:
- TC
- Ambient Air Temperature For Storage:
- -40-70 °C
- Reach Free Of Svhc:
- Yes
- Shape Of Screw Head:
- cross slotted
- Range Of Product:
- Harmony 9001SK
- Toxic Heavy Metal Free:
- Yes
- Cad Overall Height:
- 70 mm
- [Ith] Conventional Free Air Thermal Current:
- 0.416666666666667
- China Rohs Regulation:
- X
- Lens Type:
- domed plastic
- Sustainable Offer Status:
- Green Premium product
- Connections - Terminals:
- screw clamp terminals, 1 x 0.22...2 x 1.5 mm² EN/IEC 60947-1
- Operating Position:
- any position
- Ip Degree Of Protection:
- IP66 IEC 60529
- Contacts Type And Composition:
- 1 C/O
- Net Weight:
- 0.181 kg
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Rohs Exemption Information:
- Yes
- Cap/Operator Or Lens Colour:
- red
- Bezel Material:
- plastic
- Lens Material:
- polycarbonate
- Light Block Supply:
- direct 24...28 V AC/DC
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Light Source Colour:
- red
- [Uimp] Rated Impulse Withstand Voltage:
- 2.5 kV EN/IEC 60947-1
- Device Short Name:
- 9001SK
- Ambient Air Temperature For Operation:
- -25-70 °C
- Shock Resistance:
- 50 gn IEC 60068-2-27
- Standards:
- UL 508 || JIS C 852 || EN/IEC 60947-5-1 || JIS C8201-5-1 || EN/IEC 60947-5-4 || EN/IEC 60947-1 || CSA C22.2 No 14 || JIS C8201-1
- Bulb Base:
- BA 9s
- Tightening Torque:
- 0.8-0.8 N.m EN/IEC 60947-1
- Shape Of Signaling Unit Head:
- round
