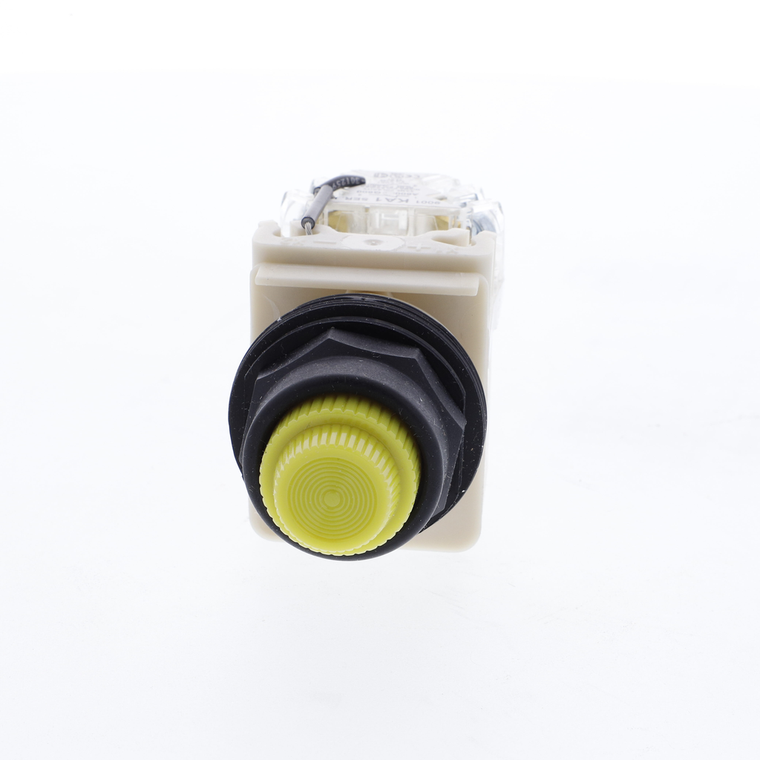

Schneider Electric 9001SKT35LYY31 Pilot Light 28V 30Mm Sk +Options
SKU:
9001SKT35LYY31
UPC:
785901632443
MPN:
Condition:
New
Short-Circuit Protection:
10 A cartridge fuse IEC 60947-5-1
Lens Material:
polycarbonate
Nema Degree Of Protection:
NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 4X
Electrical Shock Protection Class:
class II IEC 61140
Reach Free Of Svhc:
Yes
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Ip Degree Of Protection:
IP66 IEC 60529
Operating Mode:
push-to-test
Mounting Diameter:
30 mm
Ambient Air Temperature For Storage:
-40-70 °C
Operating Position:
any position
Range Of Product:
Harmony 9001SK
Toxic Heavy Metal Free:
Yes
Standards:
UL 508 || IEC 60947-5-1 || JIS C8201-5-1 || CSA C22.2 No 14 || JIS C 852 || IEC 60947-5-4 || IEC 60947-1 || JIS C8201-1
Contacts Type And Composition:
1 C/O
Protective Treatment:
TC
Cap/Operator Or Lens Colour:
yellow
[Ith] Conventional Free Air Thermal Current:
0.416666666666667
China Rohs Regulation:
X
[Ui] Rated Insulation Voltage:
250 V 2)IEC 60947-1
Ambient Air Temperature For Operation:
-25-70 °C
Sustainable Offer Status:
Green Premium product
California Proposition 65:
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
[Us] Rated Supply Voltage:
24...28 V AC/DC
Bezel Material:
plastic
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Warranty:
18 months
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Rohs Exemption Information:
Yes
Size:
30 mm
Cad Overall Depth:
42 mm
Light Block Supply:
direct 24...28 V AC/DC
Circularity Profile:
ENVEOLI121109EN
Device Short Name:
9001SK
[Uimp] Rated Impulse Withstand Voltage:
2.5 kV IEC 60947-1
[Us] Rated Supply Voltage:
24...28 V
Mercury Free:
Yes
Product Certifications:
NEMA || UL 508
Shape Of Screw Head:
cross slotted
Environmental Disclosure:
ENVPEP121113EN
Light Source:
LED
Shock Resistance:
50 gn IEC 60068-2-27
Light Source:
Yellow LED
Cad Overall Width:
54 mm
Light Source Colour:
yellow
Net Weight:
0.181 kg
Bulb Base:
BA 9s
Cad Overall Height:
70 mm
Shape Of Signaling Unit Head:
round
Connections - Terminals:
screw clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1
