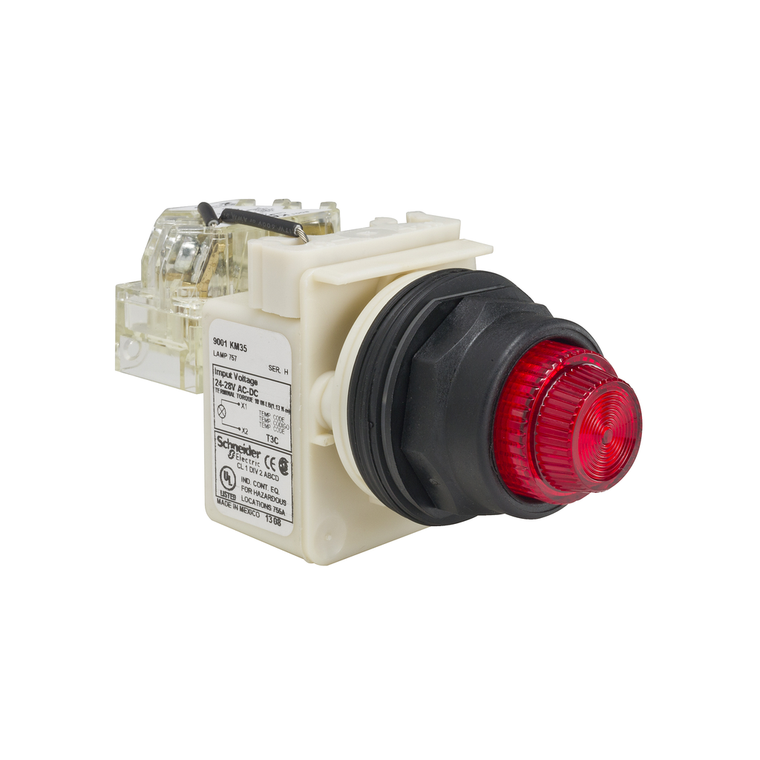

Schneider Electric 9001SKT35R31 Pilot Light 28V 30Mm Sk +Options
Schneider Electric
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
The 9001SK push button line has a large variety of operators and accessories for heavy industry applications. These operators are used in the petrochemical, metallurgy, mining, oil and gas, wastewater treatment and automotive manufacturing industries and more. Type SK operators have a plastic operator that mounts in a 1.18 inch round hole. This push-to-test pilot light has a plastic ring nut. By pushing on the pilot light lens, you can determine if the pilot light lamp is still working. This push-to-test pilot light has a 24-28 VAC/VDC full voltage light module with an incandencent lamp to provide the illumination. This operator has one 9001KA1 contact block mounted on the back. The contact block has one normally open and one normally closed contact. Contact block has a UL Type A600, UL Type Q600 and a 10A resistive VAC rating. The contacts in this contact block are double break direct acting. Contact block and light module will accept up to two 12AWG to 24 AWG solid or stranded wires. The contact block and light module terminals are protected to meeting VDE 0106 Part 100. This push-to-test pilot light has an red plastic fresnel pilot light lens When properly installed this opertor is UL listed for Types 1, 2, 3, 3R, 4, 4X, 6, 12 and 13 environments. This operator is UL Listed and CSA certified.
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Product Or Component Type:
- push-to-test pilot light
- Shape Of Signaling Unit Head:
- round
- Rohs Exemption Information:
- Yes
- China Rohs Regulation:
- X
- Environmental Disclosure:
- ENVPEP121120EN
- Lens Type:
- fresnel
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Sustainable Offer Status:
- Green Premium product
- Contacts Type And Composition:
- 1 C/O
- Toxic Heavy Metal Free:
- Yes
- Warranty:
- 18 months
- Lens Material:
- polycarbonate
- Protective Treatment:
- TC
- Circularity Profile:
- N/A
- Light Block Supply:
- full voltage 24 V || full voltage 28 V
- Light Source:
- incandescent bulb
- [Us] Rated Supply Voltage:
- 24...28 V
- Reach Free Of Svhc:
- Yes
- Bulb Base:
- BA 9s
- Mounting Diameter:
- 30 mm
- Lens Type:
- fresnel plastic
- Mercury Free:
- Yes
- Cap/Operator Or Lens Colour:
- red
- Light Block Supply:
- full voltage
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Size:
- 30 mm
- Range Of Product:
- Harmony 9001SK
- Ip Degree Of Protection:
- IP66
- Bezel Material:
- plastic
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Operating Mode:
- push-to-test
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
- QN-QUOTE-REQUEST:
- true
