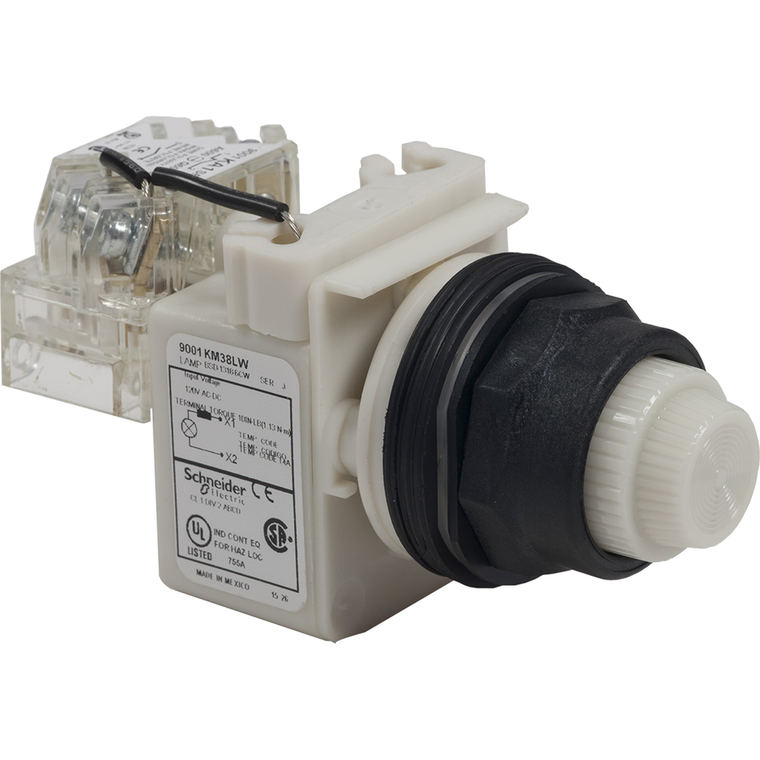

Schneider Electric 9001SKT38LW Pilot Light 120V 30Mm Type Sk+Opt
Schneider Electric
$185.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric 9001SKT38LW Pilot Light 120V 30Mm Type Sk+Opt
This illuminated white push-to-test pilot light with integral LED provides an ergonomic and visual interface for your machines It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits High performance International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 4X, 12 and 13)
- Tightening Torque:
- 0.8-0.8 N.m EN/IEC 60947-1
- Warranty:
- 18 months
- Environmental Disclosure:
- ENVPEP121113EN
- Sustainable Offer Status:
- Green Premium product
- Product Certifications:
- UL 508 || NEMA
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Net Weight:
- 0.181 kg
- Light Source:
- White LED
- Bulb Base:
- BA 9s
- Shape Of Screw Head:
- cross slotted
- Cad Overall Depth:
- 42 mm
- Operating Mode:
- push-to-test
- Mercury Free:
- Yes
- Light Source Colour:
- white
- Cad Overall Height:
- 70 mm
- Product Or Component Type:
- head for push-to-test pilot light
- Shape Of Signaling Unit Head:
- round
- Electrical Shock Protection Class:
- class II IEC 61140
- Connections - Terminals:
- screw clamp terminals, 1 x 0.22...2 x 1.5 mm² EN/IEC 60947-1
- [Ith] Conventional Free Air Thermal Current:
- 0.416666666666667
- Protective Treatment:
- TC
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Ip Degree Of Protection:
- IP66 IEC 60529
- Shock Resistance:
- 50 gn IEC 60068-2-27
- Range Of Product:
- Harmony 9001SK
- Operating Position:
- any position
- Cad Overall Width:
- 54 mm
- [Us] Rated Supply Voltage:
- 120 V
- [Ui] Rated Insulation Voltage:
- 250 V 2)EN/IEC 60947-1
- Mounting Diameter:
- 30 mm
- Device Short Name:
- 9001SK
- Bezel Material:
- plastic
- Rohs Exemption Information:
- Yes
- Cap/Operator Or Lens Colour:
- without cap
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Contacts Type And Composition:
- 1 C/O
- Nema Degree Of Protection:
- NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 4X
- [Uimp] Rated Impulse Withstand Voltage:
- 2.5 kV EN/IEC 60947-1
- Short-Circuit Protection:
- 10 A cartridge fuse EN/IEC 60947-5-1
- Reach Free Of Svhc:
- Yes
- Size:
- 30 mm
- Light Source:
- LED
- Ambient Air Temperature For Storage:
- -40-70 °C
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Ambient Air Temperature For Operation:
- -25-70 °C
- Standards:
- UL 508 || JIS C 852 || JIS C8201-5-1 || EN/IEC 60947-5-4 || EN/IEC 60947-1 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-1
- Light Block Supply:
- direct 120 V AC/DC
- Circularity Profile:
- ENVEOLI121109EN
- China Rohs Regulation:
- X
- Toxic Heavy Metal Free:
- Yes
- Vibration Resistance:
- 7 gn 2-500 Hz)IEC 60068-2-6
- [Us] Rated Supply Voltage:
- 120 V AC/DC
