Schneider Electric 9002AW13 Foot Switch 600Vac .6Amp +Options
Schneider Electric
$575.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric 9002AW13 Foot Switch 600Vac .6Amp +Options

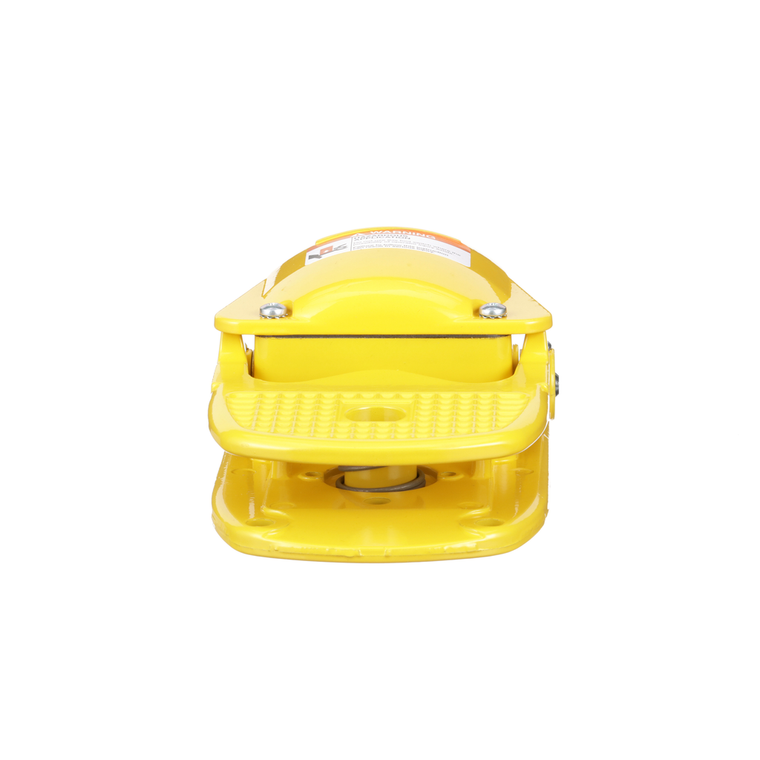

9002AW NEMA industrial foot switches are heavy duty devices to be used to control many industrial processes, while leaving the operator's hands free to perform other functions. The type or model of foot switch suitable for each application will vary depending on many factors. This foot switch has no shielding. The two pole double throw snap switch used for this foot switch contact is rated at 0.6A resistive at 600 VAC. For other contact ratings, refer to the catalog. The double pole double throw snap switch contains two electrically separated sets of contact elements allowing use on circuits of opposite polarity. Foot switch has an enclosure rating of NEMA 2, 4 and 13. The cable entry for this foot switch has a 0.75 inch NPT conduit tread. Foot switch is UL listed and CSA certified.
- Sustainable Offer Status:
- Green Premium product
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Height:
- 99 mm
- Mercury Free:
- Yes
- Product Or Component Type:
- foot switch
- Width:
- 114 mm
- Warranty:
- 18 months
- China Rohs Regulation:
- X
- Cable Entry:
- 0.75 inch NPT conduit entrance
- Environmental Disclosure:
- ENVPEP121009EN
- Circularity Profile:
- N/A
- Switch Function:
- DPDT
- Range Of Product:
- 9002AW
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Nema Degree Of Protection:
- NEMA 2/4/13
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Depth:
- 216 mm
- Product Certifications:
- UL Listed || CSA
- Contact Operation:
- 1 step
- Device Composition:
- unshielded
- [Ue] Rated Operational Voltage:
- 600 V AC/DC
- Rohs Exemption Information:
- Yes
- Type Of Operator:
- spring return
- Catalog:
- View
- Datasheet:
- View
