Description

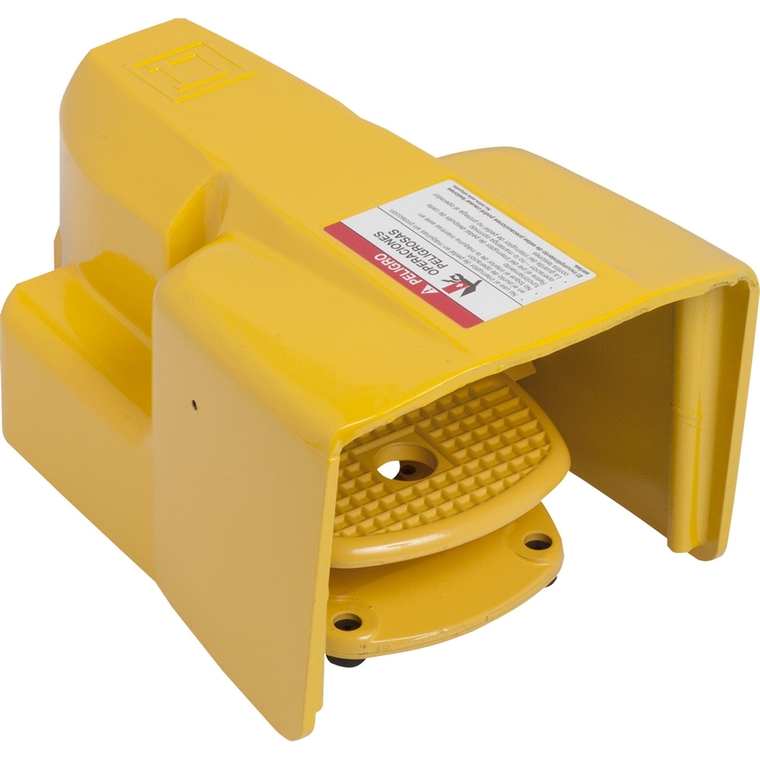

9002AW NEMA industrial foot switches are heavy duty devices to be used to control many industrial processes, while leaving the operator's hands free to perform other functions. The type or model of foot switch suitable for each application will vary depending on many factors. This foot switch has oversized pedal and side shields. The two pole double throw snap switch used for this foot switch contact is rated at 0.6A resistive at 600 VAC. For other contact ratings, refer to the catalog. The double pole double throw snap switch contains two electrically separated sets of contact elements allowing use on circuits of opposite polarity. Foot switch has an enclosure rating of NEMA 2, 4 and 13. The cable entry for this foot switch has a 0.75 inch NPT conduit tread. Foot switch is UL listed and CSA certified. Foot switch is UL listed and CSA certified.
Additional Information
Cable Entry:
0.75 inch NPT conduit entrance
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
China Rohs Regulation:
X
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Range Of Product:
9002AW
Rohs Exemption Information:
Yes
Switch Function:
DPDT
Environmental Disclosure:
ENVPEP121009EN
Circularity Profile:
N/A
Height:
159 mm
California Proposition 65:
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
Mercury Free:
Yes
Sustainable Offer Status:
Green Premium product
Device Composition:
oversized pedal shield || side shield
Contact Operation:
1 step
Type Of Operator:
spring return
Product Certifications:
UL Listed || CSA
Depth:
217 mm
Width:
163 mm
Nema Degree Of Protection:
NEMA 2/4/13
Warranty:
18 months
Product Or Component Type:
foot switch
[Ue] Rated Operational Voltage:
600 V AC/DC
