Schneider Electric 9002AW6 Foot Switch 600Vac 5Amp +Options

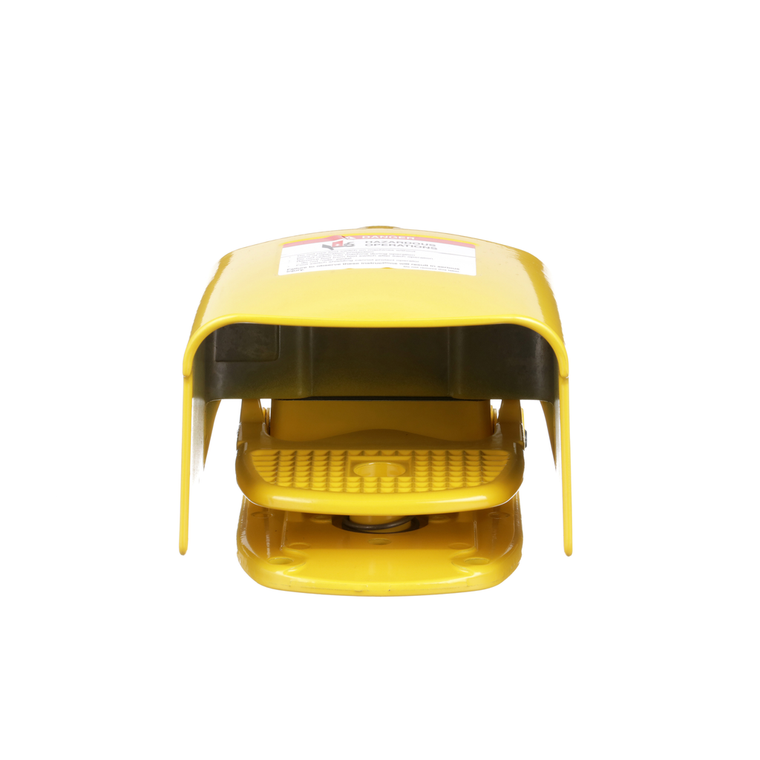

9002AW NEMA industrial foot switches are heavy duty devices to be used to control many industrial processes, while leaving the operator's hands free to perform other functions. The type or model of foot switch suitable for each application will vary depending on many factors. This foot switch has pedal and side shields. It has a mechanical latch in first stage. A single pole double throw snap switch is used for each stage of this two stage foot switch and the contacts are rated at 5A resistive at 600 VAC. For other contact ratings, refer to the catalog. The snap switch for each stage contains two double break contact elements (1 N.O. and 1 N.C.) that must be used on circuits of same polarity. Foot switch has an enclosure rating of NEMA 2, 4 and 13. The cable entry for this foot switch has a 0.75 inch NPT conduit tread. Foot switch is UL listed and CSA certified.
- Depth:
- 229 mm
- Cable Entry:
- 0.75 inch NPT conduit entrance
- [Ue] Rated Operational Voltage:
- 600 V AC/DC
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information:
- Yes
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Product Or Component Type:
- foot switch
- Warranty:
- 18 months
- Nema Degree Of Protection:
- NEMA 2/4/13
- Mercury Free:
- Yes
- Height:
- 123 mm
- China Rohs Regulation:
- X
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Switch Function:
- SPDT per step
- Width:
- 137 mm
- Circularity Profile:
- N/A
- Type Of Operator:
- spring return
- Range Of Product:
- 9002AW
- Sustainable Offer Status:
- Green Premium product
- Environmental Disclosure:
- ENVPEP121009EN
- Contact Operation:
- 2 steps
- Device Composition:
- side shield || pedal shield
- Product Certifications:
- UL Listed || CSA
