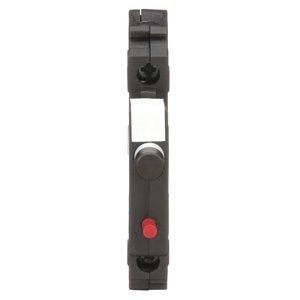

Schneider Electric 9080GCB05 Circuit Protector 250V 0.5Amp Type Nema

(No reviews yet) Write a Review

Write a Review

Schneider Electric 9080GCB05 Circuit Protector 250V 0.5Amp Type Nema

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

9080GCB05

UPC:

785901481102

MPN:

Condition:

New

Mercury Free:

Yes

Reach Free Of Svhc:

Yes

Standards:

UL 1077 || DIN 57470 || CSA C22.2 No 235

[Ue] Rated Operational Voltage:

250 V AC || 65 V DC

Product Or Component Type:

Circuit Protector

Width:

3.15 in

Protection Type:

overcurrent

Line Rated Current:

0.5 A

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Contact Operation:

trip-free

Warranty:

18 months

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Temperature For Tripping:

70 °F

Eu Rohs Directive:

Compliant with Exemptions

Awg Gauge:

AWG 16...AWG 10 copper

Rohs Exemption Information:

Yes

Product Certifications:

CSA file 025490 class 3211 07 || UL recognized E233026 CCN QVNU2 || CE

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Tightening Torque:

control circuit 7-7 lbf.in cage type connector

Mounting Support:

9080GH track || 35 mm DIN rail

Wire Stripping Length:

0.5 in

Trip Unit Technology:

thermal-magnetic

Height:

3.45 in

Depth:

0.5 in

Electrical Connection:

box lugs

Device Application:

Industrial Application

Range Of Product:

9080GCB

Poles Description:

1P

Ambient Air Temperature For Operation:

-22-140 °F

Wiring Device Additional Information:

factory wiring only
