Schneider Electric 9999D20 Contactor Aux Contact Kit 600Vac 5Amp T
Schneider Electric
Schneider Electric 9999D01 Contactor Aux Contact Kit 600Vac 5Amp T
Schneider Electric
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies

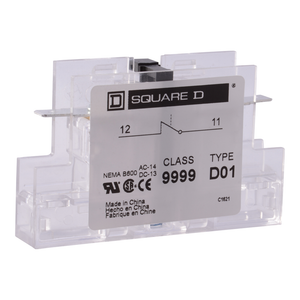

Auxiliary contact module is for Series B versions of the 8910DPA definite purpose contactors, 8911DPS definite purpose starters or 8965 reversing hoist contactors. Contact module has 1 normally closed contact for 50 to 90 A definite purpose contactors. Auxiliary contact module has a NEMA B600 contact rating with a maximum voltage rating of 600VAC. Contact modules are UL component recognized and CSA certified.
- Warranty:
- 18 months
- Product Certifications:
- CSA || UL Recognized
- Product Destination:
- contactor
- Auxiliary Contact Composition:
- 1 NC
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Product Or Component Type:
- Auxiliary Contact Module
- Rated Breaking Capacity:
- 3 A 120 V AC inductive control circuit UL 508 || 1.5 A 240 V AC inductive control circuit UL 508 || 0.75 A 480 V AC inductive control circuit UL 508 || 0.6 A 600 V AC inductive control circuit UL 508 || 5 A <= 600 V AC resistive control circuit UL 50
- Mercury Free:
- Yes
- Range Of Product:
- DPA
- Rohs Exemption Information:
- Yes
- Eu Rohs Directive:
- Compliant with Exemptions
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Catalog:
- View
- Datasheet:
- View
- QN-QUOTE-REQUEST:
- true
