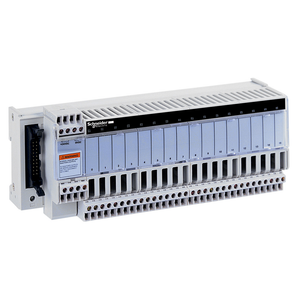

Schneider Electric ABE7R16S111 Bas Rel Em W5 16O 1C C/8

Schneider Electric ABE7R16S111 Bas Rel Em W5 16O 1C C/8

Schneider Electric
SKU:
ABE7R16S111
|
UPC:
3389110545272
Availability:
Contact us to confirm availability and lead times.
$561.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This product is part of the Modicon ABE7 range, an offer of connection sub bases for Telefast pre-wired system. This soldered electromechanical relay sub base offers 16 channels with 1 terminal per channel. The input sub base offers a rated supply voltage of 24V DC for PLC end and NO contact for pre actuator end. It is furnished with removable terminal block. It is an IP2x rated product. Its dimensions are 125mm (width) x 58mm (depth) x 77mm (height). It weighs 0.405kg. It is suitable for all types of industrial applications. This product is certified by DNV, UL, CSA, GL, BV, LROS and EAC. The fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). The Modicon ABE7 means greater simplicity to rationalize wiring in automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.
Additional Information
Tightening Torque:
0.6 N.m flat Ø 3.5 mm
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Ambient Air Temperature For Storage:
-40-80 °C IEC 61131-2
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Current Per Channel:
2 A preactuator end
Resistance To Radiated Fields:
10 V/m 26000000-1000000000 Hz)IEC 61000-4-3 level 3
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Environmental Disclosure:
ENVPEP121229EN
Operating Time:
<= 10 ms coil energisation and NO closing || <= 6 ms coil de-energisation and NO opening
Product Certifications:
DNV || UL || CSA || GL || EAC
Warranty:
18 months
Rohs Exemption Information:
Yes
Dielectric Strength:
2000 V IEC 60947-1
Maximum Switching Voltage:
250 V AC 50/60 Hz IEC 60947-5-1 || 30 V DC IEC 60947-5-1
Electrical Durability:
500000 cycles 200 mA 24 V DC-13 10 ms preactuator end) || 500000 cycles 400 mA 230 V AC-15 preactuator end) || 500000 cycles 600 mA 230 V AC-12 preactuator end) || 500000 cycles 600 mA 24 V DC-12 preactuator end)
Contacts Type And Composition:
1 NO preactuator end
Maximum Power Dissipation Per Channel In W:
0.22 W PLC end)
Drop-Out Voltage:
2.4 V 20 °C PLC end)
Operating Rate In Hz:
10 Hz no load || 0.5 Hz at Ie
Resistance To Incandescent Wire:
750 °C 30 s IEC 60695-2-11
Sustainable Offer Status:
Green Premium product
Shock Resistance:
15 gn 11 ms IEC 60068-2-27
Depth:
58 mm
Ip Degree Of Protection:
IP2X conforming to IEC 60529
Number Of Terminal Per Channel:
1
Electrical Reliability:
0.00000001
Ambient Air Temperature For Operation:
-5-60 °C IEC 61131-2
Max Immunity To Microbreaks:
5 ms
China Rohs Regulation:
X
Mercury Free:
Yes
Width:
125 mm
Height:
77 mm
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Switching Frequency:
<= 10 Hz || <= 0.5 Hz
[Ui] Rated Insulation Voltage:
2000 V
Maximum Current Per Output Common:
0
Range Of Product:
Modicon ABE7
[Uimp] Rated Impulse Withstand Voltage:
2.5 kV IEC 60947-1
Terminal Block Type:
removable
Net Weight:
0.405 kg
Mechanical Durability:
20000000 cycles
Number Of Channels:
16
Drop-Out Current:
0.5 mA 20 °C
Product Or Component Type:
electromechanical output relay sub-base
Pollution Degree:
2 IEC 60664-1
Minimum Switching Current:
1 mA >= 5 V
Threshold Tripping Voltage:
19.2 V 40 °C
Contact Bounce Time:
<= 5 ms 1 NO
Installation Category:
II IEC 60664-1
Protective Treatment:
TC
Fixing Mode:
by clips 35 mm symmetrical DIN rail) || by screws solid plate with fixing kit)
[Us] Rated Supply Voltage:
24 V DC PLC end
Circularity Profile:
ENVEOLI1212029EN
Resistance To Fast Transients:
2 kV level 3 IEC 61000-4-4
Number Of Channel Per Common:
8
Polarity Distribution:
polarity distribution contact common per group of 8 channels
