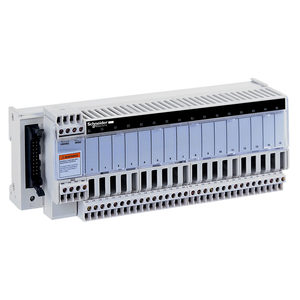

Schneider Electric ABE7R16S212 Bas Rel Em W10 16O 1C Com

(No reviews yet) Write a Review

Write a Review

Schneider Electric ABE7R16S212 Bas Rel Em W10 16O 1C Com

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ABE7R16S212

UPC:

3.38911E+12

MPN:

Condition:

New

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Circularity Profile:

ENVEOLI1212029EN

Contact Bounce Time:

<= 5 ms 1 NO

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Maximum Switching Voltage:

250 V AC 50/60 Hz IEC 60947-5-1 || 30 V DC IEC 60947-5-1

Installation Category:

II IEC 60664-1

China Rohs Regulation:

X

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Rohs Exemption Information:

Yes

Current Per Channel:

5 A preactuator end

Ambient Air Temperature For Storage:

-40-80 °C IEC 61131-2

Resistance To Radiated Fields:

10 V/m 26000000-1000000000 Hz)IEC 61000-4-3 level 3

Dielectric Strength:

2000 V IEC 60947-1

Drop-Out Voltage:

2.4 V 20 °C PLC end)

Shock Resistance:

15 gn 11 ms IEC 60068-2-27

Resistance To Incandescent Wire:

750 °C 30 s IEC 60695-2-11

Warranty:

18 months

Tightening Torque:

0.6 N.m flat Ø 3.5 mm

Protective Treatment:

TC

Max Immunity To Microbreaks:

5 ms

Range Of Product:

Modicon ABE7

Mercury Free:

Yes

[Us] Rated Supply Voltage:

24 V DC PLC end

Drop-Out Current:

1 mA 20 °C

Width:

206 mm

Maximum Current Per Output Common:

0.416666666666667

Environmental Disclosure:

ENVPEP121229EN

Maximum Power Dissipation Per Channel In W:

0.36 W PLC end)

Number Of Terminal Per Channel:

2

Product Certifications:

UL || CSA || GL || DNV || EAC

Contacts Type And Composition:

1 NO preactuator end

Ambient Air Temperature For Operation:

-5-60 °C IEC 61131-2

Threshold Tripping Voltage:

19.7 V 40 °C

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Terminal Block Type:

removable

Product Or Component Type:

electromechanical output relay sub-base

Pollution Degree:

2 IEC 60664-1

Polarity Distribution:

common per group of 8 channels on both poles

Ip Degree Of Protection:

IP2X conforming to IEC 60529

Net Weight:

0.4 kg

Switching Frequency:

<= 0.5 Hz || <= 10 Hz

Electrical Durability:

500000 cycles 600 mA 24 V DC-13 10 ms preactuator end) || 500000 cycles 1500 mA 230 V AC-12 preactuator end) || 500000 cycles 1500 mA 24 V DC-12 preactuator end) || 500000 cycles 900 mA 230 V AC-15 preactuator end)

Number Of Channels:

16

Mechanical Durability:

20000000 cycles

Resistance To Fast Transients:

2 kV level 3 IEC 61000-4-4

Sustainable Offer Status:

Green Premium product

[Uimp] Rated Impulse Withstand Voltage:

2.5 kV IEC 60947-1

Fixing Mode:

by clips 35 mm symmetrical DIN rail) || by screws solid plate with fixing kit)

Electrical Reliability:

0.00000001

Minimum Switching Current:

10 mA >= 5 V

Operating Rate In Hz:

10 Hz no load || 0.5 Hz at Ie

Operating Time:

<= 10 ms coil energisation and NO closing || <= 5 ms coil de-energisation and NO opening

[Ui] Rated Insulation Voltage:

2000 V
