Schneider Electric

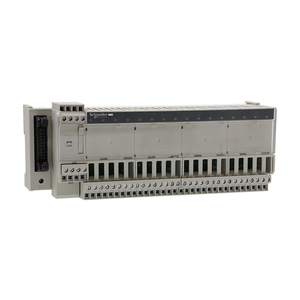

Schneider Electric ABE7S16S1B2 Bas Rel St W10 16O 0,5A

SKU:

ABE7S16S1B2

UPC:

3389110838862

MPN:

Condition:

New

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

China Rohs Regulation:

X

Maximum Switching Current:

700 mA DC-12 || 700 mA DC-13

Sustainable Offer Status:

Green Premium product

Voltage State 0 Guaranteed:

3.4 V PLC end

Response Time:

<= 0.1 ms from state 1 to 0 || <= 0.2 ms from state 0 to 1

Circularity Profile:

ENVEOLI1212029EN

[Us] Rated Supply Voltage:

24 V DC PLC end || 24 V DC preactuator end

Switching Frequency:

< 0.6/LI² Hz

Tightening Torque:

0.6 N.m flat Ø 3.5 mm

Terminal Block Type:

removable

Fault Indication:

without

Width:

125 mm

Installation Category:

II IEC 60664-1

Current State 1 Guaranteed:

3.1 mA PLC end)

Range Of Product:

Modicon ABE7

Ambient Air Temperature For Operation:

-5-60 °C IEC 61131-2

Maximum Residual Current:

0.5 mA preactuator end

Rohs Exemption Information:

Yes

Maximum Circuit Breaker Threshold:

0.75 A

Current Per Channel:

0.5 A preactuator end

Ip Degree Of Protection:

IP2X conforming to IEC 60529

Protective Treatment:

TC

Environmental Disclosure:

ENVPEP121229EN

Number Of Channels:

16

Current State 0 Guaranteed:

0.4 mA PLC end)

Voltage State 1 Guaranteed:

16.9 V PLC end

Relay Type:

soldered solid state relay

Drop-Out Voltage:

0.3 V preactuator end)

Minimum Switching Current:

1 mA

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Switchable Inductive Energy L/R:

<= 400(U.I) ms

Product Certifications:

GL || UL || DNV || CSA || EAC

Warranty:

18 months

Maximum Tungsten Load:

<10 W DC-6

Fault Type:

short-circuit || overload

Mercury Free:

Yes

Resistance To Incandescent Wire:

750 °C 30 s IEC 60695-2-11

Resistance To Radiated Fields:

10 V/m 26000000-1000000000 Hz)IEC 61000-4-3 level 3

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Ambient Air Temperature For Storage:

-40-80 °C IEC 61131-2

Resistance To Fast Transients:

2 kV level 3 IEC 61000-4-4

Net Weight:

0.4 kg

Maximum Current Per Output Common:

0.375

Isolation Plc/Operative Part:

no

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Pollution Degree:

2 IEC 60664-1

Shock Resistance:

15 gn 11 ms IEC 60068-2-27

Product Or Component Type:

solid state output relay sub-base

Fixing Mode:

by clips 35 mm symmetrical DIN rail) || by screws solid plate with fixing kit)

Datasheet:

View
