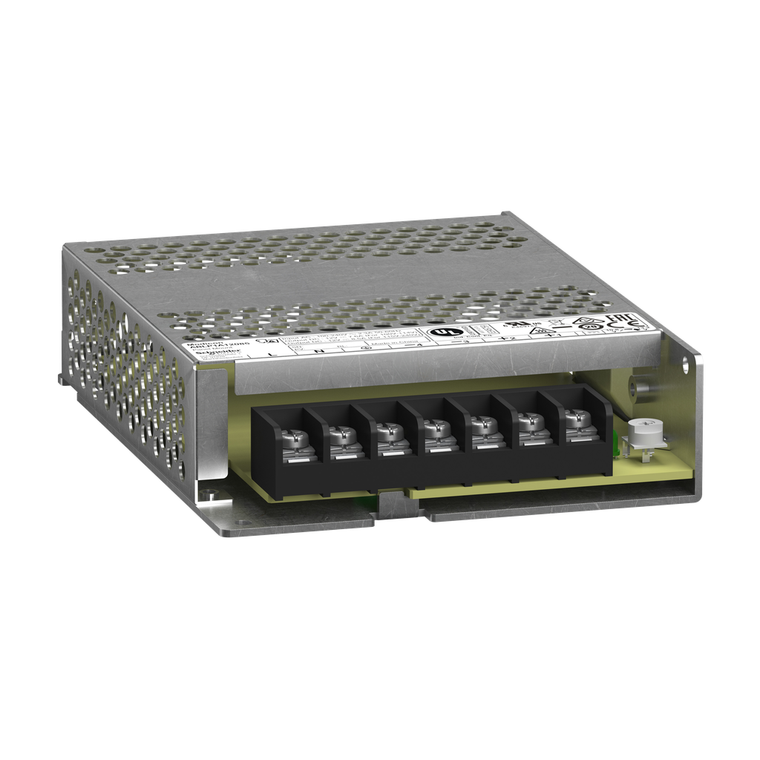

Schneider Electric ABLP1A12085 Power Supply 12V 8.5A Panel Mount

Schneider Electric ABLP1A12085 Power Supply 12V 8.5A Panel Mount

Schneider Electric
SKU:
ABLP1A12085
|
UPC:
3606481500274
Availability:
Contact us to confirm availability and lead times.
$113.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This Modicon ABLP regulated switch mode power supply (SMPS) supplies direct current voltage. It has a rated input of 100V to 240V AC, a rated output current of 8.5A at 12V DC and a rated power of 100W. It is ideal for supplying DC voltage necessary for automation equipment designed for applications in industrial, commercial and residential applications such as conveying, packaging, control, food & beverage, mining, oil & gas and water. It provides a protection against overloads and short-circuits with automatic restart after the source of overload/short-circuit has been corrected It has LED diagnostics indicator available in the front for troubleshooting instantly. Its width is 97mm, its height is 30mm, its depth is 129mm. It weighs 0.300kg. It is certified with CB-Scheme, cULus Listed, cURus recognized, RCM and EAC. It is a power supply for commercial use, panel mount; It is compatible with ABLPA01 mounting plate. It installs on panel on side or on base with mounting plate fixing by screw. ABLP power supplies bring energy to your automated systems. ABLP power supplies are designed for simple and repetitive machines, dedicated power supplies are particularly quality/price competitive due to their simplicity and compactness. The main applications to use Modicon ABLP power supply are lifts, display panels, escalators, carwash, foodstuff ovens, etc.
Additional Information
Maximum Leakage Current:
1 mA 240 V AC
Output Voltage:
12 V DC
Width:
97 mm
Current Consumption:
< 2.3 A 115 V AC || < 1.5 A 230 V AC
Pollution Degree:
2
Kw Rating:
100 W
Earthing System:
TN || TT || IT
Mounting Support:
top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || double-profile DIN rail || panel mounting
Range Of Product:
Modicon Power Supply
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Electromagnetic Compatibility:
immunity to electrostatic discharge - test level: 8 kV (contact discharge) conforming to IEC 61000-4-2 || immunity to electrostatic discharge - test level: 15 kV (air discharge) conforming to IEC 61000-4-2 || immunity to conducted RF disturbances - t
Connections - Terminals:
screw connection 0.75...2.5 mm², AWG 18...AWG 14) without wire end ferrule || screw connection 0.75...1.5 mm², AWG 18...AWG 16) with wire end ferrule
Rohs Exemption Information:
Yes
Ip Degree Of Protection:
IP10
Network Frequency Limits:
50-60 Hz
Operating Altitude:
5000 m
Output Voltage Limits:
10.8...13.2 V
Circularity Profile:
ENVEOLI2007017EN
Product Certifications:
CE || cULus || EAC || RCM || CB Scheme || KC
Power Factor:
0.55 at 115 V AC || 0.45 at 230 V AC
Power Supply Type:
regulated switch mode
Holding Time:
> 20 ms 115 V AC || > 40 ms 230 V AC
Dielectric Strength:
3750 V AC with input to output
Efficiency At Full Load:
90...264 V AC
Inrush Current:
45 A 115 V || 85 A 230 V
Efficiency:
88 % 230 V AC
Residual Ripple:
< 120 mV
China Rohs Regulation:
X
Net Weight:
0.3 kg
Depth:
129 mm
Standards:
IEC 62368-1 || IEC 61010-1 || EN 61010-2-201 || EN 61204-3 || IEC 61000-6-1 || IEC 61000-6-2 || IEC 61000-6-3 || IEC 61000-6-4 || IEC 61000-3-2 || EN 61000-3-3 || UL 62368-1 || UL 61010-1 || UL 61010-2-201 || CSA C22.2 No 62368-1 || CSA C22.2 No 6101
Output Protection Type:
against overload and short-circuits automatic reset || against over temperature manual reset || against overvoltage manual reset
Shock Resistance:
150 m/s² 11 ms
Electrical Shock Protection Class:
class I
Load Capacitance:
4000 µF
Power Supply Output Current:
8.5 A
Line And Load Regulation:
< 0.5 % network 0 to 100 % load at 25 °C || < 1 % network full voltage range in line at 25 °C
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Meantime Between Failure [Mtbf]:
700000 h at 25 °C, full load conforming to SR 332
Environmental Disclosure:
ENVPEP2007017EN
Status Led:
1 LED (Green) output voltage
Service Life:
10 year(s)
Supply:
SELV IEC 60950-1 || SELV IEC 60204-1 || SELV IEC 60364-4-41
Output Coupling:
parallel || serial
Power Dissipation In W:
21 W
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Enclosure Material:
Aluminum
Overvoltage Category:
II
Input Voltage:
100...240 V AC single phase
Mercury Free:
Yes
Vibration Resistance:
3 mm 2-9 Hz)IEC 60068-2-6 || 10 m/s² 9-200 Hz)IEC 60068-2-6
Input Protection Type:
integrated fuse (not interchangeable) 4 A
Height:
30 mm
Sustainable Offer Status:
Green Premium product
Ambient Air Temperature For Operation:
-30-50 °C without derating mounting position A, B, F, G < 6561.68 ft (2000 m) || 50-70 °C with current derating of 2 % per °C mounting position A, B, F, G < 6561.68 ft (2000 m)
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Product Or Component Type:
power supply
Response Time:
< 500 ms
Electromagnetic Emission:
conducted emissions IEC 61000-6-3 || radiated emissions IEC 61000-6-4
