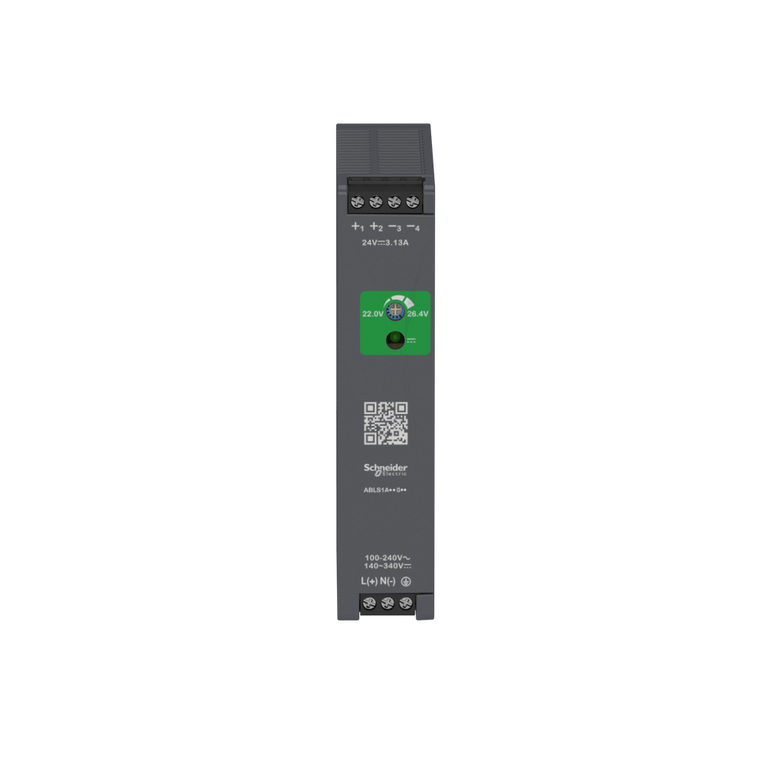

Schneider Electric ABLS1A24031 Power Supply 24V 3.1A 1Ph Optimized

Schneider Electric ABLS1A24031 Power Supply 24V 3.1A 1Ph Optimized

Schneider Electric
SKU:
ABLS1A24031
|
UPC:
3606481500205
$145.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This ABLS regulated switch mode power supply (SMPS) supplies direct current voltage. It has a rated input of 100V to 240V AC and 140 V to 340 V DC, a rated output current of 3,13A at 24V DC and a rated power output of 75W. It is ideal for supplying DC voltage necessary for automation equipment designed for applications in industrial, commercial and residential applications such as conveying, packaging, control, food & beverage, mining, oil & gas and water. It installs on omega rail or fixing by screw. Its width is 27mm, its height is 123,6mm, its depth is 102mm. It ensures a protection against overloads and short-circuits with automatic restart after the source of overload/short-circuit has been corrected. It weighs 0.220kg. It is a power supply for industrial use, rail mounting. It conforms to EN62368-1, ENIEC61010-1/2-201, ENIEC61204-3, EN61000-6-1/2/3/4, EN61000-3-2-3, UL62368-1, UL61010-2-201/-1-201, CSAC22.2No62368-1/No61010-2-201/No61010-1 standards, and certified by CE, CUL listed/recognized, RCM, CBscheme. The Acti9 iC60 range of Miniature Circuit Breakers is recommanded for its protection. The type of protection is 10A, C curve or 13A, B-curve. It has in the front face a LED indicating presence of DC output voltage, and a QR code for access to the latest technical documentation. Thanks to its book housing, it can be installed either in enclosures or industrial panels by clipping on omega (DIN) rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.
Additional Information
Electromagnetic Compatibility:
immunity to electrostatic discharge - test level: 8 kV (contact discharge) conforming to IEC 61000-4-2 || immunity to electrostatic discharge - test level: 15 kV (air discharge) conforming to IEC 61000-4-2 || immunity to conducted RF disturbances - t
Maximum Leakage Current:
1 mA 240 V AC
Output Coupling:
parallel || serial
Mercury Free:
Yes
Power Supply Output Current:
3.13 A
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Mounting Support:
top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || double-profile DIN rail
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Power Supply Type:
regulated switch mode
Status Led:
1 LED (Green) output voltage
Response Time:
< 1.2 s
Line And Load Regulation:
< 0.5 % network 0 to 100 % load at 25 °C || < 1 % network full voltage range in line at 25 °C
Connections - Terminals:
screw connection 0.5...2.5 mm², AWG 20...AWG 14) output || screw connection 0.75...2.5 mm², AWG 18...AWG 14) input
Input Voltage:
100...240 V AC single phase || 100...240 V AC phase to phase || 140...340 V DC
Width:
27 mm
Circularity Profile:
ENVEOLI2007005EN
Vibration Resistance:
3 mm 2-9 Hz)IEC 60068-2-6 || 10 m/s² 9-200 Hz)IEC 60068-2-6
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Electrical Shock Protection Class:
class I
Meantime Between Failure [Mtbf]:
700000 h at 25 °C, full load conforming to SR 332
Kw Rating:
75 W
Range Of Product:
Modicon Power Supply
Electromagnetic Emission:
conducted emissions IEC 61000-6-3 || radiated emissions IEC 61000-6-4
Output Voltage Limits:
21.6...26.4 V
Power Dissipation In W:
15 W
Pollution Degree:
2
Product Certifications:
CE || cUL Listed || cUL Recognized || RCM || CB Scheme || EAC || KC || NEC class 2
Efficiency At Full Load:
85...264 V AC without temperature derating || 120...375 V DC without temperature derating || 85…120 V DC with temperature derating
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Inrush Current:
40.0 A 115 V || 80.0 A 230 V
Height:
123.6 mm
Efficiency:
88 % 230 V AC
Service Life:
10 year(s)
Power Factor:
0.55 at 115 V AC || 0.45 at 230 V AC
Ip Degree Of Protection:
IP20
Load Capacitance:
5000 µF
China Rohs Regulation:
X
Holding Time:
> 20 ms 115 V AC || > 40 ms 230 V AC
Supply:
SELV IEC 60950-1 || SELV IEC 60204-1 || SELV IEC 60364-4-41
Residual Ripple:
< 120 mV
Product Or Component Type:
power supply
Depth:
102 mm
Dielectric Strength:
3000 V AC with input to output
Network Frequency Limits:
50-60 Hz
Environmental Disclosure:
ENVPEP2007005EN
Output Protection Type:
against overload and short-circuits automatic reset || against over temperature manual reset || against overvoltage manual reset
Operating Altitude:
< 5000 m
Enclosure Material:
Plastic
Net Weight:
0.22 kg
Sustainable Offer Status:
Green Premium product
Ambient Air Temperature For Operation:
-20--10 °C with current derating of 1 % per °C mounting position A < 6561.68 ft (2000 m) || -10-40 °C without derating mounting position A 115 V AC < 6561.68 ft (2000 m) || -10-50 °C without derating mounting position A 230 V AC < 6561.68 ft (200
Shock Resistance:
150 m/s² 11 ms
Rohs Exemption Information:
Yes
Output Voltage:
24 V DC
Standards:
IEC 62368-1 || EN/IEC 61010-1 || EN 61010-2-201 || EN/IEC 61204-3 || IEC 61000-6-1 || IEC 61000-6-2 || IEC 61000-6-3 || IEC 61000-6-4 || IEC 61000-3-2 || EN 61000-3-3 || UL 62368-1 || UL 61010-1 || UL 61010-2-201 || CSA C22.2 No 62368-1 || CSA C22.2
Input Protection Type:
integrated fuse (not interchangeable) 5 A || external protection (recommended) 20 A Curve C || external protection (recommended) 13 A Curve B || external protection (recommended) 10 A Curve C
Overvoltage Category:
II
Current Consumption:
< 1.8 A 115 V AC || < 1 A 230 V AC || < 0.8 A 140 V DC
Earthing System:
TN || TT || IT
