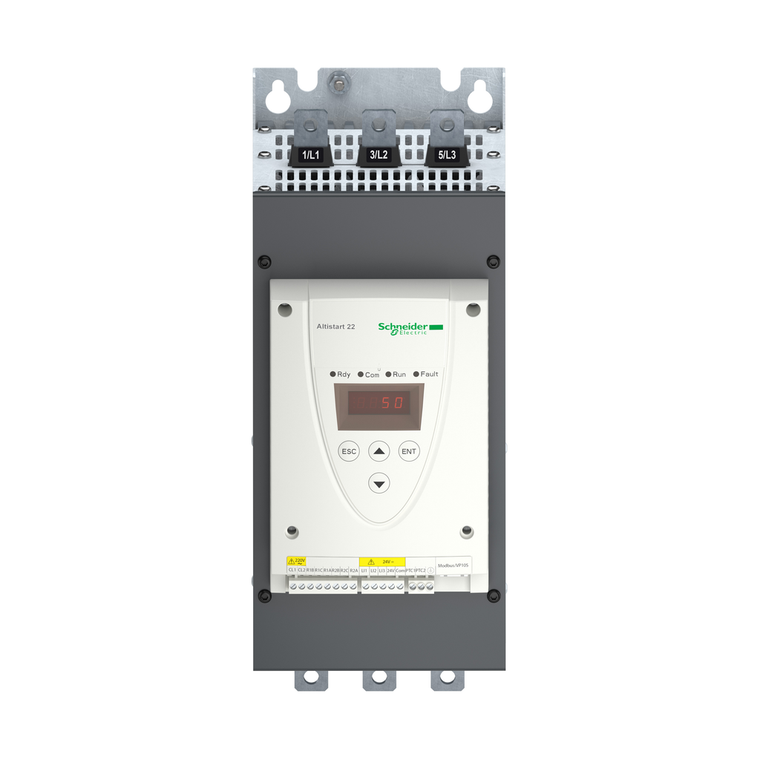

Schneider Electric ATS22C11Q Electronic Soft Starter Control 220V Pow Pack of 4

(No reviews yet) Write a Review

Write a Review

Schneider Electric ATS22C11Q Electronic Soft Starter Control 220V Pow Pack of 4

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ATS22C11Q

UPC:

3606480167249

MPN:

Condition:

New

Control Circuit Consumption:

20 W

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Electromagnetic Compatibility:

conducted and radiated emissions level A IEC 60947-4-2 || damped oscillating waves level 3 IEC 61000-4-12 || electrostatic discharge level 3 IEC 61000-4-2 || immunity to electrical transients level 4 IEC 61000-4-4 || immunity to radiated radio-electr

Net Weight:

18 kg

Utilisation Category:

AC-53A

Type Of Start:

start with torque control (current limited to 3.5 In)

Discrete Input Logic:

positive logic LI1, LI2, LI3 < 5 V <= 2 mA > 11 V, >= 5 mA

Pollution Degree:

level 2 IEC 60664-1

Ip Degree Of Protection:

IP20

Shock Resistance:

15 gn 11 ms IEC 60068-2-27

Connector Type:

1 RJ45

Maximum Switching Current:

5 A 250 V AC resistive 1 relay outputs || 5 A 30 V DC resistive 1 relay outputs || 2 A 250 V AC inductive 0.4 20 ms relay outputs || 2 A 30 V DC inductive 7 ms relay outputs

Component Name:

ATS22

[Uc] Control Circuit Voltage:

230 V - 15...10 % 50/60 Hz

[Us] Rated Supply Voltage:

230...440 V - 15...10 %

Communication Port Protocol:

Modbus

Ambient Air Temperature For Storage:

-25-70 °C

Output Current:

0.4...1 Icl adjustable

Factory Setting Current:

100 A

Standards:

IEC 60947-4-2

Noise Level:

56 dB

Height:

356 mm

Minimum Switching Current:

100 mA 12 V DC relay outputs)

Warranty:

18 months

Protection Type:

phase failure line || thermal protection motor || thermal protection starter

Ptc Probe Input:

750 Ohm

Type Of Cooling:

forced convection

Function Available:

internal bypass

Discrete Output Type:

relay outputs R1 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O || relay outputs R2 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O

Range Of Product:

Altistart 22

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Power Dissipation In W:

73 W for standard applications

Power Range:

30-50 kW 200-240 V 3 phase || 55-100 kW 380-440 V 3 phase

Assembly Style:

with heat sink

Installed Device:

31

Ambient Air Temperature For Operation:

-10-40 °C without derating) || 40-60 °C with current derating 2.2 % per °C)

Motor Power Kw:

39 kW 230 V || 55 kW 400 V || 55 kW 440 V

Operating Position:

vertical +/- 10 degree

Device Connection:

in the motor supply line || to the motor delta terminals

Discrete Input Number:

3

Product Specific Application:

pumps and fans

Depth:

229.5 mm

Motor Starter Type:

soft starter

Physical Interface:

RS485 multidrop

Discrete Input Type:

LI1, LI2, LI3) logic, 5 mA 4.3 kOhm

Transmission Rate:

4800, 9600 or 19200 bps

Mercury Free:

Yes

Phase:

3 phase

Product Or Component Type:

soft starter

Width:

150 mm

Product Certifications:

UL || CSA || GOST || C-tick || CCC

Rohs Exemption Information:

Yes

China Rohs Regulation:

X

Supply Frequency:

50...60 Hz - 10...10 %

Communication Data Link:

serial

Relative Humidity:

0-95 % without condensation or dripping water IEC 60068-2-3

Marking:

CE

Icl Starter Rating:

110 A connection in the motor supply line for standard applications

Product Destination:

asynchronous motors

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Supply Voltage Limits:

195-484 V

Vibration Resistance:

1 gn 13-200 Hz)IEC 60068-2-6 || 1.5 mm 2-13 Hz)IEC 60068-2-6

Discrete Output Number:

2

Operating Altitude:

<= 3280.84 ft (1000 m) without derating || > 3280.84...< 6561.68 ft (> 1000...< 2000 m) with current derating of 2.2 % per additional 100 m

Network Frequency:

45...66 Hz

Discrete Input Voltage:

24 V <= 30 V

Brochure:

View

Catalog:

View

Datasheet:

View
