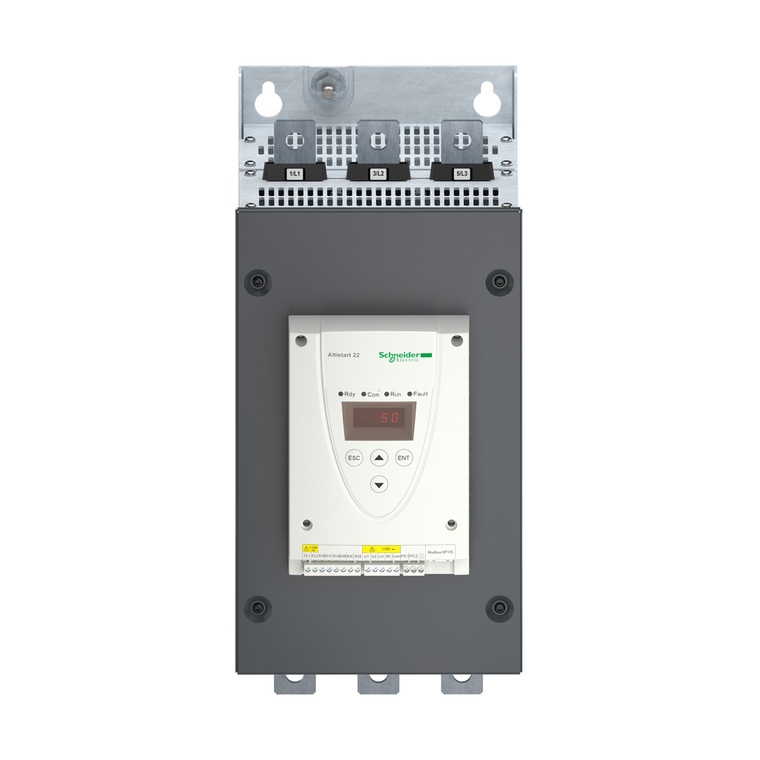

Schneider Electric ATS22C32S6U Electronic Soft Starter Control 110V Pow

(No reviews yet) Write a Review

Write a Review

Schneider Electric ATS22C32S6U Electronic Soft Starter Control 110V Pow

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ATS22C32S6U

UPC:

3606480211218

MPN:

Condition:

New

Ambient Air Temperature For Operation:

-10-40 °C without derating) || 40-60 °C with current derating 2.2 % per °C)

Height:

425 mm

China Rohs Regulation:

X

Connector Type:

1 RJ45

Electromagnetic Compatibility:

conducted and radiated emissions level A IEC 60947-4-2 || damped oscillating waves level 3 IEC 61000-4-12 || electrostatic discharge level 3 IEC 61000-4-2 || immunity to electrical transients level 4 IEC 61000-4-4 || immunity to radiated radio-electr

Type Of Cooling:

forced convection

Standards:

EN/IEC 60947-4-2

Ip Degree Of Protection:

IP00

Transmission Rate:

4800, 9600 or 19200 bps

Vibration Resistance:

1 gn 13-200 Hz)EN/IEC 60068-2-6 || 1.5 mm 2-13 Hz)EN/IEC 60068-2-6

[Us] Rated Supply Voltage:

208...600 V - 15...10 %

Communication Port Protocol:

Modbus

Width:

206 mm

Type Of Start:

start with torque control (current limited to 3.5 In)

Function Available:

internal bypass

Utilisation Category:

AC-53A

Discrete Input Logic:

positive logic LI1, LI2, LI3 < 20 V <= 15 mA > 79 V, <= 2 mA

Minimum Switching Current:

100 mA 12 V DC relay outputs)

Power Dissipation In W:

150 W for standard applications

Product Or Component Type:

soft starter

Warranty:

18 months

Range Of Product:

Altistart 22

Shock Resistance:

15 gn 11 ms EN/IEC 60068-2-27

Phase:

3 phase

Marking:

CE

Assembly Style:

with heat sink

Device Connection:

in the motor supply line

Product Certifications:

CSA || C-tick || CCC || UL || GOST

Product Destination:

asynchronous motors

Control Circuit Consumption:

20 W

Product Specific Application:

pumps and fans

Discrete Input Voltage:

110 V <= 121 V

Ambient Air Temperature For Storage:

-25-70 °C

Maximum Horse Power Rating:

100 hp 208 V || 125 hp 230 V || 250 hp 460 V || 300 hp 575 V

Ptc Probe Input:

750 Ohm

Protection Type:

phase failure line || thermal protection motor || thermal protection starter

Net Weight:

33 kg

Rohs Exemption Information:

Yes

Supply Frequency:

50...60 Hz - 10...10 %

Pollution Degree:

level 2 IEC 60664-1

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Supply Voltage Limits:

177-660 V

Network Frequency:

45...66 Hz

Installed Device:

31

Mercury Free:

Yes

Communication Data Link:

serial

Depth:

299 mm

Discrete Input Type:

LI1, LI2, LI3) logic, 5 mA 20 kOhm

Relative Humidity:

0-95 % without condensation or dripping water EN/IEC 60068-2-3

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Component Name:

ATS22

Maximum Switching Current:

5 A 250 V AC resistive 1 relay outputs || 5 A 30 V DC resistive 1 relay outputs || 2 A 250 V AC inductive 0.4 20 ms relay outputs || 2 A 30 V DC inductive 7 ms relay outputs

[Uc] Control Circuit Voltage:

110 V - 15...10 % 50/60 Hz

Icl Starter Rating:

320 A connection in the motor supply line for standard applications

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Factory Setting Current:

302 A

Physical Interface:

RS485 multidrop

Noise Level:

56 dB

Discrete Output Type:

relay outputs R1 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O || relay outputs R2 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O

Operating Position:

vertical +/- 10 degree

Output Current:

0.4...1 Icl adjustable

Discrete Input Number:

3

Discrete Output Number:

2

Operating Altitude:

<= 3280.84 ft (1000 m) without derating || > 3280.84...< 6561.68 ft (> 1000...< 2000 m) with current derating of 2.2 % per additional 100 m

Brochure:

View

Catalog:

View

Datasheet:

View
