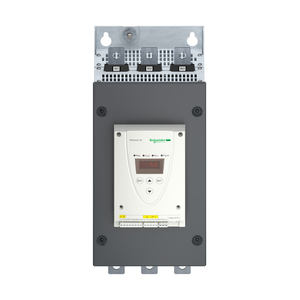

Schneider Electric ATS22C41S6 Electronic Soft Starter Control 220V Pow
Schneider Electric
$5,359.50
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Altistart 22 soft starter can feed 3-phase asynchronous motors in supply line connection. It has a rating of 410A, a rated power from 110kW to 250kW and a rated voltage from 230V to 500V AC. It is designed for simple and complex machines such as centrifugal and piston pumps, fans, screw compressors and material handling equipment. Slim form factor improves versatility; allows mounting in frames of any kind of machines. It features an Integrated bypass, this reduces noise and decreases heat dissipation. Compatibility with SoMove software allows configurations and settings to be easily transferred, meaning spares can be quickly installed. It provides smooth starting for your machinery, avoiding mechanical stresses and extending their service life.
- Operating Position:
- vertical +/- 10 degree
- Ip Degree Of Protection:
- IP00
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Protection Type:
- phase failure line || thermal protection motor || thermal protection starter
- Installed Device:
- 31
- Shock Resistance:
- 15 gn 11 ms EN/IEC 60068-2-27
- Marking:
- CE
- Discrete Input Voltage:
- 24 V <= 30 V
- Device Connection:
- in the motor supply line
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Height:
- 425 mm
- Noise Level:
- 56 dB
- Mercury Free:
- Yes
- Icl Starter Rating:
- 410 A connection in the motor supply line for standard applications
- Warranty:
- 18 months
- Operating Altitude:
- <= 3280.84 ft (1000 m) without derating || > 3280.84...< 6561.68 ft (> 1000...< 2000 m) with current derating of 2.2 % per additional 100 m
- Product Or Component Type:
- soft starter
- Communication Data Link:
- serial
- Product Specific Application:
- pumps and fans
- Ptc Probe Input:
- 750 Ohm
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Power Range:
- 110-220 kW 380-440 V 3 phase || 110-220 kW 200-240 V 3 phase || 250-500 kW 480-500 V 3 phase
- Component Name:
- ATS22
- Discrete Input Logic:
- positive logic LI1, LI2, LI3 < 5 V <= 2 mA > 11 V, >= 5 mA
- Product Destination:
- asynchronous motors
- Relative Humidity:
- 0-95 % without condensation or dripping water EN/IEC 60068-2-3
- Power Dissipation In W:
- 177 W for standard applications
- Discrete Output Type:
- relay outputs R1 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O || relay outputs R2 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O
- [Uc] Control Circuit Voltage:
- 230 V - 15...10 % 50/60 Hz
- Type Of Start:
- start with torque control (current limited to 3.5 In)
- Pollution Degree:
- level 2 IEC 60664-1
- Type Of Cooling:
- forced convection
- Ambient Air Temperature For Operation:
- -10-40 °C without derating) || 40-60 °C with current derating 2.2 % per °C)
- Assembly Style:
- with heat sink
- Phase:
- 3 phase
- Net Weight:
- 33 kg
- Standards:
- EN/IEC 60947-4-2
- Factory Setting Current:
- 361 A
- Motor Starter Type:
- soft starter
- Minimum Switching Current:
- 100 mA 12 V DC relay outputs)
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Maximum Switching Current:
- 5 A 250 V AC resistive 1 relay outputs || 5 A 30 V DC resistive 1 relay outputs || 2 A 250 V AC inductive 0.4 20 ms relay outputs || 2 A 30 V DC inductive 7 ms relay outputs
- Communication Port Protocol:
- Modbus
- China Rohs Regulation:
- X
- [Us] Rated Supply Voltage:
- 230...600 V - 15...10 %
- Transmission Rate:
- 4800, 9600 or 19200 bps
- Utilisation Category:
- AC-53A
- Discrete Input Number:
- 3
- Function Available:
- internal bypass
- Control Circuit Consumption:
- 20 W
- Rohs Exemption Information:
- Yes
- Range Of Product:
- Altistart 22
- Discrete Input Type:
- LI1, LI2, LI3) logic, 5 mA 4.3 kOhm
- Physical Interface:
- RS485 multidrop
- Motor Power Kw:
- 110 kW 230 V || 220 kW 400 V || 220 kW 440 V || 250 kW 500 V
- Network Frequency:
- 45...66 Hz
- Electromagnetic Compatibility:
- conducted and radiated emissions level A IEC 60947-4-2 || damped oscillating waves level 3 IEC 61000-4-12 || electrostatic discharge level 3 IEC 61000-4-2 || immunity to electrical transients level 4 IEC 61000-4-4 || immunity to radiated radio-electr
- Supply Voltage Limits:
- 195-660 V
- Supply Frequency:
- 50...60 Hz - 10...10 %
- Vibration Resistance:
- 1 gn 13-200 Hz)EN/IEC 60068-2-6 || 1.5 mm 2-13 Hz)EN/IEC 60068-2-6
- Discrete Output Number:
- 2
- Depth:
- 299 mm
- Output Current:
- 0.4...1 Icl adjustable
- Ambient Air Temperature For Storage:
- -25-70 °C
- Connector Type:
- 1 RJ45
- Width:
- 206 mm
- Product Certifications:
- UL || CSA || CCC || C-tick || GOST
