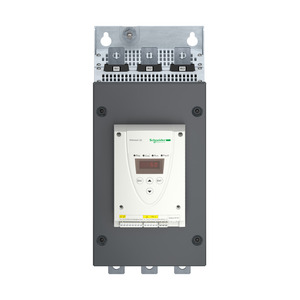

Schneider Electric ATS22D88S6 Electronic Soft Starter Control 220V Pow
This Altistart 22 soft starter can feed 3-phase asynchronous motors in supply line connection. It has a rating of 88A, a rated power from 22kW to 55kW and a rated voltage from 230V to 500V AC. It is designed for simple and complex machines such as centrifugal and piston pumps, fans, screw compressors and material handling equipment. Slim form factor improves versatility, allows mounting in frames of any kind of machines. It features an Integrated bypass, this reduces noise and decreases heat dissipation. Compatibility with SoMove software allows configurations and settings to be easily transferred, meaning spares can be quickly installed. It provides smooth starting for your machinery, avoiding mechanical stresses and extending their service life.
- Ip Degree Of Protection:
- IP20
- Supply Frequency:
- 50...60 Hz - 10...10 %
- Output Current:
- 0.4...1 Icl adjustable
- Function Available:
- internal bypass
- Discrete Input Voltage:
- 24 V <= 30 V
- Mercury Free:
- Yes
- Discrete Input Number:
- 3
- Relative Humidity:
- 0-95 % without condensation or dripping water IEC 60068-2-3
- Connector Type:
- 1 RJ45
- Standards:
- IEC 60947-4-2
- Product Certifications:
- CCC || GOST || C-tick || CSA || UL
- Shock Resistance:
- 15 gn 11 ms IEC 60068-2-27
- Network Frequency:
- 45...66 Hz
- Width:
- 145 mm
- Phase:
- 3 phase
- Minimum Switching Current:
- 100 mA 12 V DC relay outputs)
- Operating Position:
- vertical +/- 10 degree
- Transmission Rate:
- 4800, 9600 or 19200 bps
- Physical Interface:
- RS485 multidrop
- Assembly Style:
- with heat sink
- Discrete Output Number:
- 2
- Depth:
- 207 mm
- Electromagnetic Compatibility:
- conducted and radiated emissions level A IEC 60947-4-2 || damped oscillating waves level 3 IEC 61000-4-12 || electrostatic discharge level 3 IEC 61000-4-2 || immunity to electrical transients level 4 IEC 61000-4-4 || immunity to radiated radio-electr
- China Rohs Regulation:
- X
- Utilisation Category:
- AC-53A
- Pollution Degree:
- level 2 IEC 60664-1
- Supply Voltage Limits:
- 195-660 V
- Power Dissipation In W:
- 66 W for standard applications
- Product Specific Application:
- pumps and fans
- Discrete Output Type:
- relay outputs R1 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O || relay outputs R2 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O
- [Us] Rated Supply Voltage:
- 230...600 V - 15...10 %
- Range Of Product:
- Altistart 22
- Net Weight:
- 12 kg
- Motor Starter Type:
- soft starter
- Ambient Air Temperature For Storage:
- -25-70 °C
- Factory Setting Current:
- 77 A
- Protection Type:
- phase failure line || thermal protection motor || thermal protection starter
- Type Of Cooling:
- forced convection
- Rohs Exemption Information:
- Yes
- [Uc] Control Circuit Voltage:
- 230 V - 15...10 % 50/60 Hz
- Operating Altitude:
- <= 3280.84 ft (1000 m) without derating || > 3280.84...< 6561.68 ft (> 1000...< 2000 m) with current derating of 2.2 % per additional 100 m
- Discrete Input Logic:
- positive logic LI1, LI2, LI3 < 5 V <= 2 mA > 11 V, >= 5 mA
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Communication Port Protocol:
- Modbus
- Communication Data Link:
- serial
- Icl Starter Rating:
- 88 A connection in the motor supply line for standard applications
- Height:
- 295 mm
- Type Of Start:
- start with torque control (current limited to 3.5 In)
- Ptc Probe Input:
- 750 Ohm
- Vibration Resistance:
- 1 gn 13-200 Hz)IEC 60068-2-6 || 1.5 mm 2-13 Hz)IEC 60068-2-6
- Discrete Input Type:
- LI1, LI2, LI3) logic, 5 mA 4.3 kOhm
- Warranty:
- 18 months
- Maximum Switching Current:
- 5 A 250 V AC resistive 1 relay outputs || 5 A 30 V DC resistive 1 relay outputs || 2 A 250 V AC inductive 0.4 20 ms relay outputs || 2 A 30 V DC inductive 7 ms relay outputs
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Installed Device:
- 31
- Ambient Air Temperature For Operation:
- -10-40 °C without derating) || 40-60 °C with current derating 2.2 % per °C)
- Product Or Component Type:
- soft starter
- Device Connection:
- in the motor supply line
- Marking:
- CE
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Component Name:
- ATS22
- Control Circuit Consumption:
- 20 W
- Product Destination:
- asynchronous motors
- Power Range:
- 55-100 kW 480-500 V 3 phase || 15-25 kW 200-240 V 3 phase || 30-50 kW 380-440 V 3 phase
- Motor Power Kw:
- 22 kW 230 V || 45 kW 400 V || 45 kW 440 V || 55 kW 500 V
- Noise Level:
- 45 dB
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
