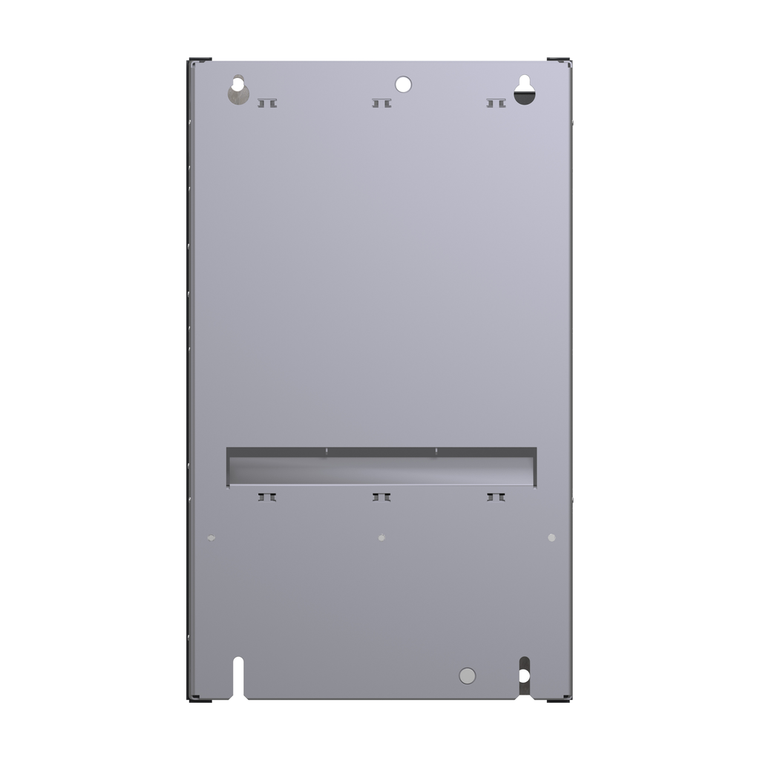

Schneider Electric ATS480C66Y Soft Starter Ats480 660A 208 To 690V

Schneider Electric ATS480C66Y Soft Starter Ats480 660A 208 To 690V

Schneider Electric
SKU:
ATS480C66Y
|
UPC:
3.60648E+12
$9,924.99
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
Altivar Soft Starter ATS480 is intended to start and stop asynchronous motors supplied from 208V to 690V. It meets the requirements of the most demanding applications in normal and heavy duty. With an operational rated current of 660A in normal duty, it supplies motor from 160kW to 630kW according to mains voltage. Designed for digitization, connected, optimized to meet cybersecurity standard, it simplifies project execution and maximizes the availability of applications. Its torque control (TCS) masters acceleration and deceleration. It efficiently stops high inertia application thanks to the dynamic braking and DC injection. It could be connected in-line or inside the delta to reduce its operational current. The embedded test routine simplifies the commissioning inside the delta. Its dimensions are 400mm (width) x 314mm (depth) x 670mm (height) and it weighs 51,4kg. Altivar Soft Starter ATS480 is designed to address process, infrastructures and industrial machines. It conforms to IEC/EN60947-4-1. It is certified CE, cULus, UKCA, CCC, RCM, EAC, and Marine certified DNV, ABS, BV and CCS. Display terminals, remote mounting kit, communication modules are common with Altivar Drives. Line chokes, DNV kits are common with ATS48. ATS480 is compatible with ATS48, it has same footprint, fixing, torque control algorithm, I/O, menus… The integration of Altivar Soft Starter ATS480 in EcoStruxure drastically simplifies architecture selection, detailed design and execution in automation and electrical systems. It is a Green Premium product designed to take the environmental considerations beyond current directives and regulations, compliant with RoHS and REACH.
Additional Information
Maximum Horse Power Rating:
200.0 hp 208 V normal duty || 250.0 hp 230 V normal duty || 200.0 hp 230 V heavy duty || 500.0 hp 460 V normal duty || 400.0 hp 460 V heavy duty || 600.0 hp 575 V normal duty || 500.0 hp 575 V heavy duty
Analogue Input Number:
1
Analogue Output Number:
1
Maximum Deflection Under Vibratory Load (During Operation):
1.5 mm at 2...13 Hz
Operating Position:
vertical +/- 10 degree
Mercury Free:
Yes
Transmission Rate:
1200...256000 bit/s
[In] Rated Current Pwr Loss Specifctn:
660.0 A
Discrete Input Logic:
programmable digital input < 5 V
Net Weight:
51.4 kg
Height:
670.0 mm
Ambient Air Temperature For Storage:
-25-70 °C
Maximum Permanent Current:
590.0 A at 40 °C heavy duty
Communication Data Link:
serial
Discrete Output Type:
DQ1) programmable digital output <= 30 V || DQ2) programmable digital output <= 30 V
Pollution Degree:
level 3
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Maximum Switching Current:
relay outputs 2 A 250 V AC || relay outputs 2 A 30 V DC || relay outputs
Display Screen Available:
TRUE
Connector Type:
1 RJ45
Marking:
CE || CCC || UKCA || EAC || RCM || cULus
Power Loss Static Current Independent:
25.0 W
China Rohs Regulation:
X
Maximum Acceleration Under Shock Load (During Storage):
100 m/s² at 11 ms
Option Card:
communication module Profibus DP V1 || communication module PROFINET || communication module Modbus TCP/EtherNet/IP || communication module CANopen daisy chain || communication module CANopen Sub-D || communication module CANopen open style
[Us] Rated Supply Voltage:
208...690 V - 15...10 %
Rohs Exemption Information:
Yes
Depth:
314.0 mm
[Uimp] Rated Impulse Withstand Voltage:
6 kV
Accuracy Class:
class 10E
Physical Interface:
2-wire RS 485
Width:
400.0 mm
Torque Control:
TRUE
Phase:
3 phase
Standards:
IEC 60947-4-2 || UL 60947-4-2 || IEC 60664-1
Range Of Product:
Altivar Soft Starter ATS480
Data Format:
8 bits, configurable odd, even or no parity
Minimum Switching Current:
100 mA 12 V DC relay outputs
Relative Humidity:
0-95 % without condensation or dripping water IEC 60068-2-3
Power Loss Per Device Current Dependent:
1938.0 W
Type Of Polarization:
no impedance Modbus serial
Electromagnetic Compatibility:
conducted and radiated emissions level A IEC 60947-4-2 || conducted and radiated emissions with bypass level B IEC 60947-4-2 || damped oscillating waves level 3 IEC 61000-4-12 || electrostatic discharge level 3 IEC 61000-4-11 || immunity to electrica
Sustainable Offer Status:
Green Premium product
Ambient Air Temperature For Operation:
40-60 °C with current derating of 2 % per °C) || -15-40 °C without derating)
[Ui] Rated Insulation Voltage:
690 V
Circularity Profile:
ENVEOLI2102013EN
Discrete Input Type:
STOP) logic inputs, 3500 Ohm || RUN) logic inputs, 3500 Ohm || DI3) programmable as logic input, 3500 Ohm || DI4) programmable as logic input, 3500 Ohm
Transmission Frame:
RTU
Protection Type:
phase failure line || integrated thermal protection motor || thermal protection starter || current overload motor || underload motor || excessive starting time, locked rotor motor || motor phase loss motor || line supply phase loss line || line suppl
Maximum Acceleration Under Vibratory Load (During Storage):
15 m/s² at 200...500 Hz || 10 m/s² at 9...200 Hz
Maximum Acceleration Under Shock Impact (During Operation):
150 m/s² at 11 ms
Maximum Acceleration Under Vibrational Stress (During Operation):
10 m/s² at 13...200 Hz
Communication Port Protocol:
Modbus serial
Upgradeability:
Upgraded components available
Analogue Output Type:
current output AQ1 0...20 mA or 0...10 V 500 Ohm
Apparent Power:
0.125 kVA
Ip Degree Of Protection:
IP00
Maximum Deflection Under Vibratory Load (During Transport):
1.75 mm at 2...9 Hz
Product Or Component Type:
soft starter
Maximum Acceleration Under Vibratory Load (During Transport):
15 m/s² at 200...500 Hz || 10 m/s² at 9...200 Hz
Supply Frequency:
50...60 Hz - 20...20 %
[Uc] Control Circuit Voltage:
110...250 V AC 50/60 Hz - 15...10 %
Integrated Motor Overload Protection:
TRUE
Device Short Name:
ATS480
Device Connection:
in the motor supply line || to the motor delta terminals
Function Available:
external bypass control || pre-heating || smoke extraction || multi-motor cascade || second motor set || user management || ports and services hardening || security event logging || cybersecure firmware update || single direction
Maximum Acceleration Under Shock Load (During Transport):
100 m/s² at 11 ms
[Ie] Rated Operational Current:
normal duty 660.0 A 40 °C)
Discrete Input Number:
4
Output Current Drift:
150-700 %
Method Of Access:
slave Modbus serial
Product Certifications:
CE || cULus || CCC || UKCA || RCM || EAC || DNV || ABS || BV || CCS
Utilisation Category:
AC-3A || AC-53A
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Relay Output Type:
relay outputs R1A 1 NO || relay outputs R1B 1 NO || relay outputs RIC NO/NC programmable
Product Destination:
asynchronous motors
Number Of Addresses:
0-227 Modbus serial
Discrete Output Number:
2
Motor Power Kw:
160.0 kW 230 V in the motor supply line heavy duty || 355.0 kW 400 V in the motor supply line normal duty || 315.0 kW 400 V in the motor supply line heavy duty || 400.0 kW 440 V in the motor supply line normal duty || 355.0 kW 440 V in the motor supp
Product Specific Application:
process and infrastructures
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Maximum Deflection Under Vibratory Load (During Storage):
1.75 mm at 2...9 Hz
Operating Altitude:
<= 3280.84 ft (1000 m) without derating || > 3280.84...13123.36 ft (> 1000...4000 m) with current derating 1 % per 100 m
Environmental Disclosure:
ENVPEP2102013EN
Relay Output Number:
3
Environmental Class (During Operation):
class 3C3 according to IEC 60721-3-3 || class 3S2 according to IEC 60721-3-3
