Schneider Electric ATSU01N206LT Soft-Start Stop 6A 200 480V

Schneider Electric ATSU01N206LT Soft-Start Stop 6A 200 480V

Schneider Electric
SKU:
ATSU01N206LT
|
UPC:
3389110667080
Availability:
Contact us to confirm availability and lead times.
$159.60
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description

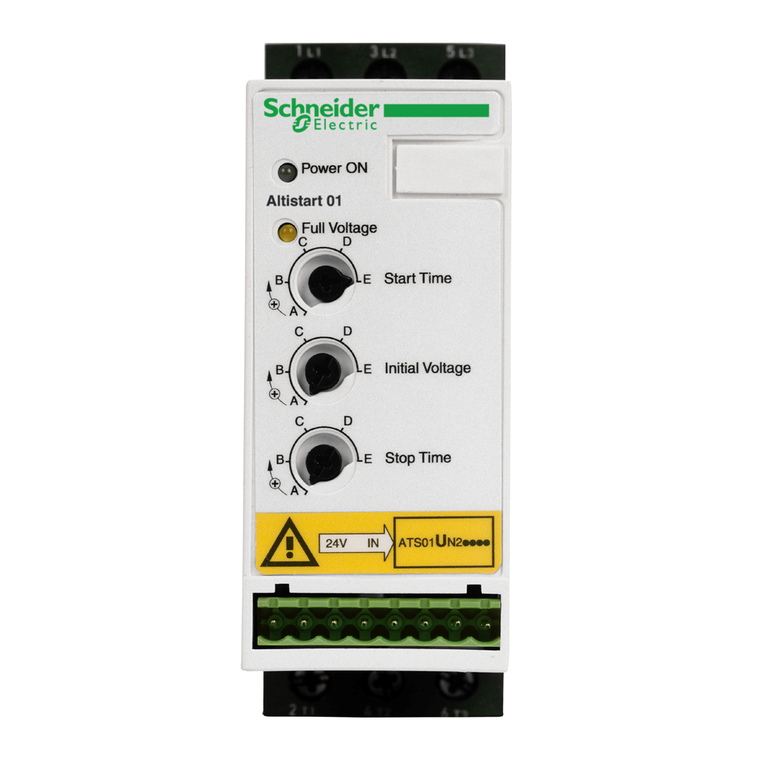

The Altistart U01 is a soft start/soft stop unit for 3-phase asynchronous motors. It is designed primarily for combinations with TeSys U starter-controllers. It can be used for a motor rated power up to 3kW or 3hp for 3-phase (200V to 480V AC) and up to 6A rating. It is 45mm wide, this makes it one of the smallest soft starters on the market. It can be installed nearly everywhere. It features an Integrated bypass, this reduces noise and decreases heat dissipation. Its protection index is IP20. It weighs 0.34kg and its dimensions are, 45mm wide, 234mm high, 150mm deep. The Altistart U01 is designed for the following simple applications like conveyors, conveyor belts, pumps, fans, compressors, automatic doors and gates, small cranes and belt-driven machinery. It complies with standards IEC/EN 60947-4-2, and carries UL, CSA, C-Tick, and CCC certifications, and CE marking. It can be easily combined with a TeSys U controller by means of the power connector VW3G4104. It is easy to install on a DIN rail. Altistart 01 combines simplicity with easy cabling, fast configuration and efficiency. Reduced machine wear and minimized maintenance time will optimize operations. Together with TeSys Model U, it provides a unique motor starter solution.
Additional Information
[Us] Rated Supply Voltage:
200...480 V - 10...10 %
Product Certifications:
CCC || UL || C-tick || CSA
Product Specific Application:
simple machine
Mercury Free:
Yes
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Vibration Resistance:
1 gn 13-150 Hz)EN/IEC 60068-2-6 || 1.5 mm peak to peak 3-13 Hz)EN/IEC 60068-2-6
Rohs Exemption Information:
Yes
Supply Voltage Limits:
180-528 V
Range Of Product:
Altistart U01 and TeSys U
Tightening Torque:
1.9-2.5 N.m || 0.5-0.5 N.m
Ambient Air Temperature For Storage:
-25-70 °C EN/IEC 60947-4-2
Operating Altitude:
<= 3280.84 ft (1000 m) without derating || > 3280.84 ft (1000 m) with current derating of 2.2 % per additional 100 m
Maximum Horse Power Rating:
1 hp, 3 phase 230 V || 2 hp, 3 phase 460 V || 3 hp, 3 phase 460 V || 1.5 hp, 3 phase 230 V
Electrical Connection:
4 mm screw clamp terminal - rigid 1 1...10 mm² AWG 8 power circuit || screw connector - rigid without cable end 1 0.5...2.5 mm² AWG 14 control circuit || 4 mm screw clamp terminal - rigid 2 1...6 mm² AWG 10 power circuit || screw connector - rigid
Marking:
CE
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Device Short Name:
ATSU01
Ip Degree Of Protection:
IP20
Height:
234 mm
Starting Torque:
30...80 % of starting torque of motor connected directly on the line supply
Discrete Input Logic:
positive LI1, LI2, BOOST < 5 V <= 0.2 mA > 13 V, >= 0.5 mA
Starting Time:
1 s / 100 || 5 s / 20 || 10 s / 10 || adjustable from 1 to 10 s
Display Type:
1 LED Green)starter powered up || 1 LED Yellow)nominal voltage reached
Function Available:
integrated bypass
Ambient Air Temperature For Operation:
-10-40 °C without derating) || 40-50 °C with current derating of 2 % per °C)
Motor Power Kw:
3 kW, 3 phase 400 V || 0.75 kW, 3 phase 230 V || 2.2 kW, 3 phase 400 V || 1 kW, 3 phase 230 V || 1.5 kW, 3 phase 400 V
Utilisation Category:
AC-53B EN/IEC 60947-4-2
Discrete Output Current:
2 A DC-13 || 3 A AC-15
China Rohs Regulation:
X
Assembly Style:
with heat sink
Discrete Output Type:
open collector logic LO1 end of starting signal || relay outputs R1A, R1C NO
Depth:
150 mm
Warranty:
18 months
Relative Humidity:
5-95 % without condensation or dripping water EN/IEC 60068-2-3
Icl Starter Rating:
0.25
Output Voltage:
<= power supply voltage
Current Consumption:
65 mA
Motor Starter Type:
soft starter
Power Range:
0.55-1 kW 200-240 V 3 phase || 1.1-2 kW 380-440 V 3 phase || 2.2-3 kW
Maximum Switching Current:
relay outputs 2 A 30 V DC cos phi = 0.5 20 ms inductive || relay outputs 2 A 250 V AC AC-15 cos phi = 0.5 20 ms inductive
Deceleration Time Symb:
adjustable from 1 to 10 s
Toxic Heavy Metal Free:
Yes
Net Weight:
0.34 kg
Minimum Switching Current:
10 mA 6 V DC relay outputs
Input Output Isolation:
galvanic between power and control
Pollution Degree:
2 EN/IEC 60947-4-2
Product Or Component Type:
soft starter
Operating Position:
vertical +/- 10 degree
Standards:
EN/IEC 60947-4-2
Maximum Switching Voltage:
440 V relay outputs
Reach Free Of Svhc:
Yes
Supply Frequency:
50...60 Hz - 5...5 %
Type Of Start:
start with voltage ramp
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Electromagnetic Compatibility:
conducted and radiated emissions level B CISPR 11 || conducted and radiated emissions level B IEC 60947-4-2 || damped oscillating waves level 3 IEC 61000-4-12 || electrostatic discharge level 3 IEC 61000-4-2 || EMC immunity EN 50082-1 || EMC immunity
Shock Resistance:
15 gn 11 ms EN/IEC 60068-2-27
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Power Dissipation In W:
1.5 W at full load and at end of starting || 61.5 W in transient state
Product Destination:
asynchronous motors
Network Frequency:
47.5...63 Hz
Width:
45 mm
Phase:
3 phase
Discrete Input Voltage:
24...40 V
Discrete Input Type:
logic LI1, LI2, BOOST) stop, run and boost on start-up functions <= 8 mA 27 kOhm
[Uc] Control Circuit Voltage:
24 V DC +/- 10 %
Discrete Output Voltage:
24 V 6...30 V) open collector logic
Catalog:
View
