Schneider Electric ATV12H018M3 Atv12 0.18Kw 240V 3Ph Heat Sink Tb
Schneider Electric
$253.98
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

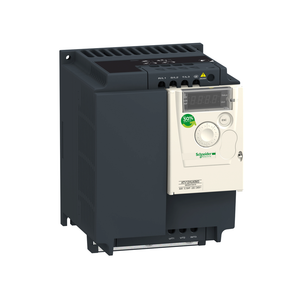

Schneider Electric ATV12H018M3 Atv12 0.18Kw 240V 3Ph Heat Sink Tb
Altivar Machine ATV12 is an offer of variable speed drives for commercial equipment and simple machines. It works at a rated power up to 0.18kW / 0.25hp and a rated voltage from 200V to 240V AC. It is designed with heatsink for normal environments and fan-cooled enclosure. It has advanced PID and catch on the fly functions, basic cabling, and easy motor control setting. Based on the needs, it can be delivered without heatsink, with embedded EMC filter, or as standard version. The Altivar 12 drive integrates as standard the Modbus communication protocol. This Altivar Machine ATV12 is designed for simple applications, in industry, commercial machines and HVAC machines such as conveyors, pumps, extractors, access barriers and treadmills. It conforms to IEC, UL and other international standards. SoMove software compatibility enables saving and transfering of configurations to spare drive, reducing maintenance downtime. It features an optimized application of power and torque for ventilation and pumping applications, this allows up to 30% energy savings.
- Number Of Addresses:
- 1-247
- Transmission Rate:
- 9.6 kbit/s || 19.2 kbit/s || 38.4 kbit/s
- Supply Frequency:
- 50/60 Hz +/- 5 %
- Marking:
- CE
- Type Of Polarization:
- no impedance
- Maximum Acceleration Under Vibrational Stress (During Operation):
- 10 m/s² at 13...200 Hz
- Frequency Resolution:
- analog input converter A/D, 10 bits || display unit 0.1 Hz
- Maximum Output Voltage:
- 240 V
- With Safety Function Safe Brake Management (Sbc/Sbt):
- FALSE
- Relay Output Number:
- 1
- Motor Power Kw:
- 0.18 kW
- Motor Slip Compensation:
- adjustable || preset in factory
- Operating Position:
- vertical +/- 10 degree
- Warranty:
- 18 months
- With Safety Function Safe Speed Monitor (Ssm):
- FALSE
- Ambient Air Temperature For Storage:
- -25-70 °C
- Protection Type:
- line supply overvoltage || line supply undervoltage || overcurrent between output phases and earth || overheating protection || short-circuit between motor phases || against input phase loss in three-phase || thermal motor protection via the drive by
- Ambient Air Temperature For Operation:
- -10-40 °C without derating || 40-60 °C with current derating 2.2 % per °C
- Linearity Error:
- +/- 0.3 % of maximum value analogue input
- Transient Overtorque:
- 150-170 % of nominal motor torque depending on drive rating and type of motor
- Net Weight:
- 0.7 kg
- Product Or Component Type:
- variable speed drive
- Range Of Product:
- Altivar 12
- Communication Port Protocol:
- Modbus
- Assembly Style:
- on base plate
- Network Frequency:
- 50-60 Hz
- Method Of Access:
- server Modbus serial
- Relative Symmetric Network Frequency Tolerance:
- 0.05
- Data Format:
- 8 bits, configurable odd, even or no parity
- Communication Service:
- read holding registers (03) 29 words || write single register (06) 29 words || write multiple registers (16) 27 words || read/write multiple registers (23) 4/4 words || read device identification (43)
- Electromagnetic Compatibility:
- electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || electrostatic discharge immunity test level 3 IEC 61000-4-2 || immunity to conducted disturbances level 3 IEC 61000-4-6 || radiated radio-frequency electromagnetic field immunity
- Standards:
- UL 508C || UL 618000-5-1 || IEC 61800-5-1 || IEC 61800-3
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Switching Frequency:
- 2...16 kHz adjustable || 4...16 kHz with derating factor
- Physical Interface:
- 2-wire RS 485
- Maximum Deflection Under Vibratory Load (During Operation):
- 1.5 mm at 2...13 Hz
- Noise Level:
- 0 dB
- Asynchronous Motor Control Profile:
- sensorless flux vector control || voltage/frequency ratio (V/f) || quadratic voltage/frequency ratio
- Acceleration And Deceleration Ramps:
- U || linear from 0 to 999.9 s || S
- Speed Range:
- 45311
- Time Constant:
- 20 ms +/- 1 ms for reference change
- Brake Chopper Integrated:
- FALSE
- Transmission Frame:
- RTU
- With Safety Function Safe Operating Stop (Sos):
- FALSE
- Discrete Output Number:
- 2
- Apparent Power:
- 0.7 kVA 240 V heavy duty)
- 4 Quadrant Operation Possible:
- FALSE
- Line Current:
- 2.0 A 100 V heavy duty) || 1.7 A 120 V heavy duty)
- With Safety Function Safe Position (Sp):
- FALSE
- Maximum Horse Power Rating:
- 0.25 hp
- Vibration Resistance:
- 1 gn 13-200 Hz)IEC 60068-2-6 || 1.5 mm peak to peak 3-13 Hz) - drive unmounted on symmetrical DIN rail - IEC 60068-2-6
- Insulation:
- electrical between power and control
- Connector Type:
- 1 RJ45
- China Rohs Regulation:
- X
- Operating Altitude:
- <= 3280.84 ft (1000 m) without derating || > 3280.84...9842.52 ft (> 1000...3000 m) with current derating 1 % per 100 m
- Base Load Current At High Overload:
- 1.4 A
- With Safety Function Safe Stop 1 (Ss1):
- FALSE
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Nominal Switching Frequency:
- 4 kHz
- Product Specific Application:
- simple machine
- Electromagnetic Emission:
- radiated emissions environment 1 category C2 IEC 61800-3 2...16 kHz shielded motor cable || conducted emissions with additional EMC filter environment 1 category C2 IEC 61800-3 4...12 kHz shielded motor cable <20 m || conducted emissions with additio
- Maximum Output Frequency:
- 4 kHz
- Maximum Acceleration Under Shock Impact (During Operation):
- 150 m/s² at 11 ms
- Environmental Class (During Operation):
- class 3C3 according to IEC 60721-3-3 || class 3S2 according to IEC 60721-3-3
- With Safety Function Safely Limited Speed (Sls):
- FALSE
- Rohs Exemption Information:
- Yes
- Continuous Output Current:
- 1.4 A 4 kHz
- Nominal Output Current:
- 1.4 A
- Emc Filter:
- without EMC filter
- With Safety Function Safely Limited Position (Slp):
- FALSE
- Analogue Output Number:
- 1
- Braking To Standstill:
- by DC injection
- Maximum Transient Current:
- 2.1 A 60 s heavy duty) || 2.3 A 2 s heavy duty)
- Power Dissipation In W:
- natural 16.0 W
- Height:
- 143 mm
- With Sft Fct Safe Stop 2 (Ss2):
- FALSE
- With Safety Function Safe Direction (Sdi):
- FALSE
- Ip Degree Of Protection:
- IP20
- Shock Resistance:
- 15 gn 11 ms IEC 60068-2-27
- Mercury Free:
- Yes
- Tightening Torque:
- 0.8 N.m
- Width:
- 72 mm
- With Safety Function Safe Torque Off (Sto):
- FALSE
- Relative Humidity:
- 5-95 % without condensation IEC 60068-2-3 || 5-95 % without dripping water IEC 60068-2-3
- Analogue Input Number:
- 1
- Speed Drive Output Frequency:
- 0.5-400 Hz
- Sampling Duration:
- 20 ms +/- 1 ms logic input || 10 ms analogue input
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Ambient Air Transport Temperature:
- -25-70 °C
- Discrete Input Number:
- 4
- With Safety Function Safe Programmable Logic:
- FALSE
- Overvoltage Category:
- class III
- Quantity Per Set:
- set of 1
- [Us] Rated Supply Voltage:
- 200...240 V - 15...10 %
- Product Certifications:
- NOM || CSA || C-tick || UL || GOST || RCM || KC
- Pollution Degree:
- 2
- Prospective Line Isc:
- 5 kA
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Regulation Loop:
- adjustable PID regulator
- Mounting Mode:
- cabinet mount
- Depth:
- 102.2 mm
