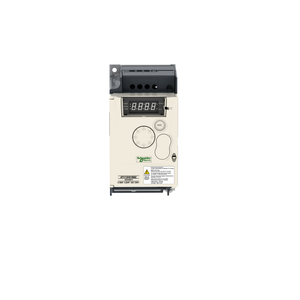

Schneider Electric ATV12H037M2 Atv12 0.37Kw 240V 1Ph Heat Sink Tb

Schneider Electric ATV12H037M2 Atv12 0.37Kw 240V 1Ph Heat Sink Tb

Schneider Electric
SKU:
ATV12H037M2
|
UPC:
3606480071058
Availability:
Contact us to confirm availability and lead times.
$287.64
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
Altivar Machine ATV12 is an offer of variable speed drives for commercial equipment and simple machines. It works at a rated power up to 0.37kW / 0.55hp and a rated voltage from 200V to 240V AC. It is designed with heatsink for normal environments and fan-cooled enclosure. It has advanced PID and catch on the fly functions, basic cabling, and easy motor control setting. Based on the needs, it can be delivered without heatsink, with embedded EMC filter, or as standard version. The Altivar 12 drive integrates as standard the Modbus communication protocol. This Altivar Machine ATV12 is designed for simple applications, in industry, commercial machines and HVAC machines such as conveyors, pumps, extractors, access barriers and treadmills. It conforms to IEC, UL and other international standards. SoMove software compatibility enables saving and transfering of configurations to spare drive, reducing maintenance downtime. It features an optimized application of power and torque for ventilation and pumping applications, this allows up to 30% energy savings.
Additional Information
Acceleration And Deceleration Ramps:
linear from 0 to 999.9 s || S || U
Apparent Power:
1.2 kVA 240 V heavy duty)
Discrete Output Number:
2
Maximum Horse Power Rating:
0.55 hp
Standards:
UL 508C || UL 618000-5-1 || IEC 61800-5-1 || IEC 61800-3
Rohs Exemption Information:
Yes
Speed Range:
45311
With Safety Function Safely Limited Position (Slp):
FALSE
Speed Drive Output Frequency:
0.5-400 Hz
Communication Service:
read holding registers (03) 29 words || write single register (06) 29 words || write multiple registers (16) 27 words || read/write multiple registers (23) 4/4 words || read device identification (43)
With Safety Function Safely Limited Speed (Sls):
FALSE
Transient Overtorque:
150-170 % of nominal motor torque depending on drive rating and type of motor
With Safety Function Safe Operating Stop (Sos):
FALSE
Frequency Resolution:
analog input converter A/D, 10 bits || display unit 0.1 Hz
Assembly Style:
with heat sink
Depth:
121.2 mm
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Product Certifications:
NOM || CSA || C-tick || UL || GOST || RCM || KC
Continuous Output Current:
2.4 A 4 kHz
Physical Interface:
2-wire RS 485
Net Weight:
0.7 kg
Noise Level:
0 dB
With Sft Fct Safe Stop 2 (Ss2):
FALSE
Regulation Loop:
adjustable PID regulator
Operating Altitude:
> 3280.84...6561.68 ft (> 1000...2000 m) with current derating 1 % per 100 m || <= 3280.84 ft (1000 m) without derating
Pollution Degree:
2
China Rohs Regulation:
X
Mounting Mode:
cabinet mount
With Safety Function Safe Speed Monitor (Ssm):
FALSE
[Us] Rated Supply Voltage:
200...240 V - 15...10 %
Linearity Error:
+/- 0.3 % of maximum value analogue input
Data Format:
8 bits, configurable odd, even or no parity
With Safety Function Safe Stop 1 (Ss1):
FALSE
Analogue Output Number:
1
Method Of Access:
server Modbus serial
Maximum Deflection Under Vibratory Load (During Operation):
1.5 mm at 2...13 Hz
Ambient Air Temperature For Operation:
-10-40 °C without derating || 40-60 °C with current derating 2.2 % per °C
Network Frequency:
50-60 Hz
Brake Chopper Integrated:
FALSE
With Safety Function Safe Brake Management (Sbc/Sbt):
FALSE
Height:
143 mm
Shock Resistance:
15 gn 11 ms IEC 60068-2-27
Time Constant:
20 ms +/- 1 ms for reference change
Maximum Acceleration Under Shock Impact (During Operation):
150 m/s² at 11 ms
Analogue Input Number:
1
Protection Type:
line supply overvoltage || line supply undervoltage || overcurrent between output phases and earth || overheating protection || short-circuit between motor phases || against input phase loss in three-phase || thermal motor protection via the drive by
Line Current:
5.9 A 100 V heavy duty) || 4.9 A 120 V heavy duty)
Relay Output Number:
1
Motor Power Kw:
0.37 kW
Operating Position:
vertical +/- 10 degree
Communication Port Protocol:
Modbus
Number Of Addresses:
1-247
Insulation:
electrical between power and control
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Nominal Output Current:
2.4 A
Power Dissipation In W:
natural 27.0 W
Environmental Class (During Operation):
class 3C3 according to IEC 60721-3-3 || class 3S2 according to IEC 60721-3-3
Motor Slip Compensation:
adjustable || preset in factory
Maximum Output Voltage:
240 V
Relative Humidity:
5-95 % without condensation IEC 60068-2-3 || 5-95 % without dripping water IEC 60068-2-3
Product Or Component Type:
variable speed drive
Emc Filter:
integrated
With Safety Function Safe Position (Sp):
FALSE
Nominal Switching Frequency:
4 kHz
Prospective Line Isc:
1 kA
Supply Frequency:
50/60 Hz +/- 5 %
Switching Frequency:
2...16 kHz adjustable || 4...16 kHz with derating factor
Mercury Free:
Yes
Ambient Air Temperature For Storage:
-25-70 °C
Overvoltage Category:
class III
Connector Type:
1 RJ45
Transmission Rate:
9.6 kbit/s || 19.2 kbit/s || 38.4 kbit/s
Product Specific Application:
simple machine
Ip Degree Of Protection:
IP20
Electromagnetic Compatibility:
electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || electrostatic discharge immunity test level 3 IEC 61000-4-2 || immunity to conducted disturbances level 3 IEC 61000-4-6 || radiated radio-frequency electromagnetic field immunity
Vibration Resistance:
1 gn 13-200 Hz)IEC 60068-2-6 || 1.5 mm peak to peak 3-13 Hz) - drive unmounted on symmetrical DIN rail - IEC 60068-2-6
Maximum Transient Current:
3.6 A 60 s heavy duty) || 4.0 A 2 s heavy duty)
Quantity Per Set:
set of 1
Relative Symmetric Network Frequency Tolerance:
0.05
With Safety Function Safe Torque Off (Sto):
FALSE
Maximum Acceleration Under Vibrational Stress (During Operation):
10 m/s² at 13...200 Hz
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Type Of Polarization:
no impedance
With Safety Function Safe Programmable Logic:
FALSE
4 Quadrant Operation Possible:
FALSE
Ambient Air Transport Temperature:
-25-70 °C
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Electromagnetic Emission:
radiated emissions environment 1 category C2 IEC 61800-3 2...16 kHz shielded motor cable || conducted emissions with integrated EMC filter environment 1 category C1 IEC 61800-3 2, 4, 8, 12 and 16 kHz shielded motor cable <5 m || conducted emissions w
Discrete Input Number:
4
Width:
72 mm
Maximum Output Frequency:
4 kHz
Range Of Product:
Altivar 12
Tightening Torque:
0.8 N.m
Transmission Frame:
RTU
Braking To Standstill:
by DC injection
Sampling Duration:
20 ms +/- 1 ms logic input || 10 ms analogue input
Base Load Current At High Overload:
2.4 A
Asynchronous Motor Control Profile:
sensorless flux vector control || voltage/frequency ratio (V/f) || quadratic voltage/frequency ratio
Warranty:
18 months
With Safety Function Safe Direction (Sdi):
FALSE
Marking:
CE
