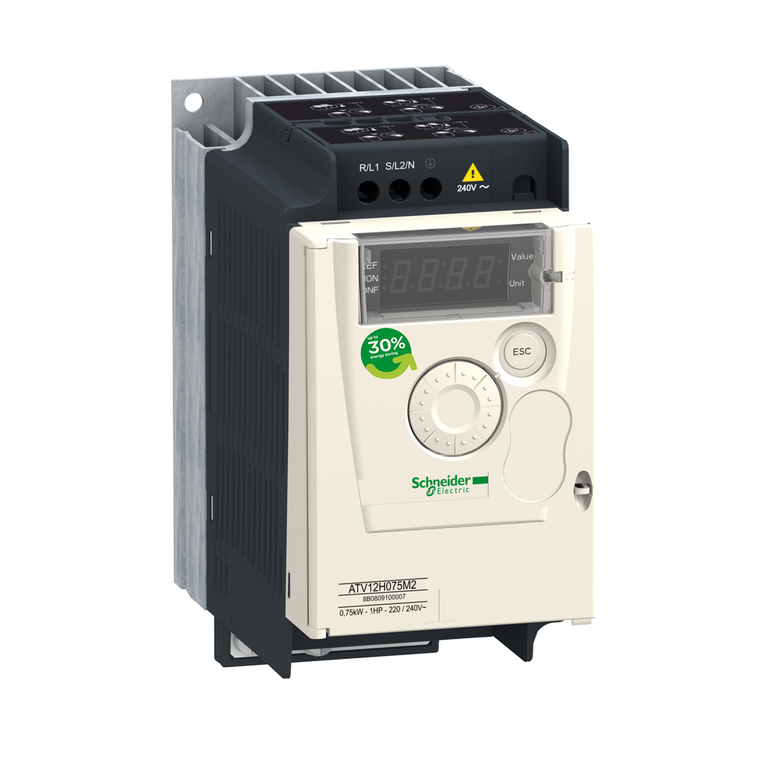

Schneider Electric ATV12H055M2 Atv12 0.55Kw 240V 1Ph Heat Sink Tb
This Altivar 12 variable speed drive can feed single phase asynchronous motors. It works at a rated power up to 0.55kW / 0.75hp and a rated voltage from 200V to 240V AC. It is designed with heatsink for normal environments and fan-cooled enclosure. Transient overtorque function prevents stoppages by unjamming the machine with extra torque, when needed, this reduces downtime and maintenance costs. It features underload and overload detection, this contribute to protect your installation. The Altivar 12 drive integrates as standard the Modbus communication protocol, which can be accessed via the RJ45 connector located on the underside of the drive. It is designed for simple industry and commercial machines and appliances, such as conveyors, pumps, extractors, access barriers and treadmills. SoMove software compatibility enables saving and transfering of configurations to spare drive, reducing maintenance downtime. It features an optimized application of power and torque for ventilation and pumping applications, this allows up to 30% energy savings.
- Standards:
- UL 508C || UL 618000-5-1 || IEC 61800-5-1 || IEC 61800-3
- Network Frequency:
- 50-60 Hz
- Method Of Access:
- server Modbus serial
- Communication Port Protocol:
- Modbus
- Transient Overtorque:
- 150-170 % of nominal motor torque depending on drive rating and type of motor
- Motor Power Kw:
- 0.55 kW
- Braking To Standstill:
- by DC injection
- Physical Interface:
- 2-wire RS 485
- Line Current:
- 8.0 A 100 V heavy duty) || 6.7 A 120 V heavy duty)
- Maximum Horse Power Rating:
- 0.75 hp
- Asynchronous Motor Control Profile:
- voltage/frequency ratio (V/f) || quadratic voltage/frequency ratio || sensorless flux vector control
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Supply Frequency:
- 50/60 Hz +/- 5 %
- Sampling Duration:
- 20 ms +/- 1 ms logic input || 10 ms analogue input
- With Safety Function Safe Operating Stop (Sos):
- FALSE
- Product Certifications:
- NOM || CSA || C-tick || UL || GOST || RCM || KC
- Marking:
- CE
- Range Of Product:
- Altivar 12
- Ambient Air Temperature For Operation:
- -10-40 °C without derating || 40-60 °C with current derating 2.2 % per °C
- Type Of Polarization:
- no impedance
- Maximum Acceleration Under Shock Impact (During Operation):
- 150 m/s² at 11 ms
- Connector Type:
- 1 RJ45
- With Safety Function Safe Stop 1 (Ss1):
- FALSE
- Relative Symmetric Network Frequency Tolerance:
- 0.05
- Rohs Exemption Information:
- Yes
- Nominal Output Current:
- 3.5 A
- Assembly Style:
- with heat sink
- Speed Drive Output Frequency:
- 0.5-400 Hz
- Product Specific Application:
- simple machine
- Continuous Output Current:
- 3.5 A 4 kHz
- Acceleration And Deceleration Ramps:
- linear from 0 to 999.9 s || S || U
- With Safety Function Safe Direction (Sdi):
- FALSE
- Quantity Per Set:
- set of 1
- Relay Output Number:
- 1
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Maximum Transient Current:
- 5.3 A 60 s heavy duty) || 5.8 A 2 s heavy duty)
- Overvoltage Category:
- class III
- [Us] Rated Supply Voltage:
- 200...240 V - 15...10 %
- Maximum Output Voltage:
- 240 V
- With Safety Function Safe Position (Sp):
- FALSE
- Switching Frequency:
- 2...16 kHz adjustable || 4...16 kHz with derating factor
- Ambient Air Temperature For Storage:
- -25-70 °C
- Analogue Output Number:
- 1
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Mounting Mode:
- cabinet mount
- With Safety Function Safely Limited Speed (Sls):
- FALSE
- Emc Filter:
- integrated
- Environmental Class (During Operation):
- class 3C3 according to IEC 60721-3-3 || class 3S2 according to IEC 60721-3-3
- Maximum Deflection Under Vibratory Load (During Operation):
- 1.5 mm at 2...13 Hz
- Number Of Addresses:
- 1-247
- Speed Range:
- 45311
- Communication Service:
- read holding registers (03) 29 words || write single register (06) 29 words || write multiple registers (16) 27 words || read/write multiple registers (23) 4/4 words || read device identification (43)
- Nominal Switching Frequency:
- 4 kHz
- Shock Resistance:
- 15 gn 11 ms IEC 60068-2-27
- With Sft Fct Safe Stop 2 (Ss2):
- FALSE
- Motor Slip Compensation:
- preset in factory || adjustable
- Power Dissipation In W:
- natural 34.0 W
- Product Or Component Type:
- variable speed drive
- Electromagnetic Emission:
- radiated emissions environment 1 category C2 IEC 61800-3 2...16 kHz shielded motor cable || conducted emissions with integrated EMC filter environment 1 category C1 IEC 61800-3 2, 4, 8, 12 and 16 kHz shielded motor cable <5 m || conducted emissions w
- With Safety Function Safe Programmable Logic:
- FALSE
- With Safety Function Safe Brake Management (Sbc/Sbt):
- FALSE
- Maximum Output Frequency:
- 4 kHz
- Base Load Current At High Overload:
- 3.5 A
- With Safety Function Safely Limited Position (Slp):
- FALSE
- Maximum Acceleration Under Vibrational Stress (During Operation):
- 10 m/s² at 13...200 Hz
- Mercury Free:
- Yes
- Width:
- 72 mm
- China Rohs Regulation:
- X
- Operating Altitude:
- > 3280.84...6561.68 ft (> 1000...2000 m) with current derating 1 % per 100 m || <= 3280.84 ft (1000 m) without derating
- Discrete Output Number:
- 2
- Protection Type:
- line supply overvoltage || line supply undervoltage || overcurrent between output phases and earth || overheating protection || short-circuit between motor phases || against input phase loss in three-phase || thermal motor protection via the drive by
- Net Weight:
- 0.8 kg
- Ambient Air Transport Temperature:
- -25-70 °C
- Insulation:
- electrical between power and control
- Warranty:
- 18 months
- Apparent Power:
- 1.6 kVA 240 V heavy duty)
- Pollution Degree:
- 2
- Brake Chopper Integrated:
- FALSE
- Frequency Resolution:
- analog input converter A/D, 10 bits || display unit 0.1 Hz
- Height:
- 143 mm
- With Safety Function Safe Torque Off (Sto):
- FALSE
- Electromagnetic Compatibility:
- electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || electrostatic discharge immunity test level 3 IEC 61000-4-2 || immunity to conducted disturbances level 3 IEC 61000-4-6 || radiated radio-frequency electromagnetic field immunity
- With Safety Function Safe Speed Monitor (Ssm):
- FALSE
- Analogue Input Number:
- 1
- 4 Quadrant Operation Possible:
- FALSE
- Transmission Frame:
- RTU
- Regulation Loop:
- adjustable PID regulator
- Ip Degree Of Protection:
- IP20
- Vibration Resistance:
- 1 gn 13-200 Hz)IEC 60068-2-6 || 1.5 mm peak to peak 3-13 Hz) - drive unmounted on symmetrical DIN rail - IEC 60068-2-6
- Prospective Line Isc:
- 1 kA
- Time Constant:
- 20 ms +/- 1 ms for reference change
- Relative Humidity:
- 5-95 % without condensation IEC 60068-2-3 || 5-95 % without dripping water IEC 60068-2-3
- Linearity Error:
- +/- 0.3 % of maximum value analogue input
- Discrete Input Number:
- 4
- Tightening Torque:
- 0.8 N.m
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Noise Level:
- 0 dB
- Depth:
- 131.2 mm
- Operating Position:
- vertical +/- 10 degree
- Data Format:
- 8 bits, configurable odd, even or no parity
- Transmission Rate:
- 9.6 kbit/s || 19.2 kbit/s || 38.4 kbit/s
