Schneider Electric ATV12H055M2TQ Atv12 0.55Kw 240V 1Ph Heatsink Pack of 14

(No reviews yet) Write a Review

Write a Review

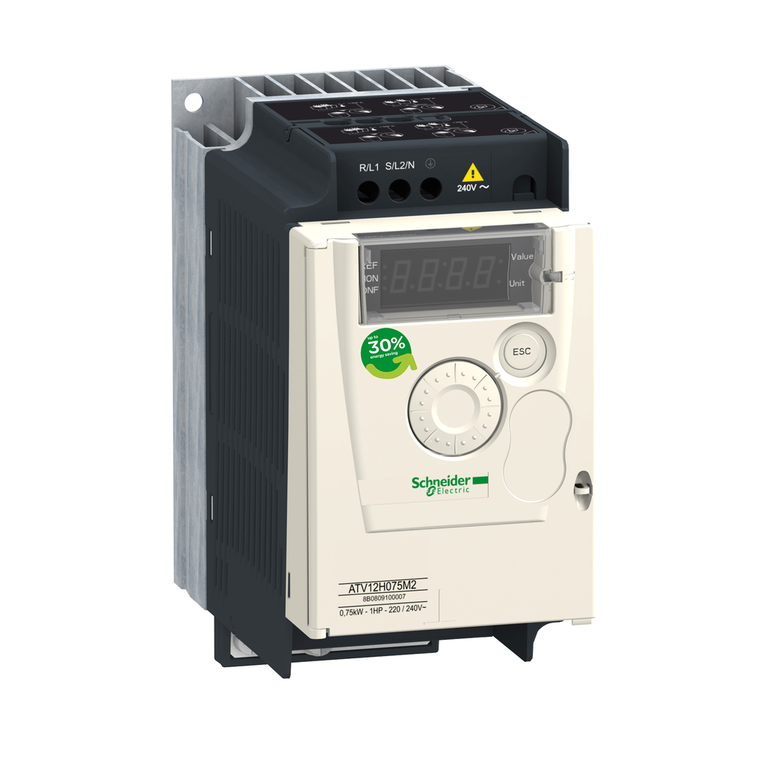

Schneider Electric ATV12H055M2TQ Atv12 0.55Kw 240V 1Ph Heatsink Pack of 14

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ATV12H055M2TQ

UPC:

3606480076589

MPN:

Condition:

New

Time Constant:

20 ms +/- 1 ms for reference change

With Safety Function Safe Programmable Logic:

FALSE

With Safety Function Safe Torque Off (Sto):

FALSE

Protection Type:

line supply overvoltage || line supply undervoltage || overcurrent between output phases and earth || overheating protection || short-circuit between motor phases || against input phase loss in three-phase || thermal motor protection via the drive by

Communication Port Protocol:

Modbus

Rohs Exemption Information:

Yes

Mercury Free:

Yes

Maximum Acceleration Under Shock Impact (During Operation):

150 m/s² at 11 ms

Maximum Acceleration Under Vibrational Stress (During Operation):

10 m/s² at 13...200 Hz

Acceleration And Deceleration Ramps:

U || S || linear from 0 to 999.9 s

Motor Slip Compensation:

adjustable || preset in factory

With Safety Function Safely Limited Speed (Sls):

FALSE

Sampling Duration:

20 ms +/- 1 ms logic input || 10 ms analogue input

Continuous Output Current:

3.5 A 4 kHz

Ambient Air Temperature For Operation:

-10-40 °C without derating || 40-60 °C with current derating 2.2 % per °C

Net Weight:

0.8 kg

Noise Level:

0 dB

Maximum Horse Power Rating:

0.75 hp

Nominal Output Current:

3.5 A

With Sft Fct Safe Stop 2 (Ss2):

FALSE

Product Certifications:

NOM || CSA || C-tick || UL || GOST || RCM || KC

Tightening Torque:

0.8 N.m

Discrete Input Number:

4

With Safety Function Safe Operating Stop (Sos):

FALSE

Network Frequency:

50-60 Hz

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Marking:

CE

Relative Humidity:

5-95 % without condensation IEC 60068-2-3 || 5-95 % without dripping water IEC 60068-2-3

Emc Filter:

integrated

With Safety Function Safe Stop 1 (Ss1):

FALSE

Brake Chopper Integrated:

FALSE

Prospective Line Isc:

1 kA

Transmission Rate:

9.6 kbit/s || 19.2 kbit/s || 38.4 kbit/s

Electromagnetic Emission:

radiated emissions environment 1 category C2 IEC 61800-3 2...16 kHz shielded motor cable || conducted emissions with integrated EMC filter environment 1 category C1 IEC 61800-3 2, 4, 8, 12 and 16 kHz shielded motor cable <5 m || conducted emissions w

Motor Power Kw:

0.55 kW

Supply Frequency:

50/60 Hz +/- 5 %

Type Of Polarization:

no impedance

Electromagnetic Compatibility:

electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || electrostatic discharge immunity test level 3 IEC 61000-4-2 || immunity to conducted disturbances level 3 IEC 61000-4-6 || radiated radio-frequency electromagnetic field immunity

Ambient Air Temperature For Storage:

-25-70 °C

Power Dissipation In W:

natural 34.0 W

Speed Range:

45311

Shock Resistance:

15 gn 11 ms IEC 60068-2-27

Method Of Access:

server Modbus serial

Environmental Class (During Operation):

class 3C3 according to IEC 60721-3-3 || class 3S2 according to IEC 60721-3-3

Analogue Input Number:

1

With Safety Function Safe Position (Sp):

FALSE

Assembly Style:

with heat sink

Warranty:

18 months

Overvoltage Category:

class III

Depth:

131.2 mm

Number Of Addresses:

1-247

With Safety Function Safely Limited Position (Slp):

FALSE

Nominal Switching Frequency:

4 kHz

Operating Position:

vertical +/- 10 degree

Vibration Resistance:

1 gn 13-200 Hz)IEC 60068-2-6 || 1.5 mm peak to peak 3-13 Hz) - drive unmounted on symmetrical DIN rail - IEC 60068-2-6

Quantity Per Set:

set of 14

Maximum Deflection Under Vibratory Load (During Operation):

1.5 mm at 2...13 Hz

Transient Overtorque:

150-170 % of nominal motor torque depending on drive rating and type of motor

Connector Type:

1 RJ45

Transmission Frame:

RTU

Braking To Standstill:

by DC injection

Pollution Degree:

2

Apparent Power:

1.6 kVA 240 V heavy duty)

Ambient Air Transport Temperature:

-25-70 °C

Range Of Product:

Altivar 12

Operating Altitude:

> 3280.84...6561.68 ft (> 1000...2000 m) with current derating 1 % per 100 m || <= 3280.84 ft (1000 m) without derating

Switching Frequency:

2...16 kHz adjustable || 4...16 kHz with derating factor

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Analogue Output Number:

1

Maximum Output Frequency:

4 kHz

Base Load Current At High Overload:

3.5 A

Relay Output Number:

1

Ip Degree Of Protection:

IP20

Insulation:

electrical between power and control

Maximum Output Voltage:

240 V

With Safety Function Safe Direction (Sdi):

FALSE

Frequency Resolution:

analog input converter A/D, 10 bits || display unit 0.1 Hz

Maximum Transient Current:

5.3 A 60 s heavy duty) || 5.8 A 2 s heavy duty)

Data Format:

8 bits, configurable odd, even or no parity

With Safety Function Safe Brake Management (Sbc/Sbt):

FALSE

Mounting Mode:

cabinet mount

Linearity Error:

+/- 0.3 % of maximum value analogue input

Asynchronous Motor Control Profile:

sensorless flux vector control || quadratic voltage/frequency ratio || voltage/frequency ratio (V/f)

Line Current:

8.0 A 100 V heavy duty) || 6.7 A 120 V heavy duty)

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Product Or Component Type:

variable speed drive

Height:

143 mm

China Rohs Regulation:

X

Discrete Output Number:

2

[Us] Rated Supply Voltage:

200...240 V - 15...10 %

Communication Service:

read holding registers (03) 29 words || write single register (06) 29 words || write multiple registers (16) 27 words || read/write multiple registers (23) 4/4 words || read device identification (43)

4 Quadrant Operation Possible:

FALSE

Speed Drive Output Frequency:

0.5-400 Hz

Regulation Loop:

adjustable PID regulator

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Physical Interface:

2-wire RS 485

Standards:

UL 508C || UL 618000-5-1 || IEC 61800-5-1 || IEC 61800-3

Width:

72 mm

Product Specific Application:

simple machine

Relative Symmetric Network Frequency Tolerance:

0.05

With Safety Function Safe Speed Monitor (Ssm):

FALSE
