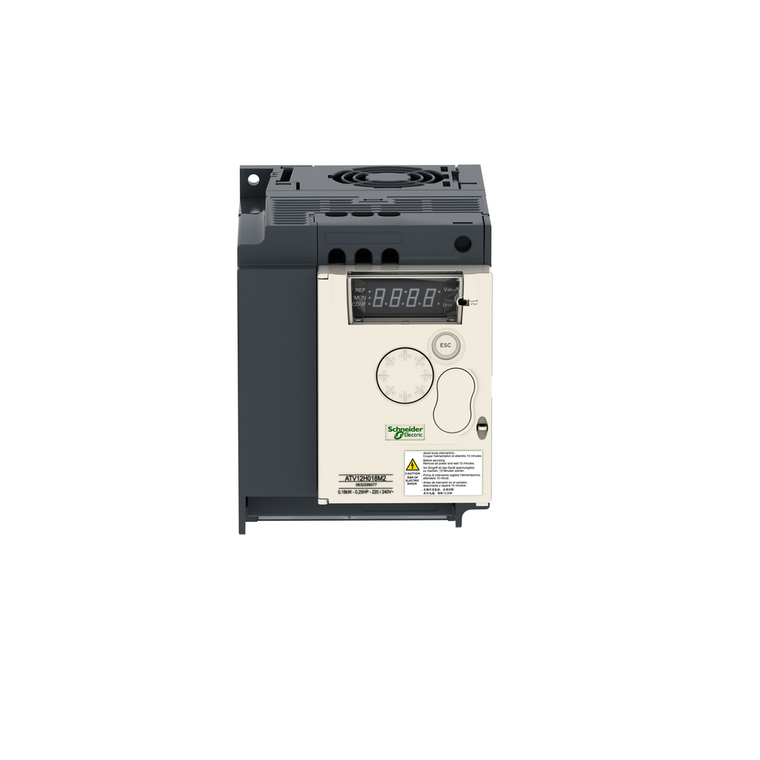

Schneider Electric ATV12H075F1 Atv12 0.75Kw 120V 1Ph Heat Sink Tb
Altivar Machine ATV12 is an offer of variable speed drives for commercial equipment and simple machines. It works at a rated power up to 0.75kW / 1hp and a rated voltage from 100V to 120V AC. It is designed with heatsink for normal environments and fan-cooled enclosure. It has advanced PID and catch on the fly functions, basic cabling, and easy motor control setting. Based on the needs, it can be delivered without heatsink, with embedded EMC filter, or as standard version. The Altivar 12 drive integrates as standard the Modbus communication protocol. This Altivar Machine ATV12 is designed for simple applications, in industry, commercial machines and HVAC machines such as conveyors, pumps, extractors, access barriers and treadmills. It conforms to IEC, UL and other international standards. SoMove software compatibility enables saving and transfering of configurations to spare drive, reducing maintenance downtime. It features an optimized application of power and torque for ventilation and pumping applications, this allows up to 30% energy savings.
- Emc Filter:
- without EMC filter
- Electromagnetic Emission:
- radiated emissions environment 1 category C2 EN/IEC 61800-3 2...16 kHz shielded motor cable || conducted emissions with additional EMC filter environment 1 category C1 EN/IEC 61800-3 4...12 kHz shielded motor cable <5 m || conducted emissions with ad
- With Safety Function Safe Operating Stop (Sos):
- FALSE
- Supply Frequency:
- 50/60 Hz +/- 5 %
- Product Specific Application:
- simple machine
- Net Weight:
- 1.3 kg
- Brake Chopper Integrated:
- FALSE
- Relay Output Number:
- 1
- Maximum Acceleration Under Shock Impact (During Operation):
- 150 m/s² at 11 ms
- Shock Resistance:
- 15 gn 11 ms EN/IEC 60068-2-27
- Ambient Air Temperature For Operation:
- -10-50 °C without derating || 50-60 °C with current derating 2.2 % per °C
- Data Format:
- 8 bits, configurable odd, even or no parity
- Communication Service:
- read holding registers (03) 29 words || write single register (06) 29 words || write multiple registers (16) 27 words || read/write multiple registers (23) 4/4 words || read device identification (43)
- Continuous Output Current:
- 4.2 A 4 kHz
- Product Or Component Type:
- variable speed drive
- Prospective Line Isc:
- 1 kA
- Connector Type:
- 1 RJ45
- Maximum Output Frequency:
- 4 kHz
- Maximum Horse Power Rating:
- 1 hp
- Nominal Switching Frequency:
- 4 kHz
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Discrete Output Number:
- 2
- Noise Level:
- 45 dB
- Acceleration And Deceleration Ramps:
- linear from 0 to 999.9 s || S || U
- China Rohs Regulation:
- X
- Sampling Duration:
- 20 ms +/- 1 ms logic input || 10 ms analogue input
- Speed Range:
- 45311
- Rohs Exemption Information:
- Yes
- Braking To Standstill:
- by DC injection
- Asynchronous Motor Control Profile:
- voltage/frequency ratio (V/f) || quadratic voltage/frequency ratio || sensorless flux vector control
- Environmental Class (During Operation):
- class 3C3 according to IEC 60721-3-3 || class 3S2 according to IEC 60721-3-3
- Discrete Input Number:
- 4
- Maximum Acceleration Under Vibrational Stress (During Operation):
- 10 m/s² at 13...200 Hz
- Transmission Rate:
- 9.6 kbit/s || 19.2 kbit/s || 38.4 kbit/s
- Vibration Resistance:
- 1 gn 13-200 Hz)EN/IEC 60068-2-6 || 1.5 mm peak to peak 3-13 Hz) - drive unmounted on symmetrical DIN rail - EN/IEC 60068-2-6
- Overvoltage Category:
- class III
- Relative Symmetric Network Frequency Tolerance:
- 0.05
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Tightening Torque:
- 1.2 N.m
- Transmission Frame:
- RTU
- Quantity Per Set:
- set of 1
- Height:
- 142 mm
- With Safety Function Safe Stop 1 (Ss1):
- FALSE
- Operating Altitude:
- > 3280.84...6561.68 ft (> 1000...2000 m) with current derating 1 % per 100 m || <= 3280.84 ft (1000 m) without derating
- Assembly Style:
- with heat sink
- Regulation Loop:
- adjustable PID regulator
- Power Dissipation In W:
- forced cooling 48.0 W
- Method Of Access:
- server Modbus serial
- With Safety Function Safe Torque Off (Sto):
- FALSE
- [Us] Rated Supply Voltage:
- 100...120 V - 15...10 %
- Width:
- 105 mm
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Standards:
- UL 508C || UL 618000-5-1 || EN/IEC 61800-5-1 || EN/IEC 61800-3
- Marking:
- CE
- With Safety Function Safely Limited Position (Slp):
- FALSE
- Volume Of Cooling Air:
- 16 m3/h
- 4 Quadrant Operation Possible:
- FALSE
- Analogue Input Number:
- 1
- Motor Power Kw:
- 0.75 kW
- Number Of Addresses:
- 1-247
- Switching Frequency:
- 2...16 kHz adjustable || 4...16 kHz with derating factor
- With Sft Fct Safe Stop 2 (Ss2):
- FALSE
- Physical Interface:
- 2-wire RS 485
- Ambient Air Temperature For Storage:
- -25-70 °C
- Nominal Output Current:
- 4.2 A
- With Safety Function Safe Direction (Sdi):
- FALSE
- Relative Humidity:
- 5-95 % without condensation IEC 60068-2-3 || 5-95 % without dripping water IEC 60068-2-3
- Maximum Transient Current:
- 6.3 A 60 s heavy duty) || 6.9 A 2 s heavy duty)
- Type Of Polarization:
- no impedance
- Range Of Product:
- Altivar 12
- With Safety Function Safely Limited Speed (Sls):
- FALSE
- With Safety Function Safe Speed Monitor (Ssm):
- FALSE
- Ambient Air Transport Temperature:
- -25-70 °C
- Depth:
- 156.2 mm
- Mounting Mode:
- cabinet mount
- Ip Degree Of Protection:
- IP20
- Operating Position:
- vertical +/- 10 degree
- Speed Drive Output Frequency:
- 0.5-400 Hz
- Analogue Output Number:
- 1
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- With Safety Function Safe Programmable Logic:
- FALSE
- Base Load Current At High Overload:
- 4.2 A
- Transient Overtorque:
- 150-170 % of nominal motor torque depending on drive rating and type of motor
- Insulation:
- electrical between power and control
- Motor Slip Compensation:
- preset in factory || adjustable
- Time Constant:
- 20 ms +/- 1 ms for reference change
- Maximum Deflection Under Vibratory Load (During Operation):
- 1.5 mm at 2...13 Hz
- With Safety Function Safe Brake Management (Sbc/Sbt):
- FALSE
- Linearity Error:
- +/- 0.3 % of maximum value analogue input
- Network Frequency:
- 50-60 Hz
- Warranty:
- 18 months
- Product Certifications:
- NOM || CSA || C-tick || UL || GOST || RCM || KC
- Maximum Output Voltage:
- 240 V
- With Safety Function Safe Position (Sp):
- FALSE
- Apparent Power:
- 1.9 kVA 240 V heavy duty)
- Protection Type:
- line supply overvoltage || line supply undervoltage || overcurrent between output phases and earth || overheating protection || short-circuit between motor phases || against input phase loss in three-phase || thermal motor protection via the drive by
- Communication Port Protocol:
- Modbus
- Frequency Resolution:
- analog input converter A/D, 10 bits || display unit 0.1 Hz
- Mercury Free:
- Yes
- Pollution Degree:
- 2
- Electromagnetic Compatibility:
- electrical fast transient/burst immunity test level 4 EN/IEC 61000-4-4 || electrostatic discharge immunity test level 3 EN/IEC 61000-4-2 || immunity to conducted disturbances level 3 EN/IEC 61000-4-6 || radiated radio-frequency electromagnetic field
- Line Current:
- 18.9 A 100 V heavy duty) || 15.7 A 120 V heavy duty)
