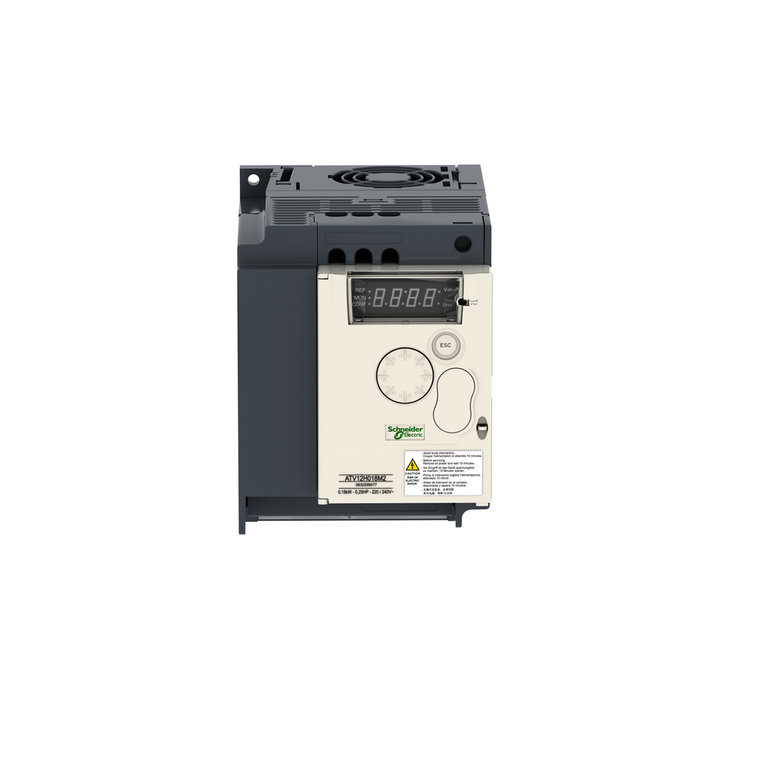

Schneider Electric ATV12HU22M2 Atv12 2.2Kw 240V 1Ph Heat Sink Tb
Altivar Machine ATV12 is an offer of variable speed drives for commercial equipment and simple machines. It works at a rated power up to 2.2kW / 3hp and a rated voltage from 200V to 240V AC. It is designed with heatsink for normal environments and fan-cooled enclosure. It has advanced PID and catch on the fly functions, basic cabling, and easy motor control setting. Based on the needs, it can be delivered without heatsink, with embedded EMC filter, or as standard version. The Altivar 12 drive integrates as standard the Modbus communication protocol. This Altivar Machine ATV12 is designed for simple applications, in industry, commercial machines and HVAC machines such as conveyors, pumps, extractors, access barriers and treadmills. It conforms to IEC, UL and other international standards. SoMove software compatibility enables saving and transfering of configurations to spare drive, reducing maintenance downtime. It features an optimized application of power and torque for ventilation and pumping applications, this allows up to 30% energy savings.
- Marking:
- CE
- Insulation:
- electrical between power and control
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Transmission Frame:
- RTU
- Operating Position:
- vertical +/- 10 degree
- With Safety Function Safely Limited Speed (Sls):
- FALSE
- Prospective Line Isc:
- 1 kA
- Relay Output Number:
- 1
- With Safety Function Safe Position (Sp):
- FALSE
- Protection Type:
- line supply overvoltage || line supply undervoltage || overcurrent between output phases and earth || overheating protection || short-circuit between motor phases || against input phase loss in three-phase || thermal motor protection via the drive by
- Assembly Style:
- with heat sink
- Discrete Input Number:
- 4
- Data Format:
- 8 bits, configurable odd, even or no parity
- Noise Level:
- 45 dB
- Range Of Product:
- Altivar 12
- Overvoltage Category:
- class III
- Physical Interface:
- 2-wire RS 485
- Ip Degree Of Protection:
- IP20
- Relative Humidity:
- 5-95 % without condensation IEC 60068-2-3 || 5-95 % without dripping water IEC 60068-2-3
- Base Load Current At High Overload:
- 10.0 A
- Time Constant:
- 20 ms +/- 1 ms for reference change
- Width:
- 105 mm
- With Safety Function Safe Programmable Logic:
- FALSE
- Line Current:
- 24.0 A 100 V heavy duty) || 20.2 A 120 V heavy duty)
- Asynchronous Motor Control Profile:
- sensorless flux vector control || quadratic voltage/frequency ratio || voltage/frequency ratio (V/f)
- Switching Frequency:
- 2...16 kHz adjustable || 4...16 kHz with derating factor
- Motor Power Kw:
- 2.2 kW
- Number Of Addresses:
- 1-247
- Electromagnetic Emission:
- radiated emissions environment 1 category C2 EN/IEC 61800-3 2...16 kHz shielded motor cable || conducted emissions with integrated EMC filter environment 1 category C1 EN/IEC 61800-3 2, 4, 8, 12 and 16 kHz shielded motor cable <5 m || conducted emiss
- Quantity Per Set:
- set of 1
- Ambient Air Transport Temperature:
- -25-70 °C
- Product Specific Application:
- simple machine
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- With Sft Fct Safe Stop 2 (Ss2):
- FALSE
- [Us] Rated Supply Voltage:
- 200...240 V - 15...10 %
- Braking To Standstill:
- by DC injection
- Speed Drive Output Frequency:
- 0.5-400 Hz
- Transmission Rate:
- 9.6 kbit/s || 19.2 kbit/s || 38.4 kbit/s
- Connector Type:
- 1 RJ45
- Electromagnetic Compatibility:
- electrical fast transient/burst immunity test level 4 EN/IEC 61000-4-4 || electrostatic discharge immunity test level 3 EN/IEC 61000-4-2 || immunity to conducted disturbances level 3 EN/IEC 61000-4-6 || radiated radio-frequency electromagnetic field
- With Safety Function Safe Stop 1 (Ss1):
- FALSE
- Communication Service:
- read holding registers (03) 29 words || write single register (06) 29 words || write multiple registers (16) 27 words || read/write multiple registers (23) 4/4 words || read device identification (43)
- With Safety Function Safe Direction (Sdi):
- FALSE
- Depth:
- 156.2 mm
- Supply Frequency:
- 50/60 Hz +/- 5 %
- Linearity Error:
- +/- 0.3 % of maximum value analogue input
- Maximum Acceleration Under Shock Impact (During Operation):
- 150 m/s² at 11 ms
- Shock Resistance:
- 15 gn 11 ms EN/IEC 60068-2-27
- Brake Chopper Integrated:
- FALSE
- Network Frequency:
- 50-60 Hz
- Analogue Input Number:
- 1
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Acceleration And Deceleration Ramps:
- linear from 0 to 999.9 s || U || S
- Power Dissipation In W:
- forced cooling 93.0 W
- Pollution Degree:
- 2
- With Safety Function Safely Limited Position (Slp):
- FALSE
- Environmental Class (During Operation):
- class 3C3 according to IEC 60721-3-3 || class 3S2 according to IEC 60721-3-3
- With Safety Function Safe Operating Stop (Sos):
- FALSE
- Sampling Duration:
- 20 ms +/- 1 ms logic input || 10 ms analogue input
- Ambient Air Temperature For Operation:
- -10-50 °C without derating || 50-60 °C with current derating 2.2 % per °C
- Maximum Horse Power Rating:
- 3 hp
- Net Weight:
- 1.4 kg
- Apparent Power:
- 4.8 kVA 240 V heavy duty)
- Vibration Resistance:
- 1 gn 13-200 Hz)EN/IEC 60068-2-6 || 1.5 mm peak to peak 3-13 Hz) - drive unmounted on symmetrical DIN rail - EN/IEC 60068-2-6
- Height:
- 142 mm
- With Safety Function Safe Brake Management (Sbc/Sbt):
- FALSE
- Product Certifications:
- NOM || CSA || C-tick || UL || GOST || RCM || KC
- Operating Altitude:
- > 3280.84...6561.68 ft (> 1000...2000 m) with current derating 1 % per 100 m || <= 3280.84 ft (1000 m) without derating
- China Rohs Regulation:
- X
- Speed Range:
- 45311
- 4 Quadrant Operation Possible:
- FALSE
- Method Of Access:
- server Modbus serial
- Product Or Component Type:
- variable speed drive
- Maximum Output Frequency:
- 4 kHz
- Frequency Resolution:
- analog input converter A/D, 10 bits || display unit 0.1 Hz
- Nominal Switching Frequency:
- 4 kHz
- Ambient Air Temperature For Storage:
- -25-70 °C
- Analogue Output Number:
- 1
- Mercury Free:
- Yes
- Motor Slip Compensation:
- adjustable || preset in factory
- Standards:
- UL 508C || UL 618000-5-1 || EN/IEC 61800-5-1 || EN/IEC 61800-3
- With Safety Function Safe Torque Off (Sto):
- FALSE
- Nominal Output Current:
- 0.416666666666667
- Maximum Acceleration Under Vibrational Stress (During Operation):
- 10 m/s² at 13...200 Hz
- Maximum Deflection Under Vibratory Load (During Operation):
- 1.5 mm at 2...13 Hz
- Emc Filter:
- integrated
- Transient Overtorque:
- 150-170 % of nominal motor torque depending on drive rating and type of motor
- Maximum Output Voltage:
- 240 V
- Maximum Transient Current:
- 15.0 A 60 s heavy duty) || 16.5 A 2 s heavy duty)
- Relative Symmetric Network Frequency Tolerance:
- 0.05
- With Safety Function Safe Speed Monitor (Ssm):
- FALSE
- Rohs Exemption Information:
- Yes
- Warranty:
- 18 months
- Mounting Mode:
- cabinet mount
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Continuous Output Current:
- 10 A 4 kHz
- Tightening Torque:
- 1.2 N.m
- Volume Of Cooling Air:
- 16 m3/h
- Regulation Loop:
- adjustable PID regulator
- Communication Port Protocol:
- Modbus
- Type Of Polarization:
- no impedance
- Discrete Output Number:
- 2
