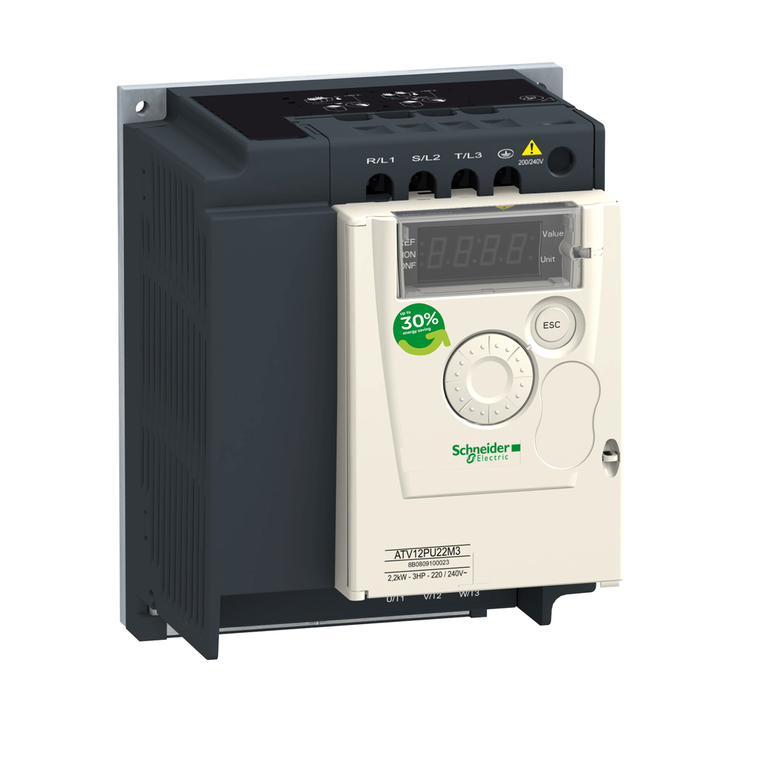

Schneider Electric ATV12PU22M3 Atv12 2.2Kw 240V 3Ph Base Plate
Schneider Electric
$480.41
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric ATV12PU22M3 Atv12 2.2Kw 240V 3Ph Base Plate
Altivar Machine ATV12 is an offer of variable speed drives for commercial equipment and simple machines. It works at a rated power up to 2.2kW / 3hp and a rated voltage from 200V to 240V AC. It is designed on a base plate for mounting on the machine frame. The frame surface area should allow heat to dissipate. It has advanced PID and catch on the fly functions, basic cabling, and easy motor control setting. Based on the needs, it can be delivered without heatsink, with embedded EMC filter, or as standard version. The Altivar 12 drive integrates as standard the Modbus communication protocol. This Altivar Machine ATV12 is designed for simple applications, in industry, commercial machines and HVAC machines such as conveyors, pumps, extractors, access barriers and treadmills. It conforms to IEC, UL and other international standards. SoMove software compatibility enables saving and transfering of configurations to spare drive, reducing maintenance downtime. It features an optimized application of power and torque for ventilation and pumping applications, this allows up to 30% energy savings. The ATV12 range meets basic machine requirements united with simplicity.
- Maximum Transient Current:
- 15.0 A 60 s heavy duty) || 16.5 A 2 s heavy duty)
- Type Of Polarization:
- no impedance
- Time Constant:
- 20 ms +/- 1 ms for reference change
- Analogue Input Number:
- 1
- Pollution Degree:
- 2
- With Safety Function Safe Position (Sp):
- FALSE
- Assembly Style:
- on base plate
- Line Current:
- 14.9 A 100 V heavy duty) || 12.5 A 120 V heavy duty)
- Tightening Torque:
- 1.2 N.m
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Standards:
- UL 508C || UL 618000-5-1 || IEC 61800-5-1 || IEC 61800-3
- [Us] Rated Supply Voltage:
- 200...240 V - 15...10 %
- Product Or Component Type:
- variable speed drive
- Rohs Exemption Information:
- Yes
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Vibration Resistance:
- 1 gn 13-200 Hz)IEC 60068-2-6 || 1.5 mm peak to peak 3-13 Hz) - drive unmounted on symmetrical DIN rail - IEC 60068-2-6
- Shock Resistance:
- 15 gn 11 ms IEC 60068-2-27
- Communication Service:
- read holding registers (03) 29 words || write single register (06) 29 words || write multiple registers (16) 27 words || read/write multiple registers (23) 4/4 words || read device identification (43)
- Insulation:
- electrical between power and control
- Product Specific Application:
- simple machine
- With Safety Function Safe Torque Off (Sto):
- FALSE
- Asynchronous Motor Control Profile:
- sensorless flux vector control || quadratic voltage/frequency ratio || voltage/frequency ratio (V/f)
- Operating Position:
- vertical +/- 10 degree
- Mercury Free:
- Yes
- Frequency Resolution:
- analog input converter A/D, 10 bits || display unit 0.1 Hz
- Maximum Horse Power Rating:
- 3 hp
- With Safety Function Safely Limited Position (Slp):
- FALSE
- Speed Drive Output Frequency:
- 0.5-400 Hz
- Mounting Mode:
- cabinet mount
- Connector Type:
- 1 RJ45
- Relative Symmetric Network Frequency Tolerance:
- 0.05
- Base Load Current At High Overload:
- 10.0 A
- Regulation Loop:
- adjustable PID regulator
- Relay Output Number:
- 1
- Noise Level:
- 0 dB
- Ambient Air Temperature For Operation:
- -10-40 °C without derating || 40-60 °C with current derating 2.2 % per °C
- Maximum Output Voltage:
- 240 V
- Overvoltage Category:
- class III
- 4 Quadrant Operation Possible:
- FALSE
- Height:
- 143 mm
- With Safety Function Safe Stop 1 (Ss1):
- FALSE
- With Sft Fct Safe Stop 2 (Ss2):
- FALSE
- Apparent Power:
- 5.2 kVA 240 V heavy duty)
- Number Of Addresses:
- 1-247
- China Rohs Regulation:
- X
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Network Frequency:
- 50-60 Hz
- Data Format:
- 8 bits, configurable odd, even or no parity
- Relative Humidity:
- 5-95 % without condensation IEC 60068-2-3 || 5-95 % without dripping water IEC 60068-2-3
- Brake Chopper Integrated:
- FALSE
- Supply Frequency:
- 50/60 Hz +/- 5 %
- Protection Type:
- line supply overvoltage || line supply undervoltage || overcurrent between output phases and earth || overheating protection || short-circuit between motor phases || against input phase loss in three-phase || thermal motor protection via the drive by
- Maximum Output Frequency:
- 4 kHz
- Marking:
- CE
- Range Of Product:
- Altivar 12
- Maximum Deflection Under Vibratory Load (During Operation):
- 1.5 mm at 2...13 Hz
- Width:
- 105 mm
- Prospective Line Isc:
- 5 kA
- Braking To Standstill:
- by DC injection
- Ambient Air Temperature For Storage:
- -25-70 °C
- Product Certifications:
- NOM || CSA || C-tick || UL || GOST || RCM || KC
- With Safety Function Safe Brake Management (Sbc/Sbt):
- FALSE
- Discrete Output Number:
- 2
- Transient Overtorque:
- 150-170 % of nominal motor torque depending on drive rating and type of motor
- Quantity Per Set:
- set of 1
- Depth:
- 98.2 mm
- Maximum Acceleration Under Vibrational Stress (During Operation):
- 10 m/s² at 13...200 Hz
- Discrete Input Number:
- 4
- With Safety Function Safe Programmable Logic:
- FALSE
- With Safety Function Safe Speed Monitor (Ssm):
- FALSE
- Analogue Output Number:
- 1
- Emc Filter:
- without EMC filter
- Motor Slip Compensation:
- adjustable || preset in factory
- Continuous Output Current:
- 10 A 4 kHz
- Maximum Acceleration Under Shock Impact (During Operation):
- 150 m/s² at 11 ms
- With Safety Function Safely Limited Speed (Sls):
- FALSE
- Linearity Error:
- +/- 0.3 % of maximum value analogue input
- Environmental Class (During Operation):
- class 3C3 according to IEC 60721-3-3 || class 3S2 according to IEC 60721-3-3
- Net Weight:
- 1 kg
- Speed Range:
- 45311
- Power Dissipation In W:
- natural 85.0 W
- Nominal Output Current:
- 0.416666666666667
- With Safety Function Safe Direction (Sdi):
- FALSE
- Electromagnetic Emission:
- radiated emissions environment 1 category C2 IEC 61800-3 2...16 kHz shielded motor cable || conducted emissions with additional EMC filter environment 1 category C1 IEC 61800-3 4...12 kHz shielded motor cable <5 m || conducted emissions with addition
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Transmission Frame:
- RTU
- With Safety Function Safe Operating Stop (Sos):
- FALSE
- Method Of Access:
- server Modbus serial
- Nominal Switching Frequency:
- 4 kHz
- Operating Altitude:
- <= 3280.84 ft (1000 m) without derating || > 3280.84...9842.52 ft (> 1000...3000 m) with current derating 1 % per 100 m
- Switching Frequency:
- 2...16 kHz adjustable || 4...16 kHz with derating factor
- Sampling Duration:
- 20 ms +/- 1 ms logic input || 10 ms analogue input
- Motor Power Kw:
- 2.2 kW
- Communication Port Protocol:
- Modbus
- Transmission Rate:
- 9.6 kbit/s || 19.2 kbit/s || 38.4 kbit/s
- Ambient Air Transport Temperature:
- -25-70 °C
- Acceleration And Deceleration Ramps:
- S || linear from 0 to 999.9 s || U
- Ip Degree Of Protection:
- IP20
- Physical Interface:
- 2-wire RS 485
- Warranty:
- 18 months
- Electromagnetic Compatibility:
- electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || electrostatic discharge immunity test level 3 IEC 61000-4-2 || immunity to conducted disturbances level 3 IEC 61000-4-6 || radiated radio-frequency electromagnetic field immunity
