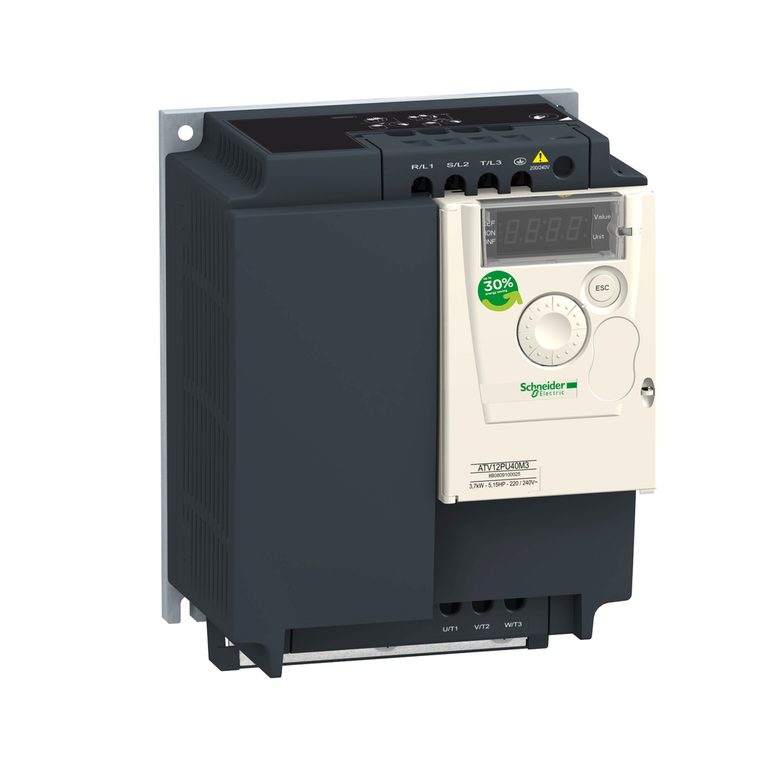

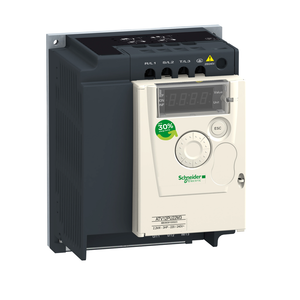

Schneider Electric ATV12PU40M3 Atv12 4Kw 240V 3Ph Base Plate Tb
Altivar Machine ATV12 is an offer of variable speed drives for commercial equipment and simple machines. The drive can feed three-phase asynchronous motors. It works at a rated power up to 4kW, and a rated voltage from 200V to 240V. It has advanced PID and catch on the fly functions, basic cabling, and easy motor control setting. Based on the needs, it can be delivered without heatsink, with embedded EMC filter, or as standard version. The Altivar 12 drive integrates as standard the Modbus communication protocol. It weighs 1.6kg. This Altivar Machine ATV12 is designed for simple applications, in industry, commercial machines and HVAC machines such as conveyors, pumps, extractors, access barriers and treadmills. It conforms to IEC, UL and other international standards. SoMove software compatibility enables saving and transfering of configurations to spare drive, thus reducing maintenance downtime. This reference is sold individually. ATV12 can be installed alone or side by side in a multi-drive configuration. The ATV12 range meets basic machine requirements united with simplicity.
- Base Load Current At High Overload:
- 16.7 A
- With Safety Function Safe Operating Stop (Sos):
- FALSE
- 4 Quadrant Operation Possible:
- FALSE
- Quantity Per Set:
- set of 1
- Continuous Output Current:
- 16.7 A 4 kHz
- Electromagnetic Compatibility:
- electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || electrostatic discharge immunity test level 3 IEC 61000-4-2 || immunity to conducted disturbances level 3 IEC 61000-4-6 || radiated radio-frequency electromagnetic field immunity
- Asynchronous Motor Control Profile:
- quadratic voltage/frequency ratio || sensorless flux vector control || voltage/frequency ratio (V/f)
- Acceleration And Deceleration Ramps:
- S || linear from 0 to 999.9 s || U
- Linearity Error:
- +/- 0.3 % of maximum value analogue input
- Maximum Transient Current:
- 25.0 A 60 s heavy duty) || 27.6 A 2 s heavy duty)
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Speed Drive Output Frequency:
- 0.5-400 Hz
- Emc Filter:
- without EMC filter
- Maximum Acceleration Under Shock Impact (During Operation):
- 150 m/s² at 11 ms
- Vibration Resistance:
- 1 gn 13-200 Hz)IEC 60068-2-6 || 1.5 mm peak to peak 3-13 Hz) - drive unmounted on symmetrical DIN rail - IEC 60068-2-6
- Protection Type:
- line supply overvoltage || line supply undervoltage || overcurrent between output phases and earth || overheating protection || short-circuit between motor phases || against input phase loss in three-phase || thermal motor protection via the drive by
- Relative Humidity:
- 5-95 % without condensation IEC 60068-2-3 || 5-95 % without dripping water IEC 60068-2-3
- With Safety Function Safe Speed Monitor (Ssm):
- FALSE
- Motor Slip Compensation:
- preset in factory || adjustable
- Noise Level:
- 0 dB
- Maximum Deflection Under Vibratory Load (During Operation):
- 1.5 mm at 2...13 Hz
- Range Of Product:
- Altivar 12
- Time Constant:
- 20 ms +/- 1 ms for reference change
- China Rohs Regulation:
- X
- Pollution Degree:
- 2
- Ip Degree Of Protection:
- IP20
- Line Current:
- 23.8 A 100 V heavy duty) || 19.9 A 120 V heavy duty)
- With Safety Function Safe Stop 1 (Ss1):
- FALSE
- Prospective Line Isc:
- 5 kA
- Assembly Style:
- on base plate
- Data Format:
- 8 bits, configurable odd, even or no parity
- With Safety Function Safe Programmable Logic:
- FALSE
- Depth:
- 100.2 mm
- Maximum Horse Power Rating:
- 5 hp
- Overvoltage Category:
- class III
- Discrete Output Number:
- 2
- With Safety Function Safely Limited Speed (Sls):
- FALSE
- Maximum Output Frequency:
- 4 kHz
- Operating Altitude:
- <= 3280.84 ft (1000 m) without derating || > 3280.84...9842.52 ft (> 1000...3000 m) with current derating 1 % per 100 m
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- With Safety Function Safely Limited Position (Slp):
- FALSE
- Power Dissipation In W:
- natural 128.0 W
- Analogue Input Number:
- 1
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Sampling Duration:
- 20 ms +/- 1 ms logic input || 10 ms analogue input
- Nominal Switching Frequency:
- 4 kHz
- Ambient Air Transport Temperature:
- -25-70 °C
- Ambient Air Temperature For Storage:
- -25-70 °C
- With Safety Function Safe Brake Management (Sbc/Sbt):
- FALSE
- Transient Overtorque:
- 150-170 % of nominal motor torque depending on drive rating and type of motor
- Marking:
- CE
- With Safety Function Safe Torque Off (Sto):
- FALSE
- Switching Frequency:
- 2...16 kHz adjustable || 4...16 kHz with derating factor
- Operating Position:
- vertical +/- 10 degree
- Electromagnetic Emission:
- radiated emissions environment 1 category C2 IEC 61800-3 2...16 kHz shielded motor cable || conducted emissions IEC 61800-3
- Type Of Polarization:
- no impedance
- Width:
- 140 mm
- Nominal Output Current:
- 16.7 A
- Transmission Frame:
- RTU
- Shock Resistance:
- 15 gn 11 ms IEC 60068-2-27
- Product Specific Application:
- simple machine
- Product Certifications:
- NOM || CSA || C-tick || UL || GOST || RCM || KC
- Tightening Torque:
- 1.2 N.m
- Brake Chopper Integrated:
- FALSE
- Standards:
- UL 508C || UL 618000-5-1 || IEC 61800-5-1 || IEC 61800-3
- Maximum Output Voltage:
- 240 V
- Environmental Class (During Operation):
- class 3C3 according to IEC 60721-3-3 || class 3S2 according to IEC 60721-3-3
- Mercury Free:
- Yes
- Rohs Exemption Information:
- Yes
- Relay Output Number:
- 1
- Warranty:
- 18 months
- Insulation:
- electrical between power and control
- Relative Symmetric Network Frequency Tolerance:
- 0.05
- Ambient Air Temperature For Operation:
- -10-40 °C without derating || 40-60 °C with current derating 2.2 % per °C
- Height:
- 184 mm
- Transmission Rate:
- 9.6 kbit/s || 19.2 kbit/s || 38.4 kbit/s
- Number Of Addresses:
- 1-247
- Braking To Standstill:
- by DC injection
- Physical Interface:
- 2-wire RS 485
- Product Or Component Type:
- variable speed drive
- With Sft Fct Safe Stop 2 (Ss2):
- FALSE
- Analogue Output Number:
- 1
- With Safety Function Safe Direction (Sdi):
- FALSE
- Net Weight:
- 1.6 kg
- Network Frequency:
- 50-60 Hz
- Supply Frequency:
- 50/60 Hz +/- 5 %
- Apparent Power:
- 8.3 kVA 240 V heavy duty)
- [Us] Rated Supply Voltage:
- 200...240 V - 15...10 %
- Motor Power Kw:
- 4 kW
- Communication Port Protocol:
- Modbus
- With Safety Function Safe Position (Sp):
- FALSE
- Communication Service:
- read holding registers (03) 29 words || write single register (06) 29 words || write multiple registers (16) 27 words || read/write multiple registers (23) 4/4 words || read device identification (43)
- Method Of Access:
- server Modbus serial
- Discrete Input Number:
- 4
- Maximum Acceleration Under Vibrational Stress (During Operation):
- 10 m/s² at 13...200 Hz
- Regulation Loop:
- adjustable PID regulator
- Connector Type:
- 1 RJ45
- Speed Range:
- 45311
- Mounting Mode:
- cabinet mount
- Frequency Resolution:
- analog input converter A/D, 10 bits || display unit 0.1 Hz
