Schneider Electric ATV212HD15N4 Atv212 15Kw 20Hp 480V Tri Cem Ip20
Schneider Electric
$2,010.53

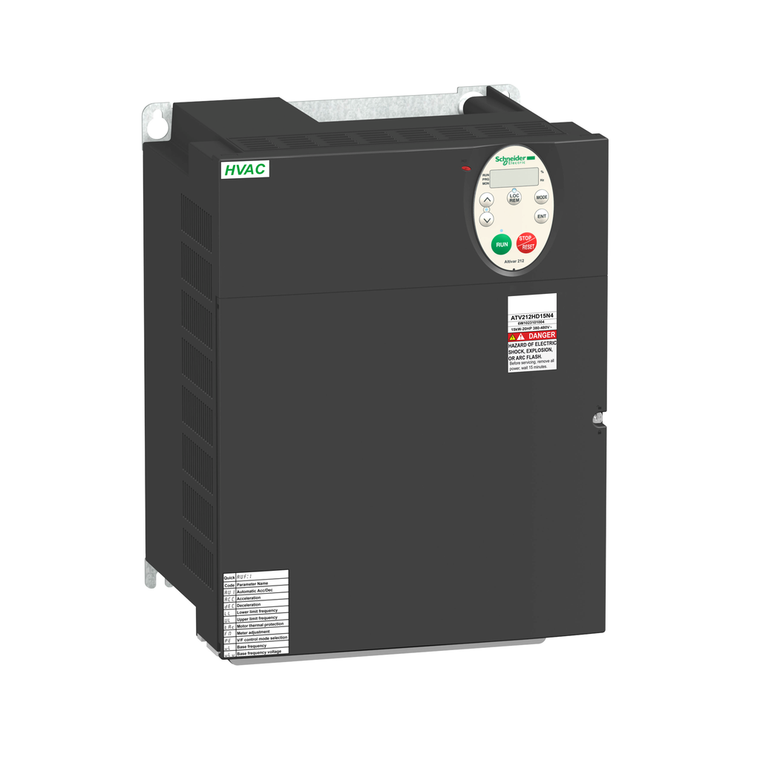

This Altivar 212 variable speed drive can feed 3-phase asynchronous motors. Its protection index is IP21 and it has a built-in EMC filter. It works at a rated power up to 15kW / 20hp and a rated voltage from 380V to 480V AC. Its design is based on eco-energy with a reduction in energy consumption of up to 70% compared to a conventional control system. Thanks to its cable temperature rise reduction technology, the Altivar 212 drive offers immediate, disturbance-free operation avoiding additional options such as a line choke or DC choke to deal with current harmonics. It weighs 11.65kg and its dimensions are, 245mm wide, 330mm high, 190mm deep. It is specifically designed for the most common fluid management applications in tertiary sector buildings (HVAC) like heating, ventilation, air conditioning and pumping. It conforms to international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 (immunity and conducted and radiated EMC emissions). It is also CE, UL, CSA, C-Tick and NOM certified. The Altivar 212 offers optional motor chokes which can increase the maximum cable lengths between the drive and the motor and limit disturbance at the motor terminals. It is designed to be mounted in vertical position (+/- 10 °) on a panel, thanks to 4 fixing holes. The Altivar 212 drive can easily be adapted to all building management systems thanks to its numerous functions and communication protocols integrated as standard, Modbus, METASYS N2, APOGEE FLN P1 and BACnet.
- Maximum Transient Current:
- 33.6 A 60 s
- Analogue Input Number:
- 2
- Mercury Free:
- Yes
- Tightening Torque:
- 0.6 N.m VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES) || 4.5 N.m, 40 lb.in L1/R, L2/S, L3/T)
- Motor Power Kw:
- 15 kW
- Power Dissipation In W:
- 625 W
- Dielectric Strength:
- 3535 V DC between earth and power terminals || 5092 V DC between control and power terminals
- Isolation:
- electrical between power and control
- Regulation Loop:
- adjustable PI regulator
- Insulation Resistance:
- >= 1 mOhm 500 V DC for 1 minute
- Response Time:
- FM 2 ms +/- 0.5 ms analog || FLA, FLC 7 ms +/- 0.5 ms discrete || FLB, FLC 7 ms +/- 0.5 ms discrete || RY, RC 7 ms +/- 0.5 ms discrete
- Electromagnetic Compatibility:
- electrostatic discharge immunity test level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge im
- Supply Frequency:
- 50...60 Hz - 5...5 %
- Motor Slip Compensation:
- automatic whatever the load || not available in voltage/frequency ratio motor control || adjustable
- Continuous Output Current:
- 30.5 A 380 V || 30.5 A 460 V
- Electrical Connection:
- VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES terminal 2.5-2.5 mm² / AWG 14 || L1/R, L2/S, L3/T terminal 25-25 mm² / AWG 3
- Prospective Line Isc:
- 22 kA
- Analogue Output Type:
- FM switch-configurable voltage 0...10 V DC 7620 Ohm 10 bits || FM switch-configurable current 0...20 mA 970 Ohm 10 bits
- Relative Humidity:
- 5-95 % without condensation IEC 60068-2-3 || 5-95 % without dripping water IEC 60068-2-3
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Operating Altitude:
- 3280.84...9842.52 ft (1000...3000 m) limited to 2000 m for the Corner Grounded distribution network with current derating 1 % per 100 m || <= 3280.84 ft (1000 m) without derating
- Discrete Output Number:
- 2
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Physical Interface:
- 2-wire RS 485
- Analogue Output Number:
- 1
- Apparent Power:
- 23.2 kVA 380 V
- Torque Accuracy:
- +/- 15 %
- Connector Type:
- 1 open style || 1 RJ45
- Air Flow:
- 206 m3/h
- Marking:
- CE
- Depth:
- 190 mm
- Minimum Switching Current:
- 3 mA 24 V DC configurable relay logic
- Width:
- 245 mm
- Height:
- 330 mm
- Range Of Product:
- Altivar 212
- Transient Overtorque:
- 120-120 % of nominal motor torque +/- 10 % 60 s
- Acceleration And Deceleration Ramps:
- linear adjustable separately from 0.01 to 3200 s || automatic based on the load
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Noise Level:
- 54 dB 86/188/EEC
- Type Of Cable:
- without mounting kit 1 IEC cable 45 °C, copper 90 °C / XLPE/EPR || without mounting kit 1 IEC cable 45 °C, copper 70 °C / PVC || with UL Type 1 kit 3 UL 508 cable 40 °C, copper 75 °C / PVC
- Product Destination:
- asynchronous motors
- Product Specific Application:
- pumps and fans in HVAC
- Specific Application:
- HVAC
- Functionality:
- mid
- Linearity Error:
- VIA +/- 0.15 % of maximum value input || VIB +/- 0.15 % of maximum value input || FM +/- 0.2 % output
- Frequency Resolution:
- display unit 0.1 Hz || analog input 0.024/50 Hz
- Nominal Switching Frequency:
- 12 kHz
- Sampling Duration:
- 2 ms +/- 0.5 ms F discrete || 2 ms +/- 0.5 ms R discrete || 2 ms +/- 0.5 ms RES discrete || 3.5 ms +/- 0.5 ms VIA analog || 22 ms +/- 0.5 ms VIB analog
- Braking To Standstill:
- by DC injection
- Product Or Component Type:
- variable speed drive
- Standards:
- IEC 61800-3 category C2 || EN 61800-3 category C3 || IEC 61800-3 category C3 || IEC 61800-5-1 || IEC 61800-3 environments 2 category C1 || EN 55011 class A group 1 || IEC 61800-3 environments 2 category C2 || IEC 61800-3 environments 1 category C2 ||
- Discrete Input Logic:
- positive logic (source) F, R, RES), <= 5 V, >= 11 V || negative logic (sink) F, R, RES), >= 16 V, <= 10 V
- Ambient Air Temperature For Operation:
- -10-40 °C without derating) || 40-50 °C with derating factor)
- [Us] Rated Supply Voltage:
- 380...480 V - 15...10 %
- Rohs Exemption Information:
- Yes
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Discrete Output Type:
- configurable relay logic FLA, FLC) NO - 100000 cycles || configurable relay logic FLB, FLC) NC - 100000 cycles || configurable relay logic RY, RC) NO - 100000 cycles
- Output Voltage:
- <= power supply voltage
- Network Frequency:
- 47.5...63 Hz
- Product Certifications:
- CSA || UL || C-tick || NOM 117
- Environmental Characteristic:
- classes 3C1 IEC 60721-3-3 || classes 3S2 IEC 60721-3-3
- Maximum Switching Current:
- 5 A 250 V AC resistive cos phi = 1 L/R = 0 ms FL, R) || 5 A 30 V DC resistive cos phi = 1 L/R = 0 ms FL, R) || 2 A 250 V AC inductive cos phi = 0.4 L/R = 7 ms FL, R) || 2 A 30 V DC inductive cos phi = 0.4 L/R = 7 ms FL, R)
- Option Card:
- communication card LonWorks
- Vibration Resistance:
- 1.5 mm 3-13 Hz)IEC 60068-2-6 || 1 gn 13-200 Hz)EN/IEC 60068-2-8
- Shock Resistance:
- 15 gn 11 ms IEC 60068-2-27
- Data Format:
- 8 bits, 1 stop, odd even or no configurable parity
- Power Range:
- 15-25 kW 380-440 V 3 phase || 15-25 kW 480-500 V 3 phase
- Line Current:
- 22.8 A 480 V || 28.5 A 380 V
- Ip Degree Of Protection:
- IP20 on upper part without blanking plate on cover IEC 61800-5-1 || IP20 on upper part without blanking plate on cover IEC 60529 || IP21 IEC 61800-5-1 || IP21 IEC 60529 || IP41 on upper part IEC 61800-5-1 || IP41 on upper part IEC 60529
- Speed Accuracy:
- +/- 10 % of nominal slip 0.2 Tn to Tn
- Asynchronous Motor Control Profile:
- flux vector control without sensor, standard || voltage/frequency ratio, 2 points || voltage/frequency ratio, automatic IR compensation (U/f + automatic Uo) || voltage/frequency ratio - Energy Saving, quadratic U/f || voltage/frequency ratio, 5 point
- Protection Type:
- overheating protection drive || thermal power stage drive || short-circuit between motor phases drive || input phase breaks drive || overcurrent between output phases and earth drive || overvoltages on the DC bus drive || break on the control circuit
- Local Signalling:
- for DC bus energized 1 LED (red)
- Discrete Input Type:
- F programmable 24 V DC level 1 PLC 4700 Ohm || R programmable 24 V DC level 1 PLC 4700 Ohm || RES programmable 24 V DC level 1 PLC 4700 Ohm
- Net Weight:
- 11.65 kg
- China Rohs Regulation:
- X
- Emc Filter:
- Class C2 EMC filter integrated
- Communication Service:
- time out setting from 0.1 to 100 s || read device identification (43) || monitoring inhibitable || write single register (06) || write multiple registers (16) 2 words maximum || read holding registers (03) 2 words maximum
- Motor Starter Type:
- variable speed drive
- Device Short Name:
- ATV212
- Accuracy:
- +/- 0.6 % VIA) for a temperature variation 60 °C || +/- 0.6 % VIB) for a temperature variation 60 °C || +/- 1 % FM) for a temperature variation 60 °C
- Assembly Style:
- with heat sink
- Maximum Horse Power Rating:
- 20 hp
- Ambient Air Temperature For Storage:
- -25-70 °C
- Pollution Degree:
- 2 IEC 61800-5-1
- Supply:
- internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 A overload and short-circuit protection || internal supply 24 V DC 21-27 V), <200 A overload and short-circuit protection
- Supply Voltage Limits:
- 323-528 V
- Transmission Rate:
- 9600 bps or 19200 bps
- Warranty:
- 18 months
- Type Of Polarization:
- no impedance
- Analogue Input Type:
- VIA switch-configurable voltage 0...10 V DC 24 V max 30000 Ohm 10 bits || VIB configurable voltage 0...10 V DC 24 V max 30000 Ohm 10 bits || VIB configurable PTC probe 0...6 probes 1500 Ohm || VIA switch-configurable current 0...20 mA 250 Ohm 10 bits
- Number Of Addresses:
- 1-247
- Ip Degree Of Protection:
- IP21
- Speed Range:
- 45301
- Communication Port Protocol:
- BACnet || Modbus || METASYS N2 || APOGEE FLN || LonWorks
- Speed Drive Output Frequency:
- 0.5-200 Hz
- Switching Frequency:
- 6...16 kHz adjustable || 12...16 kHz with derating factor
- Phase:
- 3 phase
- Operating Position:
- vertical +/- 10 degree
- Discrete And Process Manufacturing:
- building - HVAC compressor for scroll || building - HVAC fan || building - HVAC pump
- Transmission Frame:
- RTU
