Schneider Electric ATV212HD18N4 Atv212 18,5Kw 25Hp 480V Tri Cem Ip20

Schneider Electric ATV212HD18N4 Atv212 18,5Kw 25Hp 480V Tri Cem Ip20

Schneider Electric
SKU:
ATV212HD18N4
|
UPC:
3.60648E+12
$2,642.85
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

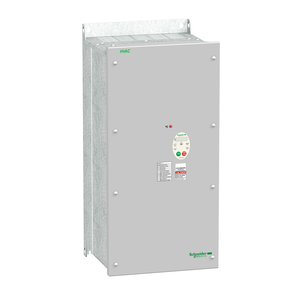

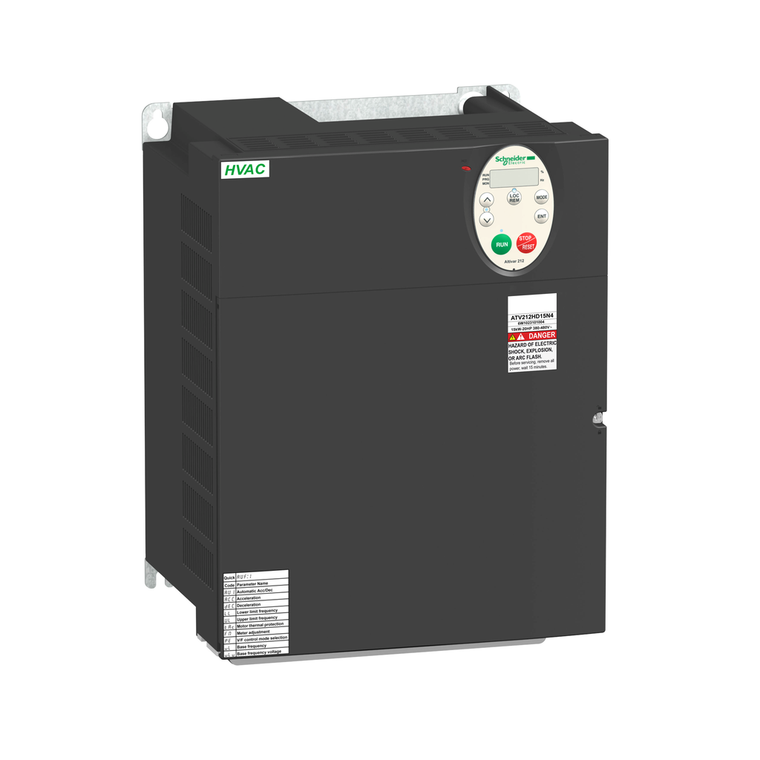

This Altivar 212 variable speed drive can feed 3-phase asynchronous motors. Its protection index is IP21 and it has a built-in EMC filter. It works at a rated power up to 18.5kW / 25hp and a rated voltage from 380V to 480V AC. Its design is based on eco-energy with a reduction in energy consumption of up to 70% compared to a conventional control system. Thanks to its cable temperature rise reduction technology, the Altivar 212 drive offers immediate, disturbance-free operation avoiding additional options such as a line choke or DC choke to deal with current harmonics. It weighs 11.65kg and its dimensions are, 245mm wide, 330mm high, 190mm deep. It is specifically designed for the most common fluid management applications in tertiary sector buildings (HVAC) like heating, ventilation, air conditioning and pumping. It conforms to international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 (immunity and conducted and radiated EMC emissions). It is also CE, UL, CSA, C-Tick and NOM certified. The Altivar 212 offers optional motor chokes which can increase the maximum cable lengths between the drive and the motor and limit disturbance at the motor terminals. It is designed to be mounted in vertical position (+/- 10 °) on a panel, thanks to 4 fixing holes. The Altivar 212 drive can easily be adapted to all building management systems thanks to its numerous functions and communication protocols integrated as standard, Modbus, METASYS N2, APOGEE FLN P1 and BACnet. It is eco-friendly and complies with directives such as RoHS, WEEE, etc.relating to environmental protection.
Additional Information
Analogue Output Type:
FM switch-configurable voltage 0...10 V DC 7620 Ohm 10 bits || FM switch-configurable current 0...20 mA 970 Ohm 10 bits
Discrete Input Type:
F programmable 24 V DC level 1 PLC 4700 Ohm || R programmable 24 V DC level 1 PLC 4700 Ohm || RES programmable 24 V DC level 1 PLC 4700 Ohm
Discrete Output Type:
configurable relay logic FLA, FLC) NO - 100000 cycles || configurable relay logic FLB, FLC) NC - 100000 cycles || configurable relay logic RY, RC) NO - 100000 cycles
Speed Drive Output Frequency:
0.5-200 Hz
Insulation Resistance:
>= 1 mOhm 500 V DC for 1 minute
Continuous Output Current:
37 A 380 V || 37 A 460 V
Noise Level:
54 dB 86/188/EEC
Range Of Product:
Altivar 212
Warranty:
18 months
Isolation:
electrical between power and control
Number Of Addresses:
1-247
Asynchronous Motor Control Profile:
voltage/frequency ratio, 5 points || voltage/frequency ratio - Energy Saving, quadratic U/f || voltage/frequency ratio, 2 points || voltage/frequency ratio, automatic IR compensation (U/f + automatic Uo) || flux vector control without sensor, standar
Frequency Resolution:
display unit 0.1 Hz || analog input 0.024/50 Hz
Communication Service:
time out setting from 0.1 to 100 s || read device identification (43) || monitoring inhibitable || read holding registers (03) 2 words maximum || write multiple registers (16) 2 words maximum || write single register (06)
Prospective Line Isc:
22 kA
Pollution Degree:
2 IEC 61800-5-1
Width:
245 mm
Output Voltage:
<= power supply voltage
Transmission Rate:
9600 bps or 19200 bps
Product Specific Application:
pumps and fans in HVAC
Protection Type:
overheating protection drive || thermal power stage drive || short-circuit between motor phases drive || input phase breaks drive || overcurrent between output phases and earth drive || overvoltages on the DC bus drive || break on the control circuit
Specific Application:
HVAC
Line Current:
27.8 A 480 V || 34.8 A 380 V
Minimum Switching Current:
3 mA 24 V DC configurable relay logic
Operating Position:
vertical +/- 10 degree
Net Weight:
11.65 kg
Transient Overtorque:
120-120 % of nominal motor torque +/- 10 % 60 s
Maximum Transient Current:
40.7 A 60 s
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Rohs Exemption Information:
Yes
Ip Degree Of Protection:
IP21
Response Time:
FM 2 ms +/- 0.5 ms analog || FLA, FLC 7 ms +/- 0.5 ms discrete || FLB, FLC 7 ms +/- 0.5 ms discrete || RY, RC 7 ms +/- 0.5 ms discrete
Standards:
IEC 61800-3 environments 1 category C2 || IEC 61800-3 category C2 || IEC 61800-3 || IEC 61800-3 environments 1 category C1 || IEC 61800-5-1 || IEC 61800-3 environments 2 category C1 || IEC 61800-3 environments 2 category C2 || EN 55011 class A group
Accuracy:
+/- 0.6 % VIA) for a temperature variation 60 °C || +/- 0.6 % VIB) for a temperature variation 60 °C || +/- 1 % FM) for a temperature variation 60 °C
Communication Port Protocol:
APOGEE FLN || BACnet || LonWorks || Modbus || METASYS N2
Sampling Duration:
2 ms +/- 0.5 ms F discrete || 2 ms +/- 0.5 ms R discrete || 2 ms +/- 0.5 ms RES discrete || 3.5 ms +/- 0.5 ms VIA analog || 22 ms +/- 0.5 ms VIB analog
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Transmission Frame:
RTU
Switching Frequency:
6...16 kHz adjustable || 8...16 kHz with derating factor
Electrical Connection:
VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES terminal 2.5-2.5 mm² / AWG 14 || L1/R, L2/S, L3/T terminal 25-25 mm² / AWG 3
Ip Degree Of Protection:
IP20 on upper part without blanking plate on cover IEC 61800-5-1 || IP20 on upper part without blanking plate on cover IEC 60529 || IP21 IEC 61800-5-1 || IP21 IEC 60529 || IP41 on upper part IEC 61800-5-1 || IP41 on upper part IEC 60529
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Operating Altitude:
3280.84...9842.52 ft (1000...3000 m) limited to 2000 m for the Corner Grounded distribution network with current derating 1 % per 100 m || <= 3280.84 ft (1000 m) without derating
Maximum Horse Power Rating:
25 hp
Supply Voltage Limits:
323-528 V
Ambient Air Temperature For Storage:
-25-70 °C
[Us] Rated Supply Voltage:
380...480 V - 15...10 %
Option Card:
communication card LonWorks
Height:
330 mm
Electromagnetic Compatibility:
electrostatic discharge immunity test level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge im
Analogue Input Number:
2
Local Signalling:
for DC bus energized 1 LED (red)
Phase:
3 phase
Emc Filter:
Class C2 EMC filter integrated
Power Dissipation In W:
603 W
Assembly Style:
with heat sink
Regulation Loop:
adjustable PI regulator
Ambient Air Temperature For Operation:
-10-40 °C without derating) || 40-50 °C with derating factor)
Speed Accuracy:
+/- 10 % of nominal slip 0.2 Tn to Tn
Discrete Output Number:
2
Nominal Switching Frequency:
8 kHz
Type Of Cable:
without mounting kit 1 IEC cable 45 °C, copper 90 °C / XLPE/EPR || without mounting kit 1 IEC cable 45 °C, copper 70 °C / PVC || with UL Type 1 kit 3 UL 508 cable 40 °C, copper 75 °C / PVC
Acceleration And Deceleration Ramps:
linear adjustable separately from 0.01 to 3200 s || automatic based on the load
Environmental Characteristic:
classes 3C1 IEC 60721-3-3 || classes 3S2 IEC 60721-3-3
Supply:
internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 A overload and short-circuit protection || internal supply 24 V DC 21-27 V), <200 A overload and short-circuit protection
Dielectric Strength:
3535 V DC between earth and power terminals || 5092 V DC between control and power terminals
Physical Interface:
2-wire RS 485
Product Or Component Type:
variable speed drive
China Rohs Regulation:
X
Device Short Name:
ATV212
Speed Range:
45301
Vibration Resistance:
1.5 mm 3-13 Hz)IEC 60068-2-6 || 1 gn 13-200 Hz)EN/IEC 60068-2-8
Analogue Input Type:
VIA switch-configurable voltage 0...10 V DC 24 V max 30000 Ohm 10 bits || VIB configurable voltage 0...10 V DC 24 V max 30000 Ohm 10 bits || VIB configurable PTC probe 0...6 probes 1500 Ohm || VIA switch-configurable current 0...20 mA 250 Ohm 10 bits
Data Format:
8 bits, 1 stop, odd even or no configurable parity
Depth:
190 mm
Shock Resistance:
15 gn 11 ms IEC 60068-2-27
Functionality:
mid
Connector Type:
1 open style || 1 RJ45
Power Range:
15-25 kW 380-440 V 3 phase || 15-25 kW 480-500 V 3 phase
Discrete And Process Manufacturing:
building - HVAC compressor for scroll || building - HVAC fan || building - HVAC pump
Air Flow:
214 m3/h
Motor Slip Compensation:
not available in voltage/frequency ratio motor control || automatic whatever the load || adjustable
Maximum Switching Current:
5 A 250 V AC resistive cos phi = 1 L/R = 0 ms FL, R) || 5 A 30 V DC resistive cos phi = 1 L/R = 0 ms FL, R) || 2 A 250 V AC inductive cos phi = 0.4 L/R = 7 ms FL, R) || 2 A 30 V DC inductive cos phi = 0.4 L/R = 7 ms FL, R)
Type Of Polarization:
no impedance
Apparent Power:
28.2 kVA 380 V
Analogue Output Number:
1
Product Destination:
asynchronous motors
Motor Power Kw:
18.5 kW
Relative Humidity:
5-95 % without condensation IEC 60068-2-3 || 5-95 % without dripping water IEC 60068-2-3
Torque Accuracy:
+/- 15 %
Braking To Standstill:
by DC injection
Mercury Free:
Yes
Supply Frequency:
50...60 Hz - 5...5 %
Linearity Error:
VIA +/- 0.15 % of maximum value input || VIB +/- 0.15 % of maximum value input || FM +/- 0.2 % output
Tightening Torque:
0.6 N.m VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES) || 4.5 N.m, 40 lb.in L1/R, L2/S, L3/T)
Discrete Input Logic:
positive logic (source) F, R, RES), <= 5 V, >= 11 V || negative logic (sink) F, R, RES), >= 16 V, <= 10 V
Marking:
CE
Product Certifications:
CSA || UL || C-tick || NOM 117
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Motor Starter Type:
variable speed drive
Network Frequency:
47.5...63 Hz
