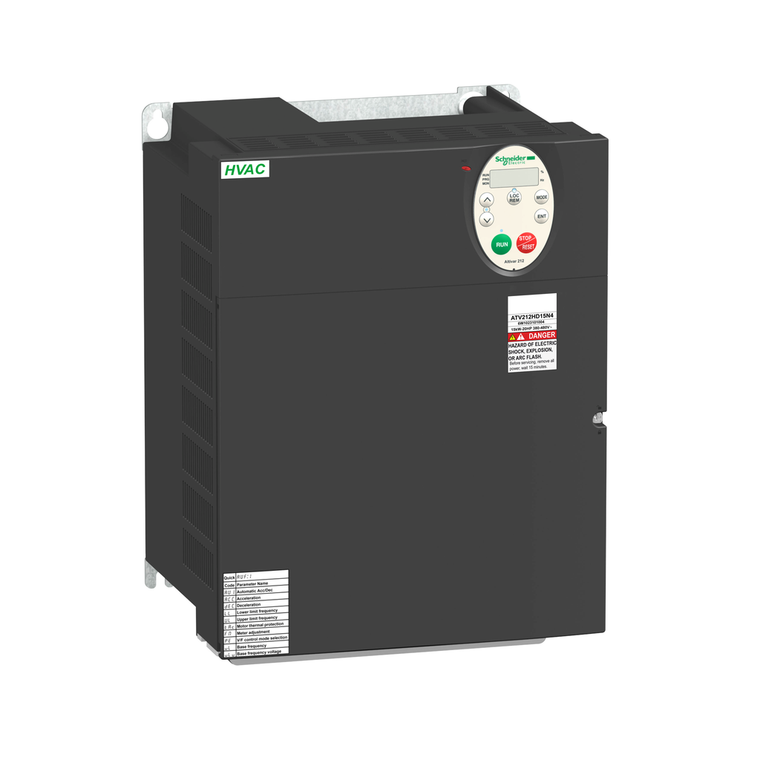

Schneider Electric ATV212HD22N4S Atv212 Slim Version 22Kw 30Hp 480V Tri C

(No reviews yet) Write a Review

Write a Review

Schneider Electric ATV212HD22N4S Atv212 Slim Version 22Kw 30Hp 480V Tri C

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ATV212HD22N4S

UPC:

3606480454943

MPN:

Condition:

New

Product Or Component Type:

variable speed drive

Supply Frequency:

50...60 Hz - 5...5 %

Relative Humidity:

5-95 % without condensation IEC 60068-2-3 || 5-95 % without dripping water IEC 60068-2-3

Discrete Output Number:

2

China Rohs Regulation:

X

Circularity Profile:

ENVEOLI111242EN

Network Frequency:

47.5...63 Hz

Noise Level:

59.9 dB 86/188/EEC

Asynchronous Motor Control Profile:

voltage/frequency ratio, 2 points || voltage/frequency ratio, 5 points || voltage/frequency ratio - Energy Saving, quadratic U/f || voltage/frequency ratio, automatic IR compensation (U/f + automatic Uo) || flux vector control without sensor, standar

Speed Accuracy:

+/- 10 % of nominal slip 0.2 Tn to Tn

Linearity Error:

VIA +/- 0.15 % of maximum value input || VIB +/- 0.15 % of maximum value input || FM +/- 0.2 % output

Torque Accuracy:

+/- 15 %

Motor Starter Type:

variable speed drive

Device Short Name:

ATV212

Type Of Cable:

without mounting kit 1 IEC cable 45 °C, copper 90 °C / XLPE/EPR || without mounting kit 1 IEC cable 45 °C, copper 70 °C / PVC || with UL Type 1 kit 3 UL 508 cable 40 °C, copper 75 °C / PVC

Range Of Product:

Altivar 212

Isolation:

electrical between power and control

Analogue Output Type:

FM switch-configurable voltage 0...10 V DC 7620 Ohm 10 bits || FM switch-configurable current 0...20 mA 970 Ohm 10 bits

Vibration Resistance:

1.5 mm 3-13 Hz)IEC 60068-2-6 || 1 gn 13-200 Hz)EN/IEC 60068-2-8

Motor Power Kw:

22 kW

Transmission Rate:

9600 bps or 19200 bps

Standards:

EN 55011 class A group 1 || IEC 61800-3 environments 2 category C2 || IEC 61800-3 environments 2 category C1 || EN 61800-3 category C3 || IEC 61800-3 environments 1 category C2 || IEC 61800-3 category C2 || IEC 61800-3 category C3 || IEC 61800-5-1 ||

Maximum Horse Power Rating:

30 hp

Analogue Output Number:

1

Product Certifications:

NOM 117 || CSA || UL || C-tick

Product Destination:

asynchronous motors

Assembly Style:

with heat sink

Power Dissipation In W:

723 W

Switching Frequency:

6...16 kHz adjustable || 8...16 kHz with derating factor

Accuracy:

+/- 0.6 % VIA) for a temperature variation 60 °C || +/- 0.6 % VIB) for a temperature variation 60 °C || +/- 1 % FM) for a temperature variation 60 °C

Data Format:

8 bits, 1 stop, odd even or no configurable parity

Communication Service:

read device identification (43) || monitoring inhibitable || time out setting from 0.1 to 100 s || read holding registers (03) 2 words maximum || write multiple registers (16) 2 words maximum || write single register (06)

Pollution Degree:

3 IEC 61800-5-1

Sustainable Offer Status:

Green Premium product

Communication Port Protocol:

APOGEE FLN || Modbus || LonWorks || METASYS N2 || BACnet

Mercury Free:

Yes

Option Card:

communication card LonWorks

Analogue Input Number:

2

Transmission Frame:

RTU

Nominal Switching Frequency:

8 kHz

Rohs Exemption Information:

Yes

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Warranty:

18 months

Sampling Duration:

2 ms +/- 0.5 ms F discrete || 2 ms +/- 0.5 ms R discrete || 2 ms +/- 0.5 ms RES discrete || 3.5 ms +/- 0.5 ms VIA analog || 22 ms +/- 0.5 ms VIB analog

Emc Filter:

Class C2 EMC filter integrated

Tightening Torque:

0.6 N.m VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES) || 4.5 N.m, 40 lb.in L1/R, L2/S, L3/T)

Environmental Disclosure:

ENVPEP111244EN

Speed Range:

45301

Acceleration And Deceleration Ramps:

linear adjustable separately from 0.01 to 3200 s || automatic based on the load

Operating Altitude:

3280.84...9842.52 ft (1000...3000 m) limited to 2000 m for the Corner Grounded distribution network with current derating 1 % per 100 m || <= 3280.84 ft (1000 m) without derating

Depth:

190 mm

Insulation Resistance:

>= 1 mOhm 500 V DC for 1 minute

[Us] Rated Supply Voltage:

380...480 V - 15...10 %

Protection Type:

overheating protection drive || thermal power stage drive || short-circuit between motor phases drive || input phase breaks drive || overcurrent between output phases and earth drive || overvoltages on the DC bus drive || break on the control circuit

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Supply Voltage Limits:

323-528 V

Discrete Input Type:

F programmable 24 V DC level 1 PLC 4700 Ohm || R programmable 24 V DC level 1 PLC 4700 Ohm || RES programmable 24 V DC level 1 PLC 4700 Ohm

Minimum Switching Current:

3 mA 24 V DC configurable relay logic

Type Of Polarization:

no impedance

Environmental Characteristic:

classes 3C1 IEC 60721-3-3 || classes 3S2 IEC 60721-3-3

Output Voltage:

<= power supply voltage

Regulation Loop:

adjustable PI regulator

Line Current:

41.1 A 380 V || 32.6 A 480 V

Braking To Standstill:

by DC injection

Physical Interface:

2-wire RS 485

Local Signalling:

for DC bus energized 1 LED (red)

Connector Type:

1 open style || 1 RJ45

Electrical Connection:

VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES terminal 2.5-2.5 mm² / AWG 14 || L1/R, L2/S, L3/T terminal 25-25 mm² / AWG 3

Air Flow:

214 m3/h

Motor Slip Compensation:

adjustable || automatic whatever the load || not available in voltage/frequency ratio motor control

Product Specific Application:

pumps and fans in HVAC

Speed Drive Output Frequency:

0.5-200 Hz

Analogue Input Type:

VIA switch-configurable voltage 0...10 V DC 24 V max 30000 Ohm 10 bits || VIB configurable voltage 0...10 V DC 24 V max 30000 Ohm 10 bits || VIB configurable PTC probe 0...6 probes 1500 Ohm || VIA switch-configurable current 0...20 mA 250 Ohm 10 bits

Net Weight:

11.65 kg

Discrete And Process Manufacturing:

building - HVAC compressor for scroll || building - HVAC fan || building - HVAC pump

Discrete Input Logic:

positive logic (source) F, R, RES), <= 5 V, >= 11 V || negative logic (sink) F, R, RES), >= 16 V, <= 10 V

Ip Degree Of Protection:

IP20 on upper part without blanking plate on cover IEC 61800-5-1 || IP20 on upper part without blanking plate on cover IEC 60529 || IP21 IEC 61800-5-1 || IP21 IEC 60529 || IP41 on upper part IEC 61800-5-1 || IP41 on upper part IEC 60529

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Transient Overtorque:

120-120 % of nominal motor torque +/- 10 % 60 s

Marking:

CE

Continuous Output Current:

43.5 A 380 V || 43.5 A 460 V

Ambient Air Temperature For Operation:

-10-40 °C without derating) || 40-50 °C with derating factor)

Apparent Power:

27.3 kVA 380 V

Power Range:

15-25 kW 380-440 V 3 phase || 15-25 kW 480-500 V 3 phase

Number Of Addresses:

1-247

Operating Position:

vertical +/- 10 degree

Frequency Resolution:

display unit 0.1 Hz || analog input 0.024/50 Hz

Electromagnetic Compatibility:

electrostatic discharge immunity test level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge immu

Height:

330 mm

Response Time:

FM 2 ms +/- 0.5 ms analog || FLA, FLC 7 ms +/- 0.5 ms discrete || FLB, FLC 7 ms +/- 0.5 ms discrete || RY, RC 7 ms +/- 0.5 ms discrete

Maximum Switching Current:

5 A 250 V AC resistive cos phi = 1 L/R = 0 ms FL, R) || 5 A 30 V DC resistive cos phi = 1 L/R = 0 ms FL, R) || 2 A 250 V AC inductive cos phi = 0.4 L/R = 7 ms FL, R) || 2 A 30 V DC inductive cos phi = 0.4 L/R = 7 ms FL, R)

Phase:

3 phase

Dielectric Strength:

3535 V DC between earth and power terminals || 5092 V DC between control and power terminals

Maximum Transient Current:

47.9 A 60 s

Discrete Output Type:

configurable relay logic FLA, FLC) NO - 100000 cycles || configurable relay logic FLB, FLC) NC - 100000 cycles || configurable relay logic RY, RC) NO - 100000 cycles

Supply:

internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 A overload and short-circuit protection || internal supply 24 V DC 21-27 V), <200 A overload and short-circuit protection

Width:

245 mm

Ambient Air Temperature For Storage:

-25-70 °C

Shock Resistance:

15 gn 11 ms IEC 60068-2-27

Prospective Line Isc:

22 kA
