Schneider Electric ATV212HU55N4 Atv212 5,5Kw 7,5Hp 480V Tri Cem Ip20

Schneider Electric ATV212HU55N4 Atv212 5,5Kw 7,5Hp 480V Tri Cem Ip20

Schneider Electric
SKU:
ATV212HU55N4
|
UPC:
3606480322495
$1,104.25
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

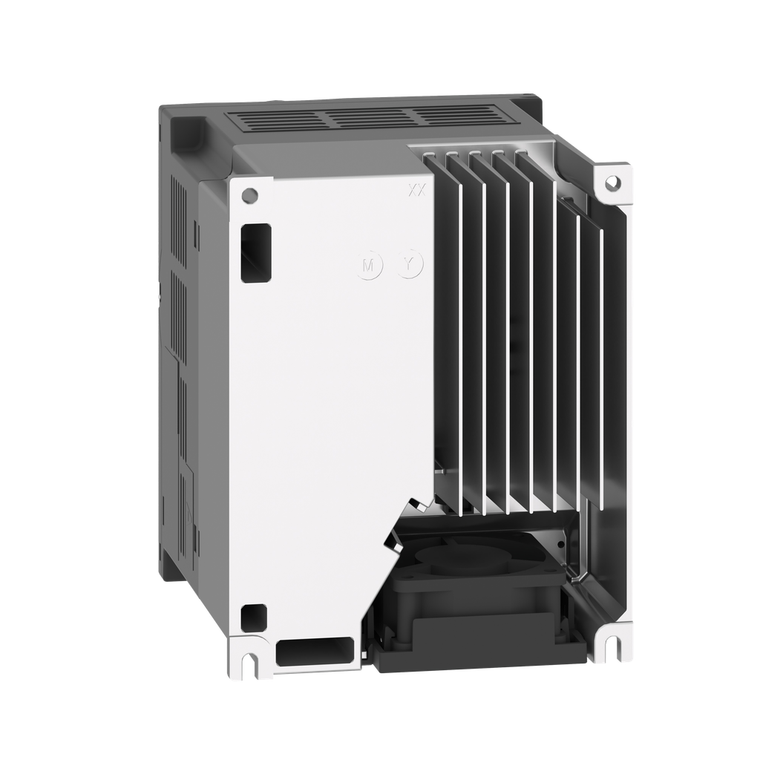

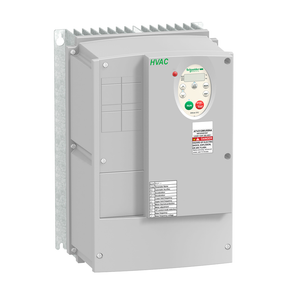

This Altivar 212 variable speed drive can feed 3-phase asynchronous motors. Its protection index is IP21 and it has a built-in EMC filter. It works at a rated power up to 5.5kW / 7.5hp and a rated voltage from 380V to 480V AC. Its design is based on eco-energy with a reduction in energy consumption of up to 70% compared to a conventional control system. Thanks to its cable temperature rise reduction technology, the Altivar 212 drive offers immediate, disturbance-free operation avoiding additional options such as a line choke or DC choke to deal with current harmonics. It weighs 3.35kg and its dimensions are, 142mm wide, 184mm high, 150mm deep. It is specifically designed for the most common fluid management applications in tertiary sector buildings (HVAC) like heating, ventilation, air conditioning and pumping. It conforms to international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 (immunity and conducted and radiated EMC emissions). It is also CE, UL, CSA, C-Tick and NOM certified. The Altivar 212 offers optional motor chokes which can increase the maximum cable lengths between the drive and the motor and limit disturbance at the motor terminals. It is designed to be mounted in vertical position (+/- 10 °) on a panel, thanks to 4 fixing holes. The Altivar 212 drive can easily be adapted to all building management systems thanks to its numerous functions and communication protocols integrated as standard, Modbus, METASYS N2, APOGEE FLN P1 and BACnet. It is eco-friendly and complies with directives such as RoHS, WEEE, etc.relating to environmental protection.
Additional Information
Data Format:
8 bits, 1 stop, odd even or no configurable parity
Air Flow:
74 m3/h
Response Time:
FM 2 ms +/- 0.5 ms analog || FLA, FLC 7 ms +/- 0.5 ms discrete || FLB, FLC 7 ms +/- 0.5 ms discrete || RY, RC 7 ms +/- 0.5 ms discrete
Dielectric Strength:
3535 V DC between earth and power terminals || 5092 V DC between control and power terminals
Power Range:
4-6 kW 380-440 V 3 phase || 4-6 kW 480-500 V 3 phase
Communication Port Protocol:
METASYS N2 || LonWorks || BACnet || Modbus || APOGEE FLN
Phase:
3 phase
Analogue Input Number:
2
Maximum Transient Current:
13.2 A 60 s
Standards:
IEC 61800-3 category C3 || IEC 61800-3 category C2 || EN 61800-3 category C3 || EN 55011 class A group 1 || IEC 61800-3 environments 1 category C2 || IEC 61800-3 environments 1 category C3 || IEC 61800-3 environments 2 category C1 || IEC 61800-3 envi
Discrete And Process Manufacturing:
building - HVAC compressor for scroll || building - HVAC fan || building - HVAC pump
Width:
142 mm
Number Of Addresses:
1-247
Analogue Output Number:
1
Maximum Switching Current:
5 A 250 V AC resistive cos phi = 1 L/R = 0 ms FL, R) || 5 A 30 V DC resistive cos phi = 1 L/R = 0 ms FL, R) || 2 A 250 V AC inductive cos phi = 0.4 L/R = 7 ms FL, R) || 2 A 30 V DC inductive cos phi = 0.4 L/R = 7 ms FL, R)
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Tightening Torque:
1.3 N.m, 11.5 lb.in L1/R, L2/S, L3/T) || 0.6 N.m VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES)
Motor Power Kw:
5.5 kW
[Us] Rated Supply Voltage:
380...480 V - 15...10 %
Speed Drive Output Frequency:
0.5-200 Hz
Analogue Input Type:
VIA switch-configurable voltage 0...10 V DC 24 V max 30000 Ohm 10 bits || VIB configurable voltage 0...10 V DC 24 V max 30000 Ohm 10 bits || VIB configurable PTC probe 0...6 probes 1500 Ohm || VIA switch-configurable current 0...20 mA 250 Ohm 10 bits
Operating Position:
vertical +/- 10 degree
Environmental Characteristic:
classes 3C1 IEC 60721-3-3 || classes 3S2 IEC 60721-3-3
China Rohs Regulation:
X
Prospective Line Isc:
22 kA
Torque Accuracy:
+/- 15 %
Electromagnetic Compatibility:
electrostatic discharge immunity test level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge im
Analogue Output Type:
FM switch-configurable voltage 0...10 V DC 7620 Ohm 10 bits || FM switch-configurable current 0...20 mA 970 Ohm 10 bits
Ambient Air Temperature For Storage:
-25-70 °C
Supply:
internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 A overload and short-circuit protection || internal supply 24 V DC 21-27 V), <200 A overload and short-circuit protection
Height:
184 mm
Nominal Switching Frequency:
12 kHz
Device Short Name:
ATV212
Linearity Error:
VIA +/- 0.15 % of maximum value input || VIB +/- 0.15 % of maximum value input || FM +/- 0.2 % output
Product Specific Application:
pumps and fans in HVAC
Motor Slip Compensation:
not available in voltage/frequency ratio motor control || automatic whatever the load || adjustable
Discrete Input Logic:
positive logic (source) F, R, RES), <= 5 V, >= 11 V || negative logic (sink) F, R, RES), >= 16 V, <= 10 V
Rohs Exemption Information:
Yes
Emc Filter:
Class C2 EMC filter integrated
Output Voltage:
<= power supply voltage
Shock Resistance:
15 gn 11 ms IEC 60068-2-27
Pollution Degree:
3 IEC 61800-5-1
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Warranty:
18 months
Connector Type:
1 RJ45 || 1 open style
Net Weight:
3.35 kg
Acceleration And Deceleration Ramps:
automatic based on the load || linear adjustable separately from 0.01 to 3200 s
Discrete Output Type:
configurable relay logic FLA, FLC) NO - 100000 cycles || configurable relay logic FLB, FLC) NC - 100000 cycles || configurable relay logic RY, RC) NO - 100000 cycles
Transmission Rate:
9600 bps or 19200 bps
Switching Frequency:
6...16 kHz adjustable || 12...16 kHz with derating factor
Noise Level:
51 dB 86/188/EEC
Maximum Horse Power Rating:
7.5 hp
Apparent Power:
9.1 kVA 380 V
Range Of Product:
Altivar 212
Braking To Standstill:
by DC injection
Option Card:
communication card LonWorks
Operating Altitude:
3280.84...9842.52 ft (1000...3000 m) limited to 2000 m for the Corner Grounded distribution network with current derating 1 % per 100 m || <= 3280.84 ft (1000 m) without derating
Product Destination:
asynchronous motors
Speed Accuracy:
+/- 10 % of nominal slip 0.2 Tn to Tn
Motor Starter Type:
variable speed drive
Frequency Resolution:
display unit 0.1 Hz || analog input 0.024/50 Hz
Ambient Air Temperature For Operation:
-10-40 °C without derating) || 40-50 °C with derating factor)
Relative Humidity:
5-95 % without condensation IEC 60068-2-3 || 5-95 % without dripping water IEC 60068-2-3
Specific Application:
HVAC
Continuous Output Current:
12 A 380 V || 12 A 460 V
Mercury Free:
Yes
Network Frequency:
47.5...63 Hz
Local Signalling:
for DC bus energized 1 LED (red)
Transient Overtorque:
120-120 % of nominal motor torque +/- 10 % 60 s
Ip Degree Of Protection:
IP21
Product Or Component Type:
variable speed drive
Accuracy:
+/- 0.6 % VIA) for a temperature variation 60 °C || +/- 0.6 % VIB) for a temperature variation 60 °C || +/- 1 % FM) for a temperature variation 60 °C
Vibration Resistance:
1.5 mm 3-13 Hz)IEC 60068-2-6 || 1 gn 13-200 Hz)EN/IEC 60068-2-8
Insulation Resistance:
>= 1 mOhm 500 V DC for 1 minute
Regulation Loop:
adjustable PI regulator
Protection Type:
overheating protection drive || thermal power stage drive || short-circuit between motor phases drive || input phase breaks drive || overcurrent between output phases and earth drive || overvoltages on the DC bus drive || break on the control circuit
Communication Service:
read device identification (43) || read holding registers (03) 2 words maximum || write multiple registers (16) 2 words maximum || write single register (06) || monitoring inhibitable || time out setting from 0.1 to 100 s
Discrete Output Number:
2
Sampling Duration:
2 ms +/- 0.5 ms F discrete || 2 ms +/- 0.5 ms R discrete || 2 ms +/- 0.5 ms RES discrete || 3.5 ms +/- 0.5 ms VIA analog || 22 ms +/- 0.5 ms VIB analog
Speed Range:
45301
Transmission Frame:
RTU
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Discrete Input Type:
F programmable 24 V DC level 1 PLC 4700 Ohm || R programmable 24 V DC level 1 PLC 4700 Ohm || RES programmable 24 V DC level 1 PLC 4700 Ohm
Depth:
150 mm
Supply Frequency:
50...60 Hz - 5...5 %
Power Dissipation In W:
215 W
Line Current:
10.9 A 380 V || 8.6 A 480 V
Ip Degree Of Protection:
IP20 on upper part without blanking plate on cover IEC 61800-5-1 || IP20 on upper part without blanking plate on cover IEC 60529 || IP21 IEC 61800-5-1 || IP21 IEC 60529 || IP41 on upper part IEC 61800-5-1 || IP41 on upper part IEC 60529
Isolation:
electrical between power and control
Type Of Cable:
without mounting kit 1 IEC cable 45 °C, copper 90 °C / XLPE/EPR || without mounting kit 1 IEC cable 45 °C, copper 70 °C / PVC || with UL Type 1 kit 3 UL 508 cable 40 °C, copper 75 °C / PVC
Product Certifications:
NOM 117 || CSA || C-tick || UL
Functionality:
mid
Electrical Connection:
VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES terminal 2.5-2.5 mm² / AWG 14 || L1/R, L2/S, L3/T terminal 6-6 mm² / AWG 10
Supply Voltage Limits:
323-528 V
Marking:
CE
Type Of Polarization:
no impedance
Physical Interface:
2-wire RS 485
Minimum Switching Current:
3 mA 24 V DC configurable relay logic
Assembly Style:
with heat sink
Asynchronous Motor Control Profile:
voltage/frequency ratio, 2 points || voltage/frequency ratio, 5 points || voltage/frequency ratio, automatic IR compensation (U/f + automatic Uo) || flux vector control without sensor, standard || voltage/frequency ratio - Energy Saving, quadratic U/
