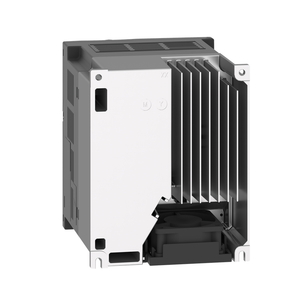

Schneider Electric ATV212WU40N4 Atv212 4Kw 5Hp 480V Tri Cem Ip55

Schneider Electric ATV212WU40N4 Atv212 4Kw 5Hp 480V Tri Cem Ip55

Schneider Electric
SKU:
ATV212WU40N4
|
UPC:
3.60648E+12
$1,151.48
(No reviews yet) Write a Review
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This Altivar 212 variable speed drive can feed 3-phase asynchronous motors. Its protection index is IP55 and it has a built-in EMC filter. It works at a rated power up to 4kW / 5hp and a rated voltage from 380V to 480V AC. Its design is based on eco-energy with a reduction in energy consumption of up to 70% compared to a conventional control system. Thanks to its cable temperature rise reduction technology, the Altivar 212 drive offers immediate, disturbance-free operation avoiding additional options such as a line choke or DC choke to deal with current harmonics. It weighs 9.65kg and its dimensions are, 230mm wide, 340mm high, 208mm deep. It is specifically designed for the most common fluid management applications in tertiary sector buildings (HVAC) like heating, ventilation, air conditioning and pumping. It conforms to international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 (immunity and conducted and radiated EMC emissions). It is also CE, UL, CSA, C-Tick and NOM certified. The Altivar 212 offers optional motor chokes which can increase the maximum cable lengths between the drive and the motor and limit disturbance at the motor terminals. It is designed to be mounted in vertical position (+/- 10 °) on a panel, thanks to 4 fixing holes. The Altivar 212 drive can easily be adapted to all building management systems thanks to its numerous functions and communication protocols integrated as standard, Modbus, METASYS N2, APOGEE FLN P1 and BACnet.
Additional Information
Torque Accuracy:
+/- 15 %
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Shock Resistance:
15 gn 11 ms IEC 60068-2-27
Braking To Standstill:
by DC injection
Transmission Frame:
RTU
Switching Frequency:
6...16 kHz adjustable || 12...16 kHz with derating factor
Warranty:
18 months
Mercury Free:
Yes
Circularity Profile:
ENVEOLI111234EN
Electrical Connection:
VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES terminal 2.5-2.5 mm² / AWG 14 || L1/R, L2/S, L3/T terminal 6-6 mm² / AWG 10
Assembly Style:
with heat sink
Sampling Duration:
2 ms +/- 0.5 ms F discrete || 2 ms +/- 0.5 ms R discrete || 2 ms +/- 0.5 ms RES discrete || 3.5 ms +/- 0.5 ms VIA analog || 22 ms +/- 0.5 ms VIB analog
Speed Accuracy:
+/- 10 % of nominal slip 0.2 Tn to Tn
Transient Overtorque:
120-120 % of nominal motor torque +/- 10 % 60 s
Connector Type:
1 RJ45 || 1 open style
Supply Voltage Limits:
323-528 V
Operating Altitude:
3280.84...9842.52 ft (1000...3000 m) limited to 2000 m for the Corner Grounded distribution network with current derating 1 % per 100 m || <= 3280.84 ft (1000 m) without derating
Accuracy:
+/- 0.6 % VIA) for a temperature variation 60 °C || +/- 0.6 % VIB) for a temperature variation 60 °C || +/- 1 % FM) for a temperature variation 60 °C
Prospective Line Isc:
5 kA
Dielectric Strength:
3535 V DC between earth and power terminals || 5092 V DC between control and power terminals
Device Short Name:
ATV212
Discrete Input Type:
F programmable 24 V DC level 1 PLC 4700 Ohm || R programmable 24 V DC level 1 PLC 4700 Ohm || RES programmable 24 V DC level 1 PLC 4700 Ohm
Maximum Horse Power Rating:
5 hp
Network Frequency:
47.5...63 Hz
Noise Level:
55 dB 86/188/EEC
Linearity Error:
VIA +/- 0.15 % of maximum value input || VIB +/- 0.15 % of maximum value input || FM +/- 0.2 % output
Frequency Resolution:
display unit 0.1 Hz || analog input 0.024/50 Hz
Response Time:
FM 2 ms +/- 0.5 ms analog || FLA, FLC 7 ms +/- 0.5 ms discrete || FLB, FLC 7 ms +/- 0.5 ms discrete || RY, RC 7 ms +/- 0.5 ms discrete
Vibration Resistance:
1.5 mm 3-13 Hz)IEC 60068-2-6 || 1 gn 13-200 Hz)EN/IEC 60068-2-8
Supply:
internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 A overload and short-circuit protection || internal supply 24 V DC 21-27 V), <200 A overload and short-circuit protection
Height:
340 mm
Product Specific Application:
pumps and fans in HVAC
Motor Power Kw:
4 kW
Maximum Switching Current:
5 A 250 V AC resistive cos phi = 1 L/R = 0 ms FL, R) || 5 A 30 V DC resistive cos phi = 1 L/R = 0 ms FL, R) || 2 A 250 V AC inductive cos phi = 0.4 L/R = 7 ms FL, R) || 2 A 30 V DC inductive cos phi = 0.4 L/R = 7 ms FL, R)
Speed Drive Output Frequency:
0.5-200 Hz
Maximum Transient Current:
10 A 60 s
Depth:
208 mm
Emc Filter:
Class C2 EMC filter integrated
Relative Humidity:
5-95 % without condensation IEC 60068-2-3 || 5-95 % without dripping water IEC 60068-2-3
Option Card:
communication card LonWorks
Discrete Output Type:
configurable relay logic FLA, FLC) NO - 100000 cycles || configurable relay logic FLB, FLC) NC - 100000 cycles || configurable relay logic RY, RC) NO - 100000 cycles
Analogue Output Type:
FM switch-configurable voltage 0...10 V DC 7620 Ohm 10 bits || FM switch-configurable current 0...20 mA 970 Ohm 10 bits
Net Weight:
9.65 kg
Sustainable Offer Status:
Green Premium product
Ambient Air Temperature For Storage:
-25-70 °C
Isolation:
electrical between power and control
Phase:
3 phase
Pollution Degree:
3 IEC 61800-5-1
Environmental Characteristic:
classes 3C1 IEC 60721-3-3 || classes 3S2 IEC 60721-3-3
Output Voltage:
<= power supply voltage
Rohs Exemption Information:
Yes
Width:
230 mm
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Minimum Switching Current:
3 mA 24 V DC configurable relay logic
Analogue Input Number:
2
Supply Frequency:
50...60 Hz - 5...5 %
Local Signalling:
for DC bus energized 1 LED (red)
Physical Interface:
2-wire RS 485
Ip Degree Of Protection:
IP55
Electromagnetic Compatibility:
electrostatic discharge immunity test level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge im
Communication Port Protocol:
Modbus || APOGEE FLN || METASYS N2 || BACnet || LonWorks
China Rohs Regulation:
X
Data Format:
8 bits, 1 stop, odd even or no configurable parity
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Product Destination:
asynchronous motors
Range Of Product:
Altivar 212
Discrete Output Number:
2
Tightening Torque:
1.3 N.m, 11.5 lb.in L1/R, L2/S, L3/T) || 0.6 N.m VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES)
Acceleration And Deceleration Ramps:
automatic based on the load || linear adjustable separately from 0.01 to 3200 s
Environmental Disclosure:
ENVPEP111228EN
Number Of Addresses:
1-247
Communication Service:
monitoring inhibitable || read holding registers (03) 2 words maximum || time out setting from 0.1 to 100 s || read device identification (43) || write multiple registers (16) 2 words maximum || write single register (06)
Nominal Switching Frequency:
12 kHz
Motor Slip Compensation:
not available in voltage/frequency ratio motor control || adjustable || automatic whatever the load
Product Certifications:
NOM 117 || UL || C-tick || CSA
Functionality:
mid
Speed Range:
45301
Regulation Loop:
adjustable PI regulator
Asynchronous Motor Control Profile:
flux vector control without sensor, standard || voltage/frequency ratio, automatic IR compensation (U/f + automatic Uo) || voltage/frequency ratio, 5 points || voltage/frequency ratio, 2 points || voltage/frequency ratio - Energy Saving, quadratic U/
Analogue Output Number:
1
Marking:
CE
Ambient Air Temperature For Operation:
-10-40 °C without derating) || 40-50 °C with derating factor)
[Us] Rated Supply Voltage:
380...480 V - 15...10 %
Protection Type:
overheating protection drive || thermal power stage drive || short-circuit between motor phases drive || input phase breaks drive || overcurrent between output phases and earth drive || overvoltages on the DC bus drive || break on the control circuit
Specific Application:
HVAC
Analogue Input Type:
VIA switch-configurable voltage 0...10 V DC 24 V max 30000 Ohm 10 bits || VIB configurable voltage 0...10 V DC 24 V max 30000 Ohm 10 bits || VIB configurable PTC probe 0...6 probes 1500 Ohm || VIA switch-configurable current 0...20 mA 250 Ohm 10 bits
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Product Or Component Type:
variable speed drive
Apparent Power:
6.9 kVA 380 V
Discrete Input Logic:
positive logic (source) F, R, RES), <= 5 V, >= 11 V || negative logic (sink) F, R, RES), >= 16 V, <= 10 V
Ip Degree Of Protection:
IP55 IEC 61800-5-1 || IP55 IEC 60529
Type Of Cable:
without mounting kit 1 IEC cable 45 °C, copper 90 °C / XLPE/EPR || without mounting kit 1 IEC cable 45 °C, copper 70 °C / PVC || with UL Type 1 kit 3 UL 508 cable 40 °C, copper 75 °C / PVC
Continuous Output Current:
9.1 A 380 V || 9.1 A 460 V
Insulation Resistance:
>= 1 mOhm 500 V DC for 1 minute
Type Of Polarization:
no impedance
Operating Position:
vertical +/- 10 degree
Transmission Rate:
9600 bps or 19200 bps
Standards:
IEC 61800-3 environments 2 category C2 || IEC 61800-3 || IEC 61800-3 environments 2 category C1 || IEC 61800-3 category C2 || IEC 61800-3 environments 2 category C3 || IEC 61800-3 environments 1 category C3 || EN 61800-3 category C3 || IEC 61800-3 ca
Line Current:
6.4 A 480 V || 8.1 A 380 V
