Schneider Electric ATV212WU55N4 Atv212 5,5Kw 7,5Hp 480V Tri Cem Ip55

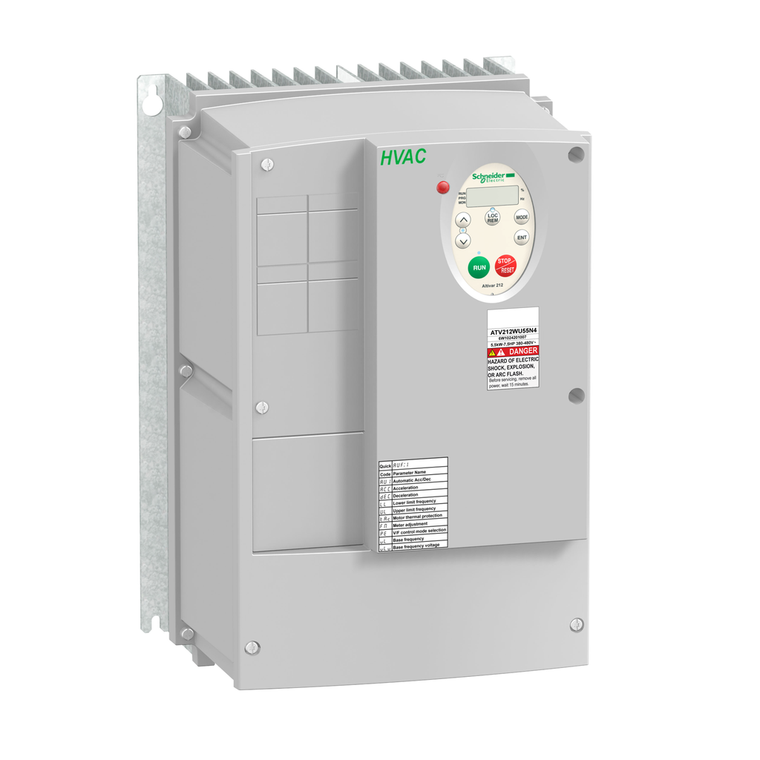

This Altivar 212 variable speed drive can feed 3-phase asynchronous motors. Its protection index is IP55 and it has a built-in EMC filter. It works at a rated power up to 5.5kW / 7.5hp and a rated voltage from 380V to 480V AC. Its design is based on eco-energy with a reduction in energy consumption of up to 70% compared to a conventional control system. Thanks to its cable temperature rise reduction technology, the Altivar 212 drive offers immediate, disturbance-free operation avoiding additional options such as a line choke or DC choke to deal with current harmonics. It weighs 9.65kg and its dimensions are, 230mm wide, 340mm high, 208mm deep. It is specifically designed for the most common fluid management applications in tertiary sector buildings (HVAC) like heating, ventilation, air conditioning and pumping. It conforms to international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 (immunity and conducted and radiated EMC emissions). It is also CE, UL, CSA, C-Tick and NOM certified. The Altivar 212 offers optional motor chokes which can increase the maximum cable lengths between the drive and the motor and limit disturbance at the motor terminals. It is designed to be mounted in vertical position (+/- 10 °) on a panel, thanks to 4 fixing holes. The Altivar 212 drive can easily be adapted to all building management systems thanks to its numerous functions and communication protocols integrated as standard, Modbus, METASYS N2, APOGEE FLN P1 and BACnet.
- Analogue Output Number:
- 1
- Mercury Free:
- Yes
- Output Voltage:
- <= power supply voltage
- Nominal Switching Frequency:
- 12 kHz
- Speed Drive Output Frequency:
- 0.5-200 Hz
- Maximum Horse Power Rating:
- 7.5 hp
- Type Of Polarization:
- no impedance
- Net Weight:
- 9.65 kg
- Environmental Disclosure:
- ENVPEP111228EN
- Functionality:
- mid
- Analogue Input Number:
- 2
- Speed Accuracy:
- +/- 10 % of nominal slip 0.2 Tn to Tn
- Braking To Standstill:
- by DC injection
- Discrete Input Type:
- F programmable 24 V DC level 1 PLC 4700 Ohm || R programmable 24 V DC level 1 PLC 4700 Ohm || RES programmable 24 V DC level 1 PLC 4700 Ohm
- Product Destination:
- asynchronous motors
- Assembly Style:
- with heat sink
- Sustainable Offer Status:
- Green Premium product
- Motor Slip Compensation:
- not available in voltage/frequency ratio motor control || adjustable || automatic whatever the load
- Electromagnetic Compatibility:
- electrostatic discharge immunity test level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge im
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Type Of Cable:
- without mounting kit 1 IEC cable 45 °C, copper 90 °C / XLPE/EPR || without mounting kit 1 IEC cable 45 °C, copper 70 °C / PVC || with UL Type 1 kit 3 UL 508 cable 40 °C, copper 75 °C / PVC
- Phase:
- 3 phase
- Environmental Characteristic:
- classes 3C1 IEC 60721-3-3 || classes 3S2 IEC 60721-3-3
- Response Time:
- FM 2 ms +/- 0.5 ms analog || FLA, FLC 7 ms +/- 0.5 ms discrete || FLB, FLC 7 ms +/- 0.5 ms discrete || RY, RC 7 ms +/- 0.5 ms discrete
- Network Frequency:
- 47.5...63 Hz
- Data Format:
- 8 bits, 1 stop, odd even or no configurable parity
- Width:
- 230 mm
- Operating Position:
- vertical +/- 10 degree
- Asynchronous Motor Control Profile:
- voltage/frequency ratio, 2 points || flux vector control without sensor, standard || voltage/frequency ratio - Energy Saving, quadratic U/f || voltage/frequency ratio, automatic IR compensation (U/f + automatic Uo) || voltage/frequency ratio, 5 point
- Motor Power Kw:
- 5.5 kW
- Marking:
- CE
- Supply:
- internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 A overload and short-circuit protection || internal supply 24 V DC 21-27 V), <200 A overload and short-circuit protection
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Physical Interface:
- 2-wire RS 485
- Rohs Exemption Information:
- Yes
- Insulation Resistance:
- >= 1 mOhm 500 V DC for 1 minute
- Product Or Component Type:
- variable speed drive
- Product Certifications:
- UL || NOM 117 || CSA || C-tick
- Transmission Rate:
- 9600 bps or 19200 bps
- Noise Level:
- 55 dB 86/188/EEC
- Height:
- 340 mm
- Communication Port Protocol:
- METASYS N2 || LonWorks || Modbus || BACnet || APOGEE FLN
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Maximum Switching Current:
- 5 A 250 V AC resistive cos phi = 1 L/R = 0 ms FL, R) || 5 A 30 V DC resistive cos phi = 1 L/R = 0 ms FL, R) || 2 A 250 V AC inductive cos phi = 0.4 L/R = 7 ms FL, R) || 2 A 30 V DC inductive cos phi = 0.4 L/R = 7 ms FL, R)
- Number Of Addresses:
- 1-247
- Pollution Degree:
- 3 IEC 61800-5-1
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Emc Filter:
- Class C2 EMC filter integrated
- Ip Degree Of Protection:
- IP55
- Maximum Transient Current:
- 13.2 A 60 s
- Frequency Resolution:
- display unit 0.1 Hz || analog input 0.024/50 Hz
- Ip Degree Of Protection:
- IP55 IEC 61800-5-1 || IP55 IEC 60529
- Torque Accuracy:
- +/- 15 %
- Line Current:
- 10.9 A 380 V || 8.6 A 480 V
- Supply Voltage Limits:
- 323-528 V
- Transmission Frame:
- RTU
- Discrete Output Type:
- configurable relay logic FLA, FLC) NO - 100000 cycles || configurable relay logic FLB, FLC) NC - 100000 cycles || configurable relay logic RY, RC) NO - 100000 cycles
- Tightening Torque:
- 1.3 N.m, 11.5 lb.in L1/R, L2/S, L3/T) || 0.6 N.m VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES)
- Option Card:
- communication card LonWorks
- Regulation Loop:
- adjustable PI regulator
- Device Short Name:
- ATV212
- Local Signalling:
- for DC bus energized 1 LED (red)
- Acceleration And Deceleration Ramps:
- automatic based on the load || linear adjustable separately from 0.01 to 3200 s
- Ambient Air Temperature For Storage:
- -25-70 °C
- Depth:
- 208 mm
- Switching Frequency:
- 6...16 kHz adjustable || 12...16 kHz with derating factor
- Linearity Error:
- VIA +/- 0.15 % of maximum value input || VIB +/- 0.15 % of maximum value input || FM +/- 0.2 % output
- Apparent Power:
- 9.1 kVA 380 V
- Transient Overtorque:
- 120-120 % of nominal motor torque +/- 10 % 60 s
- Communication Service:
- time out setting from 0.1 to 100 s || write multiple registers (16) 2 words maximum || read holding registers (03) 2 words maximum || write single register (06) || monitoring inhibitable || read device identification (43)
- Specific Application:
- HVAC
- Continuous Output Current:
- 12 A 380 V || 12 A 460 V
- Supply Frequency:
- 50...60 Hz - 5...5 %
- Discrete Input Logic:
- positive logic (source) F, R, RES), <= 5 V, >= 11 V || negative logic (sink) F, R, RES), >= 16 V, <= 10 V
- Connector Type:
- 1 open style || 1 RJ45
- Operating Altitude:
- 3280.84...9842.52 ft (1000...3000 m) limited to 2000 m for the Corner Grounded distribution network with current derating 1 % per 100 m || <= 3280.84 ft (1000 m) without derating
- Sampling Duration:
- 2 ms +/- 0.5 ms F discrete || 2 ms +/- 0.5 ms R discrete || 2 ms +/- 0.5 ms RES discrete || 3.5 ms +/- 0.5 ms VIA analog || 22 ms +/- 0.5 ms VIB analog
- China Rohs Regulation:
- X
- Circularity Profile:
- ENVEOLI111234EN
- Analogue Output Type:
- FM switch-configurable voltage 0...10 V DC 7620 Ohm 10 bits || FM switch-configurable current 0...20 mA 970 Ohm 10 bits
- Discrete Output Number:
- 2
- Product Specific Application:
- pumps and fans in HVAC
- Vibration Resistance:
- 1.5 mm 3-13 Hz)IEC 60068-2-6 || 1 gn 13-200 Hz)EN/IEC 60068-2-8
- Electrical Connection:
- VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES terminal 2.5-2.5 mm² / AWG 14 || L1/R, L2/S, L3/T terminal 6-6 mm² / AWG 10
- Speed Range:
- 45301
- Standards:
- IEC 61800-3 environments 1 category C3 || IEC 61800-3 environments 1 category C1 || EN 55011 class A group 1 || IEC 61800-5-1 || IEC 61800-3 || IEC 61800-3 environments 1 category C2 || IEC 61800-3 category C2 || IEC 61800-3 environments 2 category C
- Dielectric Strength:
- 3535 V DC between earth and power terminals || 5092 V DC between control and power terminals
- Warranty:
- 18 months
- Prospective Line Isc:
- 22 kA
- Ambient Air Temperature For Operation:
- -10-40 °C without derating) || 40-50 °C with derating factor)
- Accuracy:
- +/- 0.6 % VIA) for a temperature variation 60 °C || +/- 0.6 % VIB) for a temperature variation 60 °C || +/- 1 % FM) for a temperature variation 60 °C
- Protection Type:
- overheating protection drive || thermal power stage drive || short-circuit between motor phases drive || input phase breaks drive || overcurrent between output phases and earth drive || overvoltages on the DC bus drive || break on the control circuit
- Range Of Product:
- Altivar 212
- Analogue Input Type:
- VIA switch-configurable voltage 0...10 V DC 24 V max 30000 Ohm 10 bits || VIB configurable voltage 0...10 V DC 24 V max 30000 Ohm 10 bits || VIB configurable PTC probe 0...6 probes 1500 Ohm || VIA switch-configurable current 0...20 mA 250 Ohm 10 bits
- Minimum Switching Current:
- 3 mA 24 V DC configurable relay logic
- Shock Resistance:
- 15 gn 11 ms IEC 60068-2-27
- Relative Humidity:
- 5-95 % without condensation IEC 60068-2-3 || 5-95 % without dripping water IEC 60068-2-3
- [Us] Rated Supply Voltage:
- 380...480 V - 15...10 %
- Isolation:
- electrical between power and control
- Brochure:
- View
