Schneider Electric ATV320U04M3C Atv320 0,37Kw 200V 3Ph Compact Control V

(No reviews yet) Write a Review

Write a Review

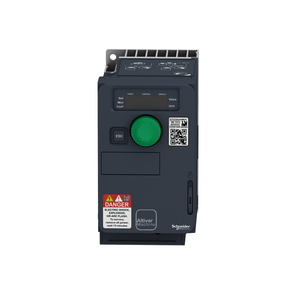

Schneider Electric ATV320U04M3C Atv320 0,37Kw 200V 3Ph Compact Control V

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ATV320U04M3C

UPC:

3606480966590

MPN:

Condition:

New

With Safety Function Safe Direction (Sdi):

FALSE

Relative Symmetric Network Frequency Tolerance:

0.05

With Safety Function Safe Brake Management (Sbc/Sbt):

FALSE

Maximum Deflection Under Vibratory Load (During Operation):

1.5 mm at 2...13 Hz

Maximum Acceleration Under Shock Impact (During Operation):

150 m/s² at 11 ms

Acceleration And Deceleration Ramps:

linear || U || S || CUS || ramp switching || acceleration/deceleration ramp adaptation || acceleration/deceleration automatic stop with DC injection

Maximum Output Voltage:

240 V

Prospective Line Isc:

5 kA

Net Weight:

0.9 kg

Ambient Air Temperature For Storage:

-25-70 °C

4 Quadrant Operation Possible:

TRUE

With Safety Function Safe Programmable Logic:

FALSE

Emc Filter:

without EMC filter

Network Frequency:

50-60 Hz

Nominal Output Current:

3.3 A

Environmental Class (During Operation):

class 3C3 according to IEC 60721-3-3 || class 3S2 according to IEC 60721-3-3

Method Of Access:

slave CANopen

Maximum Output Frequency:

0.599 kHz

Discrete Input Number:

7

Discrete Output Type:

open collector DQ+ 0-1 kHz 30 V DC 100 mA || open collector DQ- 0-1 kHz 30 V DC 100 mA

With Safety Function Safely Limited Speed (Sls):

TRUE

Analogue Output Type:

software-configurable current AQ1 0...20 mA 800 Ohm 10 bits || software-configurable voltage AQ1 0...10 V DC 470 Ohm 10 bits

Mounting Mode:

wall mount

Power Dissipation In W:

self-cooled 27.0 W 200 V 4 kHz

Switching Frequency:

2...16 kHz adjustable || 4...16 kHz with derating factor

Format Of The Drive:

compact

With Safety Function Safe Torque Off (Sto):

TRUE

Rohs Exemption Information:

Yes

Maximum Switching Current:

relay output R1A, R1B, R1C resistive, cos phi = 1 3 A 250 V AC || relay output R1A, R1B, R1C resistive, cos phi = 1 3 A 30 V DC || relay output R1A, R1B, R1C, R2A, R2C inductive, cos phi = 0.4 7 ms 2 A 250 V AC || relay output R1A, R1B, R1C, R2A, R2C

Asynchronous Motor Control Profile:

voltage/frequency ratio, 5 points || flux vector control without sensor, standard || voltage/frequency ratio - Energy Saving, quadratic U/f || flux vector control without sensor - Energy Saving || voltage/frequency ratio, 2 points

With Safety Function Safe Stop 1 (Ss1):

TRUE

Operating Position:

vertical +/- 10 degree

Speed Accuracy:

+/- 10 % of nominal slip 0.2 Tn to Tn

Mercury Free:

Yes

Permitted Relative Humidity (During Operation):

class 3K5 according to EN 60721-3

Apparent Power:

1.2 kVA 240 V heavy duty)

Transient Overtorque:

170-200 % of nominal motor torque

Sustainable Offer Status:

Green Premium product

Brake Chopper Integrated:

TRUE

Motor Power Kw:

0.37 kW heavy duty

Product Or Component Type:

variable speed drive

Product Certifications:

CE || ATEX || NOM || GOST || EAC || RCM || KC

Pollution Degree:

2

Base Load Current At High Overload:

8.0 A

Synchronous Motor Control Profile:

vector control without sensor

Analogue Input Number:

3

China Rohs Regulation:

X

With Sft Fct Safe Stop 2 (Ss2):

FALSE

With Safety Function Safe Operating Stop (Sos):

FALSE

Braking To Standstill:

by DC injection

Range Of Product:

Altivar Machine ATV320

Regulation Loop:

adjustable PID regulator

Standards:

IEC 61800-5-1

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Protection Type:

input phase breaks drive || overcurrent between output phases and earth drive || overheating protection drive || short-circuit between motor phases drive || thermal protection drive

Option Card:

communication module, CANopen || communication module, EtherCAT || communication module, Profibus DP V1 || communication module, PROFINET || communication module, Ethernet Powerlink || communication module, EtherNet/IP || communication module, Device

Communication Port Protocol:

Modbus serial || CANopen

Variant:

standard version

Minimum Switching Current:

relay output R1A, R1B, R1C, R2A, R2C 5 mA 24 V DC

Nominal Switching Frequency:

4 kHz

Analogue Input Type:

AI1 voltage 0...10 V DC 30 kOhm 10 bits || AI2 bipolar differential voltage +/- 10 V DC 30 kOhm 10 bits || AI3 current 0...20 mA (or 4-20 mA, x-20 mA, 20-x mA or other patterns by configuration) 250 Ohm 10 bits

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Discrete Output Number:

3

Overvoltage Category:

III

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Depth:

128.0 mm

Width:

72.0 mm

Upgradeability:

Upgraded components available

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Discrete Input Logic:

positive logic (source) || negative logic (sink)

Maximum Acceleration Under Vibrational Stress (During Operation):

10 m/s² at 13...200 Hz

With Safety Function Safe Speed Monitor (Ssm):

FALSE

Motor Slip Compensation:

automatic whatever the load || adjustable 0...300 % || not available in voltage/frequency ratio (2 or 5 points)

Relay Output Type:

configurable relay logic R1A 1 NO 100000 cycles || configurable relay logic R1B 1 NC 100000 cycles || configurable relay logic R1C || configurable relay logic R2A 1 NO 100000 cycles || configurable relay logic R2C

Product Specific Application:

complex machines

Ambient Air Temperature For Operation:

-10-50 °C without derating || 50-60 °C with derating factor

Height:

143.0 mm

With Safety Function Safe Position (Sp):

FALSE

Marking:

CE || ATEX || UL || CSA || EAC || RCM

Electromagnetic Compatibility:

electrostatic discharge immunity test level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge im

Ambient Air Transport Temperature:

-25-70 °C

Analogue Output Number:

1

With Safety Function Safely Limited Position (Slp):

FALSE

Circularity Profile:

ENVEOLI1601008EN

[Us] Rated Supply Voltage:

200...240 V - 15...10 %

Discrete Input Type:

STO safe torque off, 24 V DC1.5 kOhm || DI1...DI6 logic inputs, 24 V DC 30 V) || DI5 programmable as pulse input 0-30 kHz, 24 V DC 30 V)

Line Current:

3.6 A 200 V heavy duty) || 3.0 A 240 V heavy duty)

Ip Degree Of Protection:

IP20
