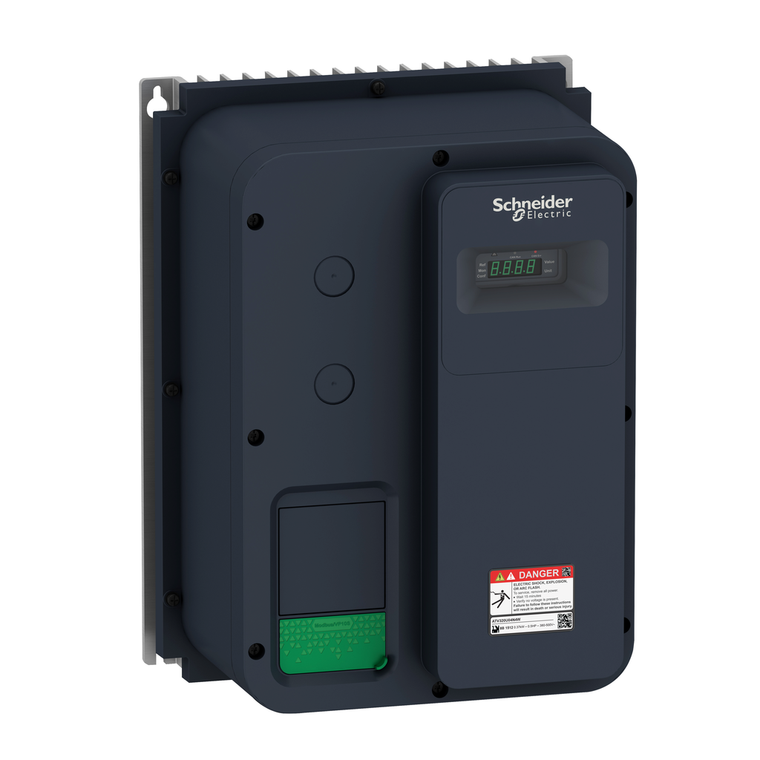

Schneider Electric ATV320U04N4W Atv320 0,37Kw 400V 3Ph Without Vario

(No reviews yet) Write a Review

Write a Review

Schneider Electric ATV320U04N4W Atv320 0,37Kw 400V 3Ph Without Vario

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ATV320U04N4W

UPC:

3.60649E+12

MPN:

Condition:

New

Marking:

CE || ATEX || UL || CSA || EAC || RCM

Line Current:

2.1 A 380 V heavy duty) || 1.6 A 500 V heavy duty)

Asynchronous Motor Control Profile:

voltage/frequency ratio, 5 points || flux vector control without sensor, standard || voltage/frequency ratio - Energy Saving, quadratic U/f || flux vector control without sensor - Energy Saving || voltage/frequency ratio, 2 points

Discrete Input Number:

7

Switching Frequency:

2...16 kHz adjustable || 4...16 kHz with derating factor

Product Specific Application:

complex machines

[Us] Rated Supply Voltage:

380...500 V - 15...10 %

Protection Type:

input phase breaks drive || overcurrent between output phases and earth drive || overheating protection drive || short-circuit between motor phases drive || thermal protection drive

Analogue Input Type:

AI1 voltage 0...10 V DC 30 kOhm 10 bits || AI2 bipolar differential voltage +/- 10 V DC 30 kOhm 10 bits || AI3 current 0...20 mA (or 4-20 mA, x-20 mA, 20-x mA or other patterns by configuration) 250 Ohm 10 bits

4 Quadrant Operation Possible:

TRUE

Product Certifications:

CE || ATEX || NOM || GOST || EAC || RCM || KC

Width:

250 mm

Discrete Input Logic:

positive logic (source) || negative logic (sink)

Brake Chopper Integrated:

TRUE

Maximum Acceleration Under Vibrational Stress (During Operation):

10 m/s² at 13...200 Hz

Nominal Switching Frequency:

4 kHz

Ambient Air Temperature For Storage:

-25-70 °C

Height:

340 mm

Power Dissipation In W:

self-cooled 23.0 W 380 V 4 kHz

Acceleration And Deceleration Ramps:

linear || U || S || CUS || ramp switching || acceleration/deceleration ramp adaptation || acceleration/deceleration automatic stop with DC injection

Ambient Air Temperature For Operation:

-10-40 °C without derating || 40-60 °C with derating factor

With Safety Function Safely Limited Speed (Sls):

TRUE

Prospective Line Isc:

5 kA

Ip Degree Of Protection:

IP66

Motor Slip Compensation:

automatic whatever the load || adjustable 0...300 % || not available in voltage/frequency ratio (2 or 5 points)

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Discrete Output Type:

open collector DQ+ 0-1 kHz 30 V DC 100 mA || open collector DQ- 0-1 kHz 30 V DC 100 mA

Depth:

200 mm

With Safety Function Safe Programmable Logic:

FALSE

Analogue Output Number:

1

Option Card:

communication module, CANopen || communication module, EtherCAT || communication module, Profibus DP V1 || communication module, PROFINET || communication module, Ethernet Powerlink || communication module, EtherNet/IP || communication module, Device

Motor Power Kw:

0.37 kW heavy duty

Range Of Product:

Altivar Machine ATV320

Communication Port Protocol:

Modbus serial || CANopen

Permitted Relative Humidity (During Operation):

class 3K5 according to EN 60721-3

Minimum Switching Current:

relay output R1A, R1B, R1C, R2A, R2C 5 mA 24 V DC

Product Or Component Type:

variable speed drive

With Safety Function Safe Operating Stop (Sos):

FALSE

Base Load Current At High Overload:

33.0 A

Net Weight:

5.9 kg

Environmental Class (During Operation):

class 3C3 according to IEC 60721-3-3 || class 3S2 according to IEC 60721-3-3

With Safety Function Safe Stop 1 (Ss1):

TRUE

Maximum Acceleration Under Shock Impact (During Operation):

150 m/s² at 11 ms

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Upgradeability:

Upgraded components available

Standards:

IEC 61800-5-1

Pollution Degree:

3

Maximum Deflection Under Vibratory Load (During Operation):

1.5 mm at 2...13 Hz

With Safety Function Safe Speed Monitor (Ssm):

FALSE

Analogue Output Type:

software-configurable current AQ1 0...20 mA 800 Ohm 10 bits || software-configurable voltage AQ1 0...10 V DC 470 Ohm 10 bits

Mercury Free:

Yes

With Safety Function Safe Torque Off (Sto):

TRUE

Discrete Output Number:

3

Operating Position:

vertical +/- 10 degree

Rohs Exemption Information:

Yes

Variant:

standard version

Circularity Profile:

ENVEOLI1908003EN

Synchronous Motor Control Profile:

vector control without sensor

With Safety Function Safe Direction (Sdi):

FALSE

Discrete Input Type:

STO safe torque off, 24 V DC1.5 kOhm || DI1...DI6 logic inputs, 24 V DC 30 V) || DI5 programmable as pulse input 0-30 kHz, 24 V DC 30 V)

Method Of Access:

slave CANopen

With Safety Function Safe Brake Management (Sbc/Sbt):

FALSE

Sustainable Offer Status:

Green Premium product

Regulation Loop:

adjustable PID regulator

Maximum Output Frequency:

0.599 kHz

Environmental Disclosure:

ENVPEP1908003EN

With Safety Function Safe Position (Sp):

FALSE

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Maximum Output Voltage:

500 V

Maximum Switching Current:

relay output R1A, R1B, R1C resistive, cos phi = 1 3 A 250 V AC || relay output R1A, R1B, R1C resistive, cos phi = 1 3 A 30 V DC || relay output R1A, R1B, R1C, R2A, R2C inductive, cos phi = 0.4 7 ms 2 A 250 V AC || relay output R1A, R1B, R1C, R2A, R2C

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Braking To Standstill:

by DC injection

Nominal Output Current:

1.5 A

With Sft Fct Safe Stop 2 (Ss2):

FALSE

Electromagnetic Compatibility:

electrostatic discharge immunity test level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge im

China Rohs Regulation:

X

Ambient Air Transport Temperature:

-25-70 °C

Emc Filter:

Class C2 EMC filter integrated

Relay Output Type:

configurable relay logic R1A 1 NO 100000 cycles || configurable relay logic R1B 1 NC 100000 cycles || configurable relay logic R1C || configurable relay logic R2A 1 NO 100000 cycles || configurable relay logic R2C

Relative Symmetric Network Frequency Tolerance:

0.05

With Safety Function Safely Limited Position (Slp):

FALSE

Analogue Input Number:

3

Format Of The Drive:

enclosed

Speed Accuracy:

+/- 10 % of nominal slip 0.2 Tn to Tn

Transient Overtorque:

170-200 % of nominal motor torque

Apparent Power:

1.4 kVA 500 V heavy duty)

Network Frequency:

50-60 Hz

Overvoltage Category:

III

Mounting Mode:

wall mount

Catalog:

View
