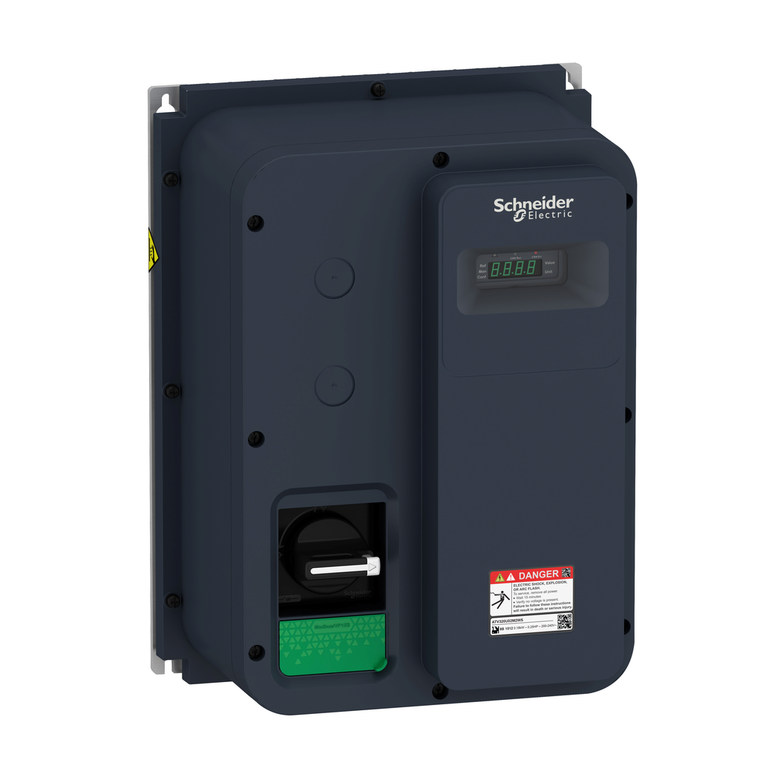

Schneider Electric ATV320U07M2WS Atv320 0,75Kw 200V 1Ph With Vario Ip65

Schneider Electric ATV320U07M2WS Atv320 0,75Kw 200V 1Ph With Vario Ip65

Schneider Electric
SKU:
ATV320U07M2WS
|
UPC:
3606489548599
$753.38
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
Altivar Machine ATV320 range is an offer of variable speed drives designed for Original Equipment Manufacturers (OEMs). This ATV320 drive can feed single-phase synchronous and asynchronous motors. It works at a rated power up to 0.75kW, and a rated voltage from 200V to 240V. Altivar high IP offers washable drives for harsh environments, if users want to clean the dust and chemical pollution outside of drives. It is delivered without fan, with embedded EMC C2 filter and it provides IP66 protection. It integrates as standard Modbus and CANopen communication protocols with access via the RJ45 connector on the front of the drive. It weighs 5.5kg. The drive software includes 5 safety functions that help machines meet safety requirements. These safety functions are configured using SoMove software. This Altivar Machine ATV320 is designed for conveyors, carton packers, gantry cranes, woodworking, metal processing, fans, Food & Beverage industry. It conforms to IEC, UL, TUV, KC and other international standards. EcoStruxure Machine software compatibility enables developping, configuring and commissioning the entire machine in a single software environment, including logic, motion control, HMI and related network automation functions. It is delivered in 2 packages. ATV320 can be installed alone or side by side in a multi-drive configuration. The Altivar Machine ATV320 series focus on easy integration for simple and advanced machine requirements with proven motor control and connectivity. ATV320 drives are specifically designed for material handling, packaging, textiles, hoisting, mechanical actuators, and material working.
Additional Information
Apparent Power:
2.0 kVA 240 V heavy duty)
Standards:
IEC 61800-5-1
Line Current:
10.1 A 200 V heavy duty) || 8.4 A 240 V heavy duty)
With Safety Function Safely Limited Speed (Sls):
TRUE
Environmental Disclosure:
ENVPEP1908002EN
With Sft Fct Safe Stop 2 (Ss2):
FALSE
Protection Type:
input phase breaks drive || overcurrent between output phases and earth drive || overheating protection drive || short-circuit between motor phases drive || thermal protection drive
Product Or Component Type:
variable speed drive
Analogue Input Type:
AI1 voltage 0...10 V DC 30 kOhm 10 bits || AI2 bipolar differential voltage +/- 10 V DC 30 kOhm 10 bits || AI3 current 0...20 mA (or 4-20 mA, x-20 mA, 20-x mA or other patterns by configuration) 250 Ohm 10 bits
With Safety Function Safe Programmable Logic:
FALSE
Asynchronous Motor Control Profile:
voltage/frequency ratio, 5 points || flux vector control without sensor, standard || voltage/frequency ratio - Energy Saving, quadratic U/f || flux vector control without sensor - Energy Saving || voltage/frequency ratio, 2 points
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Maximum Output Voltage:
240 V
Marking:
CE || ATEX || UL || CSA || EAC || RCM
China Rohs Regulation:
X
Analogue Output Type:
software-configurable current AQ1 0...20 mA 800 Ohm 10 bits || software-configurable voltage AQ1 0...10 V DC 470 Ohm 10 bits
Circularity Profile:
ENVEOLI1908002EN
Variant:
with disconnect switch
Width:
250 mm
Option Card:
communication module, CANopen || communication module, EtherCAT || communication module, Profibus DP V1 || communication module, PROFINET || communication module, Ethernet Powerlink || communication module, EtherNet/IP || communication module, Device
Acceleration And Deceleration Ramps:
linear || U || S || CUS || ramp switching || acceleration/deceleration ramp adaptation || acceleration/deceleration automatic stop with DC injection
Discrete Input Number:
7
Rohs Exemption Information:
Yes
Power Dissipation In W:
self-cooled 45.0 W 200 V 4 kHz
With Safety Function Safely Limited Position (Slp):
FALSE
Maximum Output Frequency:
0.599 kHz
Mercury Free:
Yes
With Safety Function Safe Stop 1 (Ss1):
TRUE
Maximum Switching Current:
relay output R1A, R1B, R1C resistive, cos phi = 1 3 A 250 V AC || relay output R1A, R1B, R1C resistive, cos phi = 1 3 A 30 V DC || relay output R1A, R1B, R1C, R2A, R2C inductive, cos phi = 0.4 7 ms 2 A 250 V AC || relay output R1A, R1B, R1C, R2A, R2C
Motor Power Kw:
0.75 kW heavy duty
Motor Slip Compensation:
automatic whatever the load || adjustable 0...300 % || not available in voltage/frequency ratio (2 or 5 points)
Regulation Loop:
adjustable PID regulator
Ambient Air Temperature For Storage:
-25-70 °C
Product Certifications:
CE || ATEX || NOM || GOST || EAC || RCM || KC
Synchronous Motor Control Profile:
vector control without sensor
Ip Degree Of Protection:
IP65
Braking To Standstill:
by DC injection
Nominal Output Current:
4.8 A
Network Frequency:
50-60 Hz
Depth:
182.0 mm
Mounting Mode:
wall mount
Transient Overtorque:
170-200 % of nominal motor torque
Electromagnetic Compatibility:
electrostatic discharge immunity test level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge im
Speed Accuracy:
+/- 10 % of nominal slip 0.2 Tn to Tn
Analogue Output Number:
1
Pollution Degree:
3
Net Weight:
5.5 kg
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Relay Output Type:
configurable relay logic R1A 1 NO 100000 cycles || configurable relay logic R1B 1 NC 100000 cycles || configurable relay logic R1C || configurable relay logic R2A 1 NO 100000 cycles || configurable relay logic R2C
Ambient Air Temperature For Operation:
-10-40 °C without derating || 40-60 °C with derating factor
Maximum Acceleration Under Shock Impact (During Operation):
150 m/s² at 11 ms
Discrete Output Number:
3
With Safety Function Safe Operating Stop (Sos):
FALSE
Discrete Output Type:
open collector DQ+ 0-1 kHz 30 V DC 100 mA || open collector DQ- 0-1 kHz 30 V DC 100 mA
Height:
340 mm
Format Of The Drive:
enclosed
Discrete Input Type:
STO safe torque off, 24 V DC1.5 kOhm || DI1...DI6 logic inputs, 24 V DC 30 V) || DI5 programmable as pulse input 0-30 kHz, 24 V DC 30 V)
4 Quadrant Operation Possible:
TRUE
Permitted Relative Humidity (During Operation):
class 3K5 according to EN 60721-3
Brake Chopper Integrated:
TRUE
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Switching Frequency:
2...16 kHz adjustable || 4...16 kHz with derating factor
Communication Port Protocol:
Modbus serial || CANopen
Sustainable Offer Status:
Green Premium product
Overvoltage Category:
III
Discrete Input Logic:
positive logic (source) || negative logic (sink)
Environmental Class (During Operation):
class 3C3 according to IEC 60721-3-3 || class 3S2 according to IEC 60721-3-3
Minimum Switching Current:
relay output R1A, R1B, R1C, R2A, R2C 5 mA 24 V DC
Nominal Switching Frequency:
4 kHz
With Safety Function Safe Speed Monitor (Ssm):
FALSE
Product Specific Application:
complex machines
With Safety Function Safe Torque Off (Sto):
TRUE
Operating Position:
vertical +/- 10 degree
Prospective Line Isc:
1 kA
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Base Load Current At High Overload:
1.9 A
Range Of Product:
Altivar Machine ATV320
[Us] Rated Supply Voltage:
200...240 V - 15...10 %
Upgradeability:
Upgraded components available
Analogue Input Number:
3
Relative Symmetric Network Frequency Tolerance:
0.05
With Safety Function Safe Brake Management (Sbc/Sbt):
FALSE
Maximum Acceleration Under Vibrational Stress (During Operation):
10 m/s² at 13...200 Hz
With Safety Function Safe Position (Sp):
FALSE
Ambient Air Transport Temperature:
-25-70 °C
With Safety Function Safe Direction (Sdi):
FALSE
Maximum Deflection Under Vibratory Load (During Operation):
1.5 mm at 2...13 Hz
Emc Filter:
Class C2 EMC filter integrated
Method Of Access:
slave CANopen
Catalog:
View
Datasheet:
View
