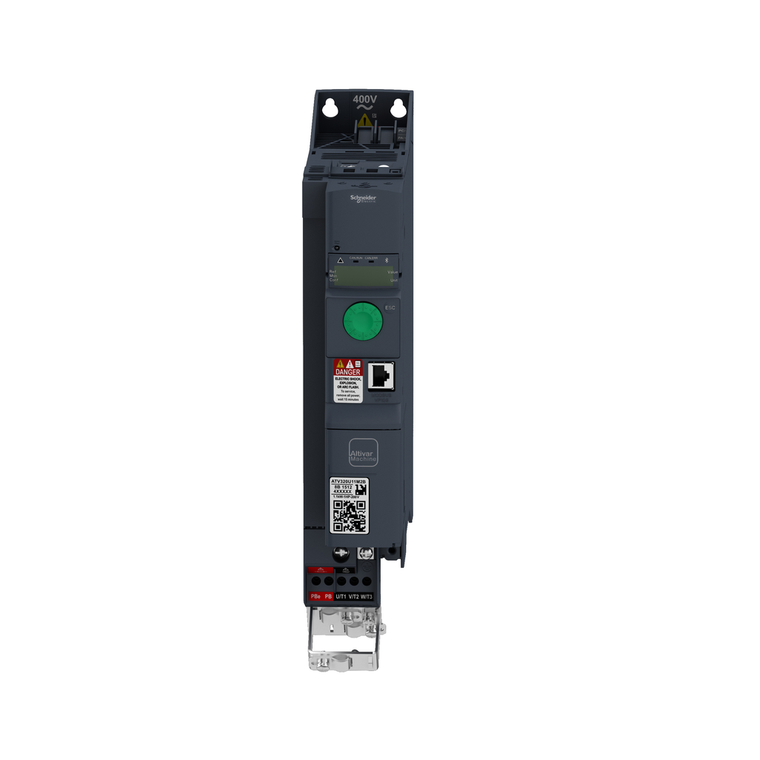

Schneider Electric ATV320U11N4B Atv320 Book 1.1Kw - 3Ph - 380/500V
Schneider Electric
$714.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric ATV320U11N4B Atv320 Book 1.1Kw - 3Ph - 380/500V
This Altivar 320 variable speed drive can feed 3-phase synchronous and asynchronous motors. Its book form factor allows for a simple and compact installation in your automation cabinets. It works at a rated power up to 1.1kW / 1.5hp and a rated voltage from 380V to 500V AC. Its robust design with IEC 60721-3-3 class 3C3 coated printed circuit boards allows to extend machine availability in harsh environmental conditions, for example at ambient temperatures of up to 60°C without the need of additional cooling. It incorporates functions suitable for the most common applications, including torque and speed accuracy at very low speed, high dynamic performance with flux vector control without sensor and extended frequency range for high-speed motors. It also incorporates parallel connection of motors and special drives using the voltage/frequency ratio and static speed accuracy and energy saving for open-loop synchronous motors. The drive software includes 5 safety functions that help machines meet safety requirements, whether or not they are used in conjunction with a Preventa safety module. These safety functions are configured using SoMove software. Altivar Machine ATV320 was designed for Original Equipment Manufacturers (OEMs) that meets simple and advanced application requirements covered for packaging, material handling, textile, material working, mechanical actuators and hoisting. It conforms to international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 (immunity and conducted and radiated EMC emissions). It is also CE, UL, CSA, NOM, EAC and RCM certified. Mounting accessories and external options (braking resistors, line chokes, motor chokes, additional EMC filters) are available with Altivar Machine ATV320 drives. The type of external accessories and options depends on the drive rating. It is designed to be mounted in vertical position (+/- 10 °) on a panel, thanks to 4 fixing holes. It is fully integrated inside Schneider Electric’s EcoStruxure Machine through DTM. It is possible to configure, control, and diagnose ATV320 drives directly in SoMachine and SoMove software by means of the same software brick (DTM).
- Braking To Standstill:
- by DC injection
- Motor Slip Compensation:
- automatic whatever the load || adjustable 0...300 % || not available in voltage/frequency ratio (2 or 5 points)
- Net Weight:
- 2.5 kg
- With Safety Function Safe Position (Sp):
- FALSE
- Volume Of Cooling Air:
- 9.4 m3/h
- Nominal Output Current:
- 3.0 A
- Analogue Output Number:
- 1
- Product Certifications:
- CE || ATEX || NOM || GOST || EAC || RCM || KC
- Electromagnetic Compatibility:
- electrostatic discharge immunity test level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge im
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Maximum Acceleration Under Vibrational Stress (During Operation):
- 10 m/s² at 13...200 Hz
- Permitted Relative Humidity (During Operation):
- class 3K5 according to EN 60721-3
- With Safety Function Safe Speed Monitor (Ssm):
- FALSE
- Product Specific Application:
- complex machines
- Switching Frequency:
- 2...16 kHz adjustable || 4...16 kHz with derating factor
- Network Frequency:
- 50-60 Hz
- Motor Power Kw:
- 1.1 kW heavy duty
- Relative Symmetric Network Frequency Tolerance:
- 0.05
- Brake Chopper Integrated:
- TRUE
- Standards:
- IEC 61800-5-1
- With Safety Function Safe Stop 1 (Ss1):
- TRUE
- Analogue Output Type:
- software-configurable current AQ1 0...20 mA 800 Ohm 10 bits || software-configurable voltage AQ1 0...10 V DC 470 Ohm 10 bits
- With Safety Function Safe Programmable Logic:
- FALSE
- Line Current:
- 5.0 A 380 V heavy duty) || 3.8 A 500 V heavy duty)
- Nominal Switching Frequency:
- 4 kHz
- Maximum Switching Current:
- relay output R1A, R1B, R1C resistive, cos phi = 1 3 A 250 V AC || relay output R1A, R1B, R1C resistive, cos phi = 1 3 A 30 V DC || relay output R1A, R1B, R1C, R2A, R2C inductive, cos phi = 0.4 7 ms 2 A 250 V AC || relay output R1A, R1B, R1C, R2A, R2C
- Mercury Free:
- Yes
- Asynchronous Motor Control Profile:
- voltage/frequency ratio, 5 points || flux vector control without sensor, standard || voltage/frequency ratio - Energy Saving, quadratic U/f || flux vector control without sensor - Energy Saving || voltage/frequency ratio, 2 points
- Discrete Input Type:
- STO safe torque off, 24 V DC1.5 kOhm || DI1...DI6 logic inputs, 24 V DC 30 V) || DI5 programmable as pulse input 0-30 kHz, 24 V DC 30 V)
- With Safety Function Safe Brake Management (Sbc/Sbt):
- FALSE
- Acceleration And Deceleration Ramps:
- linear || U || S || CUS || ramp switching || acceleration/deceleration ramp adaptation || acceleration/deceleration automatic stop with DC injection
- Upgradeability:
- Upgraded components available
- Circularity Profile:
- ENVEOLI1711005EN
- Power Dissipation In W:
- fan 41 W 380 V 4 kHz
- Environmental Class (During Operation):
- class 3C3 according to IEC 60721-3-3 || class 3S2 according to IEC 60721-3-3
- Overvoltage Category:
- III
- Height:
- 325.0 mm
- Marking:
- CE || ATEX || UL || CSA || EAC || RCM
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Regulation Loop:
- adjustable PID regulator
- With Safety Function Safe Operating Stop (Sos):
- FALSE
- Depth:
- 245.0 mm
- Environmental Disclosure:
- ENVPEP1711005EN
- With Safety Function Safely Limited Speed (Sls):
- TRUE
- With Sft Fct Safe Stop 2 (Ss2):
- FALSE
- Analogue Input Number:
- 3
- Apparent Power:
- 3.3 kVA 500 V heavy duty)
- Communication Port Protocol:
- Modbus serial || CANopen
- Format Of The Drive:
- book
- Pollution Degree:
- 2
- Relay Output Type:
- configurable relay logic R1A 1 NO 100000 cycles || configurable relay logic R1B 1 NC 100000 cycles || configurable relay logic R1C || configurable relay logic R2A 1 NO 100000 cycles || configurable relay logic R2C
- Ambient Air Temperature For Storage:
- -25-70 °C
- Emc Filter:
- Class C2 EMC filter integrated
- Maximum Acceleration Under Shock Impact (During Operation):
- 150 m/s² at 11 ms
- Maximum Deflection Under Vibratory Load (During Operation):
- 1.5 mm at 2...13 Hz
- Protection Type:
- input phase breaks drive || overcurrent between output phases and earth drive || overheating protection drive || short-circuit between motor phases drive || thermal protection drive
- Sustainable Offer Status:
- Green Premium product
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Discrete Output Type:
- open collector DQ+ 0-1 kHz 30 V DC 100 mA || open collector DQ- 0-1 kHz 30 V DC 100 mA
- With Safety Function Safe Direction (Sdi):
- FALSE
- Maximum Output Frequency:
- 0.599 kHz
- Ambient Air Transport Temperature:
- -25-70 °C
- With Safety Function Safe Torque Off (Sto):
- TRUE
- Discrete Input Number:
- 7
- China Rohs Regulation:
- X
- Transient Overtorque:
- 170-200 % of nominal motor torque
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Method Of Access:
- slave CANopen
- Width:
- 45.0 mm
- 4 Quadrant Operation Possible:
- TRUE
- Speed Accuracy:
- +/- 10 % of nominal slip 0.2 Tn to Tn
- Discrete Output Number:
- 3
- Base Load Current At High Overload:
- 9.0 A
- Ip Degree Of Protection:
- IP20
- Prospective Line Isc:
- 5 kA
- Analogue Input Type:
- AI1 voltage 0...10 V DC 30 kOhm 10 bits || AI2 bipolar differential voltage +/- 10 V DC 30 kOhm 10 bits || AI3 current 0...20 mA (or 4-20 mA, x-20 mA, 20-x mA or other patterns by configuration) 250 Ohm 10 bits
- [Us] Rated Supply Voltage:
- 380...500 V - 15...10 %
- Mounting Mode:
- cabinet mount
- Operating Position:
- vertical +/- 10 degree
- With Safety Function Safely Limited Position (Slp):
- FALSE
- Range Of Product:
- Altivar Machine ATV320
- Synchronous Motor Control Profile:
- vector control without sensor
- Option Card:
- communication module, CANopen || communication module, EtherCAT || communication module, Profibus DP V1 || communication module, PROFINET || communication module, Ethernet Powerlink || communication module, EtherNet/IP || communication module, Device
- Maximum Output Voltage:
- 500 V
- Ambient Air Temperature For Operation:
- -10-50 °C without derating || 50-60 °C with derating factor
- Variant:
- standard version || with disconnect switch
- Minimum Switching Current:
- relay output R1A, R1B, R1C, R2A, R2C 5 mA 24 V DC
- Discrete Input Logic:
- positive logic (source) || negative logic (sink)
- Product Or Component Type:
- variable speed drive
- Rohs Exemption Information:
- Yes
