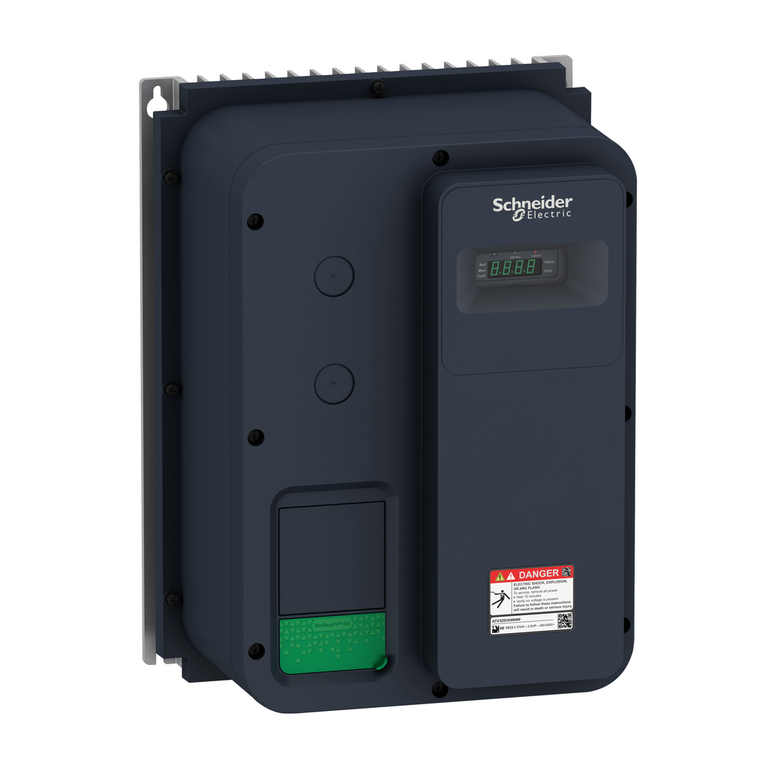

Schneider Electric ATV320U11N4W Atv320 1,1Kw 400V 3Ph Without Vario
Schneider Electric
$1,193.70
Altivar Machine ATV320 range is an offer of variable speed drives designed for Original Equipment Manufacturers (OEMs). This ATV320 drive can feed 3-phase synchronous and asynchronous motors. It works at a rated power up to 1.1kW, and a rated voltage from 380V to 500V. Altivar high IP offers washable drives for harsh environments, if users want to clean the dust and chemical pollution outside of drives. It is delivered without fan, with embedded EMC C2 filter and it provides IP66 protection. It integrates as standard Modbus and CANopen communication protocols with access via the RJ45 connector on the front of the drive. It weighs 6kg. The drive software includes 5 safety functions that help machines meet safety requirements. These safety functions are configured using SoMove software. This Altivar Machine ATV320 is designed for conveyors, carton packers, gantry cranes, woodworking, metal processing, fans, Food & Beverage industry. It conforms to IEC, UL, TUV, KC and other international standards. EcoStruxure Machine software compatibility enables developping, configuring and commissioning the entire machine in a single software environment, including logic, motion control, HMI and related network automation functions. It is delivered in 2 packages. ATV320 can be installed alone or side by side in a multi-drive configuration. The Altivar Machine ATV320 series focus on easy integration for simple and advanced machine requirements with proven motor control and connectivity. ATV320 drives are specifically designed for material handling, packaging, textiles, hoisting, mechanical actuators, and material working.
- Discrete Input Logic:
- positive logic (source) || negative logic (sink)
- Asynchronous Motor Control Profile:
- voltage/frequency ratio, 5 points || flux vector control without sensor, standard || voltage/frequency ratio - Energy Saving, quadratic U/f || flux vector control without sensor - Energy Saving || voltage/frequency ratio, 2 points
- Nominal Switching Frequency:
- 4 kHz
- Line Current:
- 5.0 A 380 V heavy duty) || 3.8 A 500 V heavy duty)
- Range Of Product:
- Altivar Machine ATV320
- Minimum Switching Current:
- relay output R1A, R1B, R1C, R2A, R2C 5 mA 24 V DC
- Upgradeability:
- Upgraded components available
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Discrete Output Number:
- 3
- Environmental Class (During Operation):
- class 3C3 according to IEC 60721-3-3 || class 3S2 according to IEC 60721-3-3
- Relay Output Type:
- configurable relay logic R1A 1 NO 100000 cycles || configurable relay logic R1B 1 NC 100000 cycles || configurable relay logic R1C || configurable relay logic R2A 1 NO 100000 cycles || configurable relay logic R2C
- Analogue Input Number:
- 3
- Maximum Deflection Under Vibratory Load (During Operation):
- 1.5 mm at 2...13 Hz
- Emc Filter:
- Class C2 EMC filter integrated
- Synchronous Motor Control Profile:
- vector control without sensor
- Protection Type:
- input phase breaks drive || overcurrent between output phases and earth drive || overheating protection drive || short-circuit between motor phases drive || thermal protection drive
- Mounting Mode:
- wall mount
- Overvoltage Category:
- III
- Operating Position:
- vertical +/- 10 degree
- With Safety Function Safe Torque Off (Sto):
- TRUE
- With Safety Function Safe Stop 1 (Ss1):
- TRUE
- Pollution Degree:
- 3
- Discrete Output Type:
- open collector DQ+ 0-1 kHz 30 V DC 100 mA || open collector DQ- 0-1 kHz 30 V DC 100 mA
- With Safety Function Safe Direction (Sdi):
- FALSE
- Motor Power Kw:
- 1.1 kW heavy duty
- Depth:
- 200 mm
- Base Load Current At High Overload:
- 1.5 A
- Width:
- 250 mm
- Brake Chopper Integrated:
- TRUE
- Discrete Input Number:
- 7
- With Safety Function Safely Limited Position (Slp):
- FALSE
- Transient Overtorque:
- 170-200 % of nominal motor torque
- Ambient Air Temperature For Operation:
- -10-40 °C without derating || 40-60 °C with derating factor
- Acceleration And Deceleration Ramps:
- linear || U || S || CUS || ramp switching || acceleration/deceleration ramp adaptation || acceleration/deceleration automatic stop with DC injection
- Electromagnetic Compatibility:
- electrostatic discharge immunity test level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge im
- Mercury Free:
- Yes
- Product Specific Application:
- complex machines
- Relative Symmetric Network Frequency Tolerance:
- 0.05
- Power Dissipation In W:
- self-cooled 40 W 380 V 4 kHz
- Option Card:
- communication module, CANopen || communication module, EtherCAT || communication module, Profibus DP V1 || communication module, PROFINET || communication module, Ethernet Powerlink || communication module, EtherNet/IP || communication module, Device
- Product Certifications:
- CE || ATEX || NOM || GOST || EAC || RCM || KC
- Maximum Output Voltage:
- 500 V
- Network Frequency:
- 50-60 Hz
- Speed Accuracy:
- +/- 10 % of nominal slip 0.2 Tn to Tn
- Permitted Relative Humidity (During Operation):
- class 3K5 according to EN 60721-3
- Switching Frequency:
- 2...16 kHz adjustable || 4...16 kHz with derating factor
- Height:
- 340 mm
- China Rohs Regulation:
- X
- Maximum Acceleration Under Shock Impact (During Operation):
- 150 m/s² at 11 ms
- Maximum Output Frequency:
- 0.599 kHz
- With Safety Function Safely Limited Speed (Sls):
- TRUE
- Ambient Air Temperature For Storage:
- -25-70 °C
- Format Of The Drive:
- enclosed
- Regulation Loop:
- adjustable PID regulator
- Rohs Exemption Information:
- Yes
- Method Of Access:
- slave CANopen
- Ip Degree Of Protection:
- IP66
- Environmental Disclosure:
- ENVPEP1908003EN
- Maximum Switching Current:
- relay output R1A, R1B, R1C resistive, cos phi = 1 3 A 250 V AC || relay output R1A, R1B, R1C resistive, cos phi = 1 3 A 30 V DC || relay output R1A, R1B, R1C, R2A, R2C inductive, cos phi = 0.4 7 ms 2 A 250 V AC || relay output R1A, R1B, R1C, R2A, R2C
- Communication Port Protocol:
- Modbus serial || CANopen
- With Safety Function Safe Position (Sp):
- FALSE
- Analogue Output Type:
- software-configurable current AQ1 0...20 mA 800 Ohm 10 bits || software-configurable voltage AQ1 0...10 V DC 470 Ohm 10 bits
- Nominal Output Current:
- 3.0 A
- Variant:
- standard version || with disconnect switch
- With Safety Function Safe Speed Monitor (Ssm):
- FALSE
- Motor Slip Compensation:
- automatic whatever the load || adjustable 0...300 % || not available in voltage/frequency ratio (2 or 5 points)
- Analogue Output Number:
- 1
- Ambient Air Transport Temperature:
- -25-70 °C
- With Safety Function Safe Operating Stop (Sos):
- FALSE
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Maximum Acceleration Under Vibrational Stress (During Operation):
- 10 m/s² at 13...200 Hz
- With Safety Function Safe Brake Management (Sbc/Sbt):
- FALSE
- Analogue Input Type:
- AI1 voltage 0...10 V DC 30 kOhm 10 bits || AI2 bipolar differential voltage +/- 10 V DC 30 kOhm 10 bits || AI3 current 0...20 mA (or 4-20 mA, x-20 mA, 20-x mA or other patterns by configuration) 250 Ohm 10 bits
- 4 Quadrant Operation Possible:
- TRUE
- Circularity Profile:
- ENVEOLI1908003EN
- Net Weight:
- 6.0 kg
- Marking:
- CE || ATEX || UL || CSA || EAC || RCM
- Product Or Component Type:
- variable speed drive
- Discrete Input Type:
- STO safe torque off, 24 V DC1.5 kOhm || DI1...DI6 logic inputs, 24 V DC 30 V) || DI5 programmable as pulse input 0-30 kHz, 24 V DC 30 V)
- Sustainable Offer Status:
- Green Premium product
- Standards:
- IEC 61800-5-1
- [Us] Rated Supply Voltage:
- 380...500 V - 15...10 %
- Braking To Standstill:
- by DC injection
- With Safety Function Safe Programmable Logic:
- FALSE
- Prospective Line Isc:
- 5 kA
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- With Sft Fct Safe Stop 2 (Ss2):
- FALSE
- Apparent Power:
- 3.3 kVA 500 V heavy duty)
