Schneider Electric

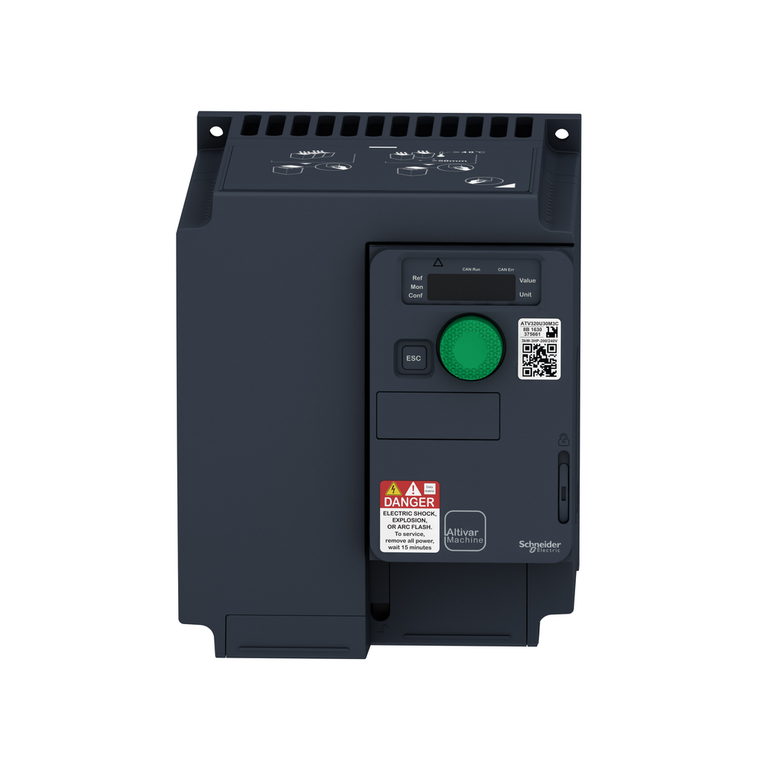

Schneider Electric ATV320U30M3C Atv320 3Kw 200V 3Ph Compact Control Vari

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric ATV320U30M3C Atv320 3Kw 200V 3Ph Compact Control Vari

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ATV320U30M3C

UPC:

3606480966651

MPN:

Condition:

New

Marking:

CE || ATEX || UL || CSA || EAC || RCM

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Ambient Air Transport Temperature:

-25-70 °C

Maximum Output Voltage:

240 V

Mercury Free:

Yes

Operating Position:

vertical +/- 10 degree

Emc Filter:

without EMC filter

Pollution Degree:

2

Analogue Output Number:

1

Width:

140 mm

With Safety Function Safe Position (Sp):

FALSE

Power Dissipation In W:

fan 105.0 W 200 V 4 kHz

Product Certifications:

CE || ATEX || NOM || GOST || EAC || RCM || KC

Rohs Exemption Information:

Yes

Method Of Access:

slave CANopen

Speed Accuracy:

+/- 10 % of nominal slip 0.2 Tn to Tn

Regulation Loop:

adjustable PID regulator

Maximum Output Frequency:

0.599 kHz

Environmental Class (During Operation):

class 3C3 according to IEC 60721-3-3 || class 3S2 according to IEC 60721-3-3

Upgradeability:

Upgraded components available

Prospective Line Isc:

5 kA

With Safety Function Safe Speed Monitor (Ssm):

FALSE

Ip Degree Of Protection:

IP20

Base Load Current At High Overload:

3.0 A

Mounting Mode:

wall mount

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Nominal Switching Frequency:

4 kHz

Analogue Input Type:

AI1 voltage 0...10 V DC 30 kOhm 10 bits || AI2 bipolar differential voltage +/- 10 V DC 30 kOhm 10 bits || AI3 current 0...20 mA (or 4-20 mA, x-20 mA, 20-x mA or other patterns by configuration) 250 Ohm 10 bits

Transient Overtorque:

170-200 % of nominal motor torque

With Safety Function Safe Stop 1 (Ss1):

TRUE

Product Specific Application:

complex machines

Analogue Output Type:

software-configurable current AQ1 0...20 mA 800 Ohm 10 bits || software-configurable voltage AQ1 0...10 V DC 470 Ohm 10 bits

4 Quadrant Operation Possible:

TRUE

Asynchronous Motor Control Profile:

voltage/frequency ratio, 5 points || flux vector control without sensor, standard || voltage/frequency ratio - Energy Saving, quadratic U/f || flux vector control without sensor - Energy Saving || voltage/frequency ratio, 2 points

Switching Frequency:

2...16 kHz adjustable || 4...16 kHz with derating factor

Depth:

158.0 mm

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Network Frequency:

50-60 Hz

With Safety Function Safe Torque Off (Sto):

TRUE

Standards:

IEC 61800-5-1

Sustainable Offer Status:

Green Premium product

With Safety Function Safely Limited Speed (Sls):

TRUE

[Us] Rated Supply Voltage:

200...240 V - 15...10 %

Environmental Disclosure:

ENVPEP1512005EN

Protection Type:

input phase breaks drive || overcurrent between output phases and earth drive || overheating protection drive || short-circuit between motor phases drive || thermal protection drive

With Safety Function Safe Programmable Logic:

FALSE

Volume Of Cooling Air:

16.4 m3/h

With Safety Function Safe Operating Stop (Sos):

FALSE

Discrete Output Number:

3

Maximum Acceleration Under Shock Impact (During Operation):

150 m/s² at 11 ms

Discrete Input Logic:

positive logic (source) || negative logic (sink)

Range Of Product:

Altivar Machine ATV320

Circularity Profile:

ENVEOLI1512005EN

Acceleration And Deceleration Ramps:

linear || U || S || CUS || ramp switching || acceleration/deceleration ramp adaptation || acceleration/deceleration automatic stop with DC injection

Product Or Component Type:

variable speed drive

Discrete Input Type:

STO safe torque off, 24 V DC1.5 kOhm || DI1...DI6 logic inputs, 24 V DC 30 V) || DI5 programmable as pulse input 0-30 kHz, 24 V DC 30 V)

Discrete Output Type:

open collector DQ+ 0-1 kHz 30 V DC 100 mA || open collector DQ- 0-1 kHz 30 V DC 100 mA

China Rohs Regulation:

X

Option Card:

communication module, CANopen || communication module, EtherCAT || communication module, Profibus DP V1 || communication module, PROFINET || communication module, Ethernet Powerlink || communication module, EtherNet/IP || communication module, Device

Line Current:

18.7 A 200 V heavy duty) || 15.7 A 240 V heavy duty)

Format Of The Drive:

compact

Nominal Output Current:

13.7 A

With Sft Fct Safe Stop 2 (Ss2):

FALSE

Relative Symmetric Network Frequency Tolerance:

0.05

Braking To Standstill:

by DC injection

Apparent Power:

6.5 kVA 240 V heavy duty)

Ambient Air Temperature For Operation:

-10-50 °C without derating || 50-60 °C with derating factor

Motor Slip Compensation:

automatic whatever the load || adjustable 0...300 % || not available in voltage/frequency ratio (2 or 5 points)

With Safety Function Safe Direction (Sdi):

FALSE

Motor Power Kw:

3.0 kW heavy duty

Net Weight:

2.2 kg

Communication Port Protocol:

Modbus serial || CANopen

Brake Chopper Integrated:

TRUE

Analogue Input Number:

3

Ambient Air Temperature For Storage:

-25-70 °C

Electromagnetic Compatibility:

electrostatic discharge immunity test level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge im

Relay Output Type:

configurable relay logic R1A 1 NO 100000 cycles || configurable relay logic R1B 1 NC 100000 cycles || configurable relay logic R1C || configurable relay logic R2A 1 NO 100000 cycles || configurable relay logic R2C

Overvoltage Category:

III

Maximum Acceleration Under Vibrational Stress (During Operation):

10 m/s² at 13...200 Hz

Permitted Relative Humidity (During Operation):

class 3K5 according to EN 60721-3

Synchronous Motor Control Profile:

vector control without sensor

Height:

184.0 mm

With Safety Function Safe Brake Management (Sbc/Sbt):

FALSE

With Safety Function Safely Limited Position (Slp):

FALSE

Maximum Switching Current:

relay output R1A, R1B, R1C resistive, cos phi = 1 3 A 250 V AC || relay output R1A, R1B, R1C resistive, cos phi = 1 3 A 30 V DC || relay output R1A, R1B, R1C, R2A, R2C inductive, cos phi = 0.4 7 ms 2 A 250 V AC || relay output R1A, R1B, R1C, R2A, R2C

Minimum Switching Current:

relay output R1A, R1B, R1C, R2A, R2C 5 mA 24 V DC

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Discrete Input Number:

7

Maximum Deflection Under Vibratory Load (During Operation):

1.5 mm at 2...13 Hz

Variant:

standard version || with disconnect switch
