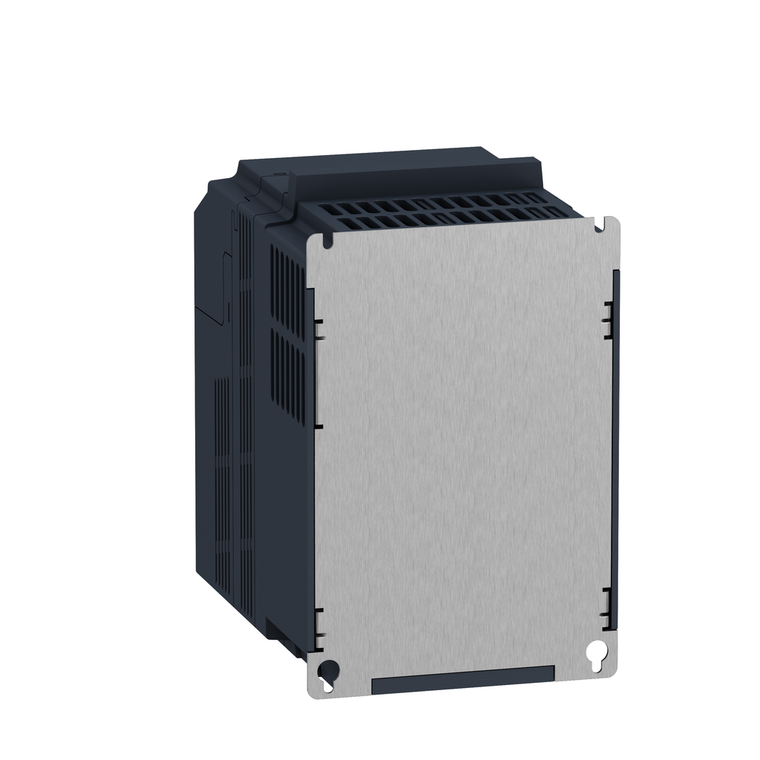

Schneider Electric ATV320U55N4B Atv320 Book 5.5Kw - 3Ph - 380/500V

(No reviews yet) Write a Review

Write a Review

Schneider Electric ATV320U55N4B Atv320 Book 5.5Kw - 3Ph - 380/500V

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ATV320U55N4B

UPC:

3606480931291

MPN:

Condition:

New

Overvoltage Category:

III

Environmental Disclosure:

ENVPEP1708004EN

Pollution Degree:

2

Maximum Acceleration Under Shock Impact (During Operation):

150 m/s² at 11 ms

With Sft Fct Safe Stop 2 (Ss2):

FALSE

Format Of The Drive:

book

With Safety Function Safe Stop 1 (Ss1):

TRUE

Mercury Free:

Yes

Depth:

232.0 mm

Permitted Relative Humidity (During Operation):

class 3K5 according to EN 60721-3

Discrete Input Logic:

positive logic (source) || negative logic (sink)

Power Dissipation In W:

fan 195.0 W 380 V 4 kHz

Rohs Exemption Information:

Yes

Upgradeability:

Upgraded components available

Discrete Input Number:

7

Asynchronous Motor Control Profile:

voltage/frequency ratio, 5 points || flux vector control without sensor, standard || voltage/frequency ratio - Energy Saving, quadratic U/f || flux vector control without sensor - Energy Saving || voltage/frequency ratio, 2 points

Product Specific Application:

complex machines

Electromagnetic Compatibility:

electrostatic discharge immunity test level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge immu

Line Current:

20.7 A 380 V heavy duty) || 14.5 A 500 V heavy duty)

Transient Overtorque:

170-200 % of nominal motor torque

Prospective Line Isc:

22 kA

Analogue Output Type:

software-configurable current AQ1 0...20 mA 800 Ohm 10 bits || software-configurable voltage AQ1 0...10 V DC 470 Ohm 10 bits

Product Or Component Type:

variable speed drive

Motor Power Kw:

5.5 kW heavy duty

With Safety Function Safely Limited Position (Slp):

FALSE

Protection Type:

input phase breaks drive || overcurrent between output phases and earth drive || overheating protection drive || short-circuit between motor phases drive || thermal protection drive

Switching Frequency:

2...16 kHz adjustable || 4...16 kHz with derating factor

Maximum Deflection Under Vibratory Load (During Operation):

1.5 mm at 2...13 Hz

Operating Position:

vertical +/- 10 degree

Emc Filter:

Class C2 EMC filter integrated

Maximum Output Frequency:

0.599 kHz

Apparent Power:

12.6 kVA 500 V heavy duty)

Volume Of Cooling Air:

60 m3/h

Option Card:

communication module, CANopen || communication module, EtherCAT || communication module, Profibus DP V1 || communication module, PROFINET || communication module, Ethernet Powerlink || communication module, EtherNet/IP || communication module, Device

Method Of Access:

slave CANopen

With Safety Function Safe Torque Off (Sto):

TRUE

Acceleration And Deceleration Ramps:

linear || U || S || CUS || ramp switching || acceleration/deceleration ramp adaptation || acceleration/deceleration automatic stop with DC injection

China Rohs Regulation:

X

Mounting Mode:

wall mount

Discrete Input Type:

STO safe torque off, 24 V DC1.5 kOhm || DI1...DI6 logic inputs, 24 V DC 30 V) || DI5 programmable as pulse input 0-30 kHz, 24 V DC 30 V)

Ambient Air Temperature For Storage:

-25-70 °C

Environmental Class (During Operation):

class 3C3 according to IEC 60721-3-3 || class 3S2 according to IEC 60721-3-3

Communication Port Protocol:

Modbus serial || CANopen

Nominal Switching Frequency:

4 kHz

Maximum Output Voltage:

500 V

Maximum Switching Current:

relay output R1A, R1B, R1C resistive, cos phi = 1 3 A 250 V AC || relay output R1A, R1B, R1C resistive, cos phi = 1 3 A 30 V DC || relay output R1A, R1B, R1C, R2A, R2C inductive, cos phi = 0.4 7 ms 2 A 250 V AC || relay output R1A, R1B, R1C, R2A, R2C

Standards:

IEC 61800-5-1

Marking:

CE || ATEX || UL || CSA || EAC || RCM

Analogue Input Number:

3

Ambient Air Temperature For Operation:

-10-50 °C without derating || 50-60 °C with derating factor

Range Of Product:

Altivar Machine ATV320

Discrete Output Number:

3

Product Certifications:

CE || ATEX || NOM || GOST || EAC || RCM || KC

Analogue Output Number:

1

Discrete Output Type:

open collector DQ+ 0-1 kHz 30 V DC 100 mA || open collector DQ- 0-1 kHz 30 V DC 100 mA

Network Frequency:

50-60 Hz

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

With Safety Function Safe Programmable Logic:

FALSE

With Safety Function Safe Speed Monitor (Ssm):

FALSE

Brake Chopper Integrated:

TRUE

Maximum Acceleration Under Vibrational Stress (During Operation):

10 m/s² at 13...200 Hz

Speed Accuracy:

+/- 10 % of nominal slip 0.2 Tn to Tn

With Safety Function Safely Limited Speed (Sls):

TRUE

Ambient Air Transport Temperature:

-25-70 °C

With Safety Function Safe Position (Sp):

FALSE

Base Load Current At High Overload:

14.3 A

Width:

150 mm

Net Weight:

4.4 kg

Braking To Standstill:

by DC injection

Relay Output Type:

configurable relay logic R1A 1 NO 100000 cycles || configurable relay logic R1B 1 NC 100000 cycles || configurable relay logic R1C || configurable relay logic R2A 1 NO 100000 cycles || configurable relay logic R2C

Analogue Input Type:

AI1 voltage 0...10 V DC 30 kOhm 10 bits || AI2 bipolar differential voltage +/- 10 V DC 30 kOhm 10 bits || AI3 current 0...20 mA (or 4-20 mA, x-20 mA, 20-x mA or other patterns by configuration) 250 Ohm 10 bits

Minimum Switching Current:

relay output R1A, R1B, R1C, R2A, R2C 5 mA 24 V DC

Motor Slip Compensation:

automatic whatever the load || adjustable 0...300 % || not available in voltage/frequency ratio (2 or 5 points)

Relative Symmetric Network Frequency Tolerance:

0.05

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Circularity Profile:

ENVEOLI1708004EN

Height:

308.0 mm

With Safety Function Safe Operating Stop (Sos):

FALSE

Regulation Loop:

adjustable PID regulator

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Sustainable Offer Status:

Green Premium product

Nominal Output Current:

14.3 A

With Safety Function Safe Brake Management (Sbc/Sbt):

FALSE

Variant:

standard version

Synchronous Motor Control Profile:

vector control without sensor

Ip Degree Of Protection:

IP20

[Us] Rated Supply Voltage:

380...500 V - 15...10 %

4 Quadrant Operation Possible:

TRUE

With Safety Function Safe Direction (Sdi):

FALSE
