Schneider Electric ATV320U55N4C Atv320 Compact 5.5Kw - 3Ph - 380/500V
Schneider Electric
$1,290.00

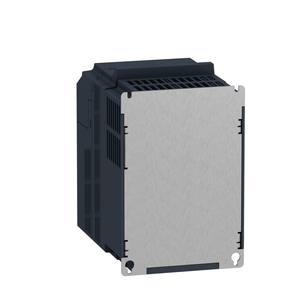

Altivar Machine ATV320 range is an offer of variable speed drives designed for Original Equipment Manufacturers (OEMs). Its compact form factor allows vertical stacking of drives inside machine frames It works at a rated power up to 5.5kW / 7.5hp and a rated voltage from 380V to 500V AC. Its robust design with IEC 60721-3-3 class 3C3 coated printed circuit boards allows to extend machine availability in harsh environmental conditions, for example at ambient temperatures of up to 60°C without the need of additional cooling. It incorporates functions suitable for the most common applications, including torque and speed accuracy at very low speed, high dynamic performance with flux vector control without sensor and extended frequency range for high-speed motors. It also incorporates parallel connection of motors and special drives using the voltage/frequency ratio and static speed accuracy and energy saving for open-loop synchronous motors. It weighs 2.2kg and its dimensions are 150mm wide, 232mm high, 172mm deep. Altivar Machine ATV320 meets simple and advanced application requirements covered for packaging, material handling, textile, material working, mechanical actuators and hoisting. It conforms to IEC, UL, TUV, KC and other international standards. Mounting accessories and external options (braking resistors, line chokes, motor chokes, additional EMC filters) are available with Altivar Machine ATV320 drives. The type of external accessories and options depends on the drive rating. The product is delivered in two packages. It is designed to be mounted in vertical position on a panel, thanks to 4 fixing holes. It is fully integrated inside Schneider Electric’s EcoStruxure Machine through DTM. It is possible to configure, control, and diagnose ATV320 drives directly in SoMachine and SoMove software by means of the same software brick (DTM). It is eco-friendly and complies with directives such as RoHS, WEEE, etc.relating to environmental protection.
- Maximum Switching Current:
- relay output R1A, R1B, R1C resistive, cos phi = 1 3 A 250 V AC || relay output R1A, R1B, R1C resistive, cos phi = 1 3 A 30 V DC || relay output R1A, R1B, R1C, R2A, R2C inductive, cos phi = 0.4 7 ms 2 A 250 V AC || relay output R1A, R1B, R1C, R2A, R2C
- With Safety Function Safely Limited Position (Slp):
- FALSE
- Product Certifications:
- CE || ATEX || NOM || GOST || EAC || RCM || KC
- Discrete Input Number:
- 7
- Mercury Free:
- Yes
- Discrete Output Type:
- open collector DQ+ 0-1 kHz 30 V DC 100 mA || open collector DQ- 0-1 kHz 30 V DC 100 mA
- Marking:
- CE || ATEX || UL || CSA || EAC || RCM
- Ambient Air Temperature For Storage:
- -25-70 °C
- Protection Type:
- input phase breaks drive || overcurrent between output phases and earth drive || overheating protection drive || short-circuit between motor phases drive || thermal protection drive
- Acceleration And Deceleration Ramps:
- linear || U || S || CUS || ramp switching || acceleration/deceleration ramp adaptation || acceleration/deceleration automatic stop with DC injection
- Apparent Power:
- 12.6 kVA 500 V heavy duty)
- Analogue Input Type:
- AI1 voltage 0...10 V DC 30 kOhm 10 bits || AI2 bipolar differential voltage +/- 10 V DC 30 kOhm 10 bits || AI3 current 0...20 mA (or 4-20 mA, x-20 mA, 20-x mA or other patterns by configuration) 250 Ohm 10 bits
- Communication Port Protocol:
- Modbus serial || CANopen
- With Safety Function Safe Programmable Logic:
- FALSE
- Maximum Output Voltage:
- 500 V
- Sustainable Offer Status:
- Green Premium product
- Rohs Exemption Information:
- Yes
- 4 Quadrant Operation Possible:
- TRUE
- Power Dissipation In W:
- fan 195.0 W 380 V 4 kHz
- Asynchronous Motor Control Profile:
- voltage/frequency ratio, 5 points || flux vector control without sensor, standard || voltage/frequency ratio - Energy Saving, quadratic U/f || flux vector control without sensor - Energy Saving || voltage/frequency ratio, 2 points
- Format Of The Drive:
- compact
- With Safety Function Safe Speed Monitor (Ssm):
- FALSE
- Overvoltage Category:
- III
- Speed Accuracy:
- +/- 10 % of nominal slip 0.2 Tn to Tn
- Regulation Loop:
- adjustable PID regulator
- With Safety Function Safe Torque Off (Sto):
- TRUE
- Discrete Output Number:
- 3
- Analogue Input Number:
- 3
- [Us] Rated Supply Voltage:
- 380...500 V - 15...10 %
- Electromagnetic Compatibility:
- electrostatic discharge immunity test level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge im
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Network Frequency:
- 50-60 Hz
- China Rohs Regulation:
- X
- Net Weight:
- 3.5 kg
- Ambient Air Transport Temperature:
- -25-70 °C
- With Safety Function Safe Stop 1 (Ss1):
- TRUE
- Environmental Disclosure:
- ENVPEP1604022EN
- Upgradeability:
- Upgraded components available
- Mounting Mode:
- wall mount
- Maximum Acceleration Under Shock Impact (During Operation):
- 150 m/s² at 11 ms
- With Safety Function Safely Limited Speed (Sls):
- TRUE
- Circularity Profile:
- ENVEOLI1604022EN
- With Safety Function Safe Brake Management (Sbc/Sbt):
- FALSE
- Minimum Switching Current:
- relay output R1A, R1B, R1C, R2A, R2C 5 mA 24 V DC
- Analogue Output Type:
- software-configurable current AQ1 0...20 mA 800 Ohm 10 bits || software-configurable voltage AQ1 0...10 V DC 470 Ohm 10 bits
- Product Or Component Type:
- variable speed drive
- Maximum Acceleration Under Vibrational Stress (During Operation):
- 10 m/s² at 13...200 Hz
- Braking To Standstill:
- by DC injection
- With Sft Fct Safe Stop 2 (Ss2):
- FALSE
- Base Load Current At High Overload:
- 14.3 A
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Prospective Line Isc:
- 22 kA
- Analogue Output Number:
- 1
- Volume Of Cooling Air:
- 60 m3/h
- Maximum Output Frequency:
- 0.599 kHz
- Pollution Degree:
- 2
- With Safety Function Safe Direction (Sdi):
- FALSE
- Line Current:
- 20.7 A 380 V heavy duty) || 14.5 A 500 V heavy duty)
- Discrete Input Logic:
- positive logic (source) || negative logic (sink)
- Emc Filter:
- integrated
- Nominal Output Current:
- 14.3 A
- Nominal Switching Frequency:
- 4 kHz
- Operating Position:
- vertical +/- 10 degree
- Discrete Input Type:
- STO safe torque off, 24 V DC1.5 kOhm || DI1...DI6 logic inputs, 24 V DC 30 V) || DI5 programmable as pulse input 0-30 kHz, 24 V DC 30 V)
- Depth:
- 178.0 mm
- Motor Power Kw:
- 5.5 kW heavy duty
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Permitted Relative Humidity (During Operation):
- class 3K5 according to EN 60721-3
- Relay Output Type:
- configurable relay logic R1A 1 NO 100000 cycles || configurable relay logic R1B 1 NC 100000 cycles || configurable relay logic R1C || configurable relay logic R2A 1 NO 100000 cycles || configurable relay logic R2C
- Motor Slip Compensation:
- automatic whatever the load || adjustable 0...300 % || not available in voltage/frequency ratio (2 or 5 points)
- Standards:
- IEC 61800-5-1
- Product Specific Application:
- complex machines
- Relative Symmetric Network Frequency Tolerance:
- 0.05
- With Safety Function Safe Operating Stop (Sos):
- FALSE
- Variant:
- standard version
- Switching Frequency:
- 2...16 kHz adjustable || 4...16 kHz with derating factor
- Range Of Product:
- Altivar Machine ATV320
- Ip Degree Of Protection:
- IP20
- Ambient Air Temperature For Operation:
- -10-50 °C without derating || 50-60 °C with derating factor
- Option Card:
- communication module, CANopen || communication module, EtherCAT || communication module, Profibus DP V1 || communication module, PROFINET || communication module, Ethernet Powerlink || communication module, EtherNet/IP || communication module, Device
- Synchronous Motor Control Profile:
- vector control without sensor
- With Safety Function Safe Position (Sp):
- FALSE
- Width:
- 150 mm
- Brake Chopper Integrated:
- TRUE
- Method Of Access:
- slave CANopen
- Maximum Deflection Under Vibratory Load (During Operation):
- 1.5 mm at 2...13 Hz
- Environmental Class (During Operation):
- class 3C3 according to IEC 60721-3-3 || class 3S2 according to IEC 60721-3-3
- Transient Overtorque:
- 170-200 % of nominal motor torque
- Height:
- 232.0 mm
- Catalog:
- View
- Datasheet:
- View
