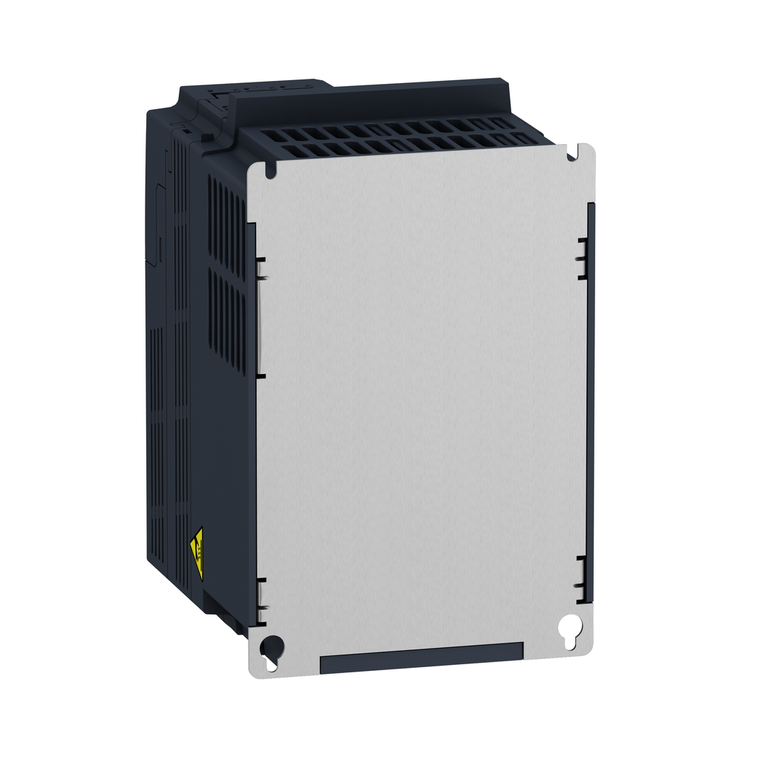

Schneider Electric ATV320U55S6C Atv320 5,5Kw 600V 3Ph Compact Control Va

(No reviews yet) Write a Review

Write a Review

Schneider Electric ATV320U55S6C Atv320 5,5Kw 600V 3Ph Compact Control Va

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ATV320U55S6C

UPC:

3.60648E+12

MPN:

Condition:

New

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Maximum Output Voltage:

600 V

Variant:

standard version

Ambient Air Temperature For Operation:

-10-50 °C without derating || 50-60 °C with derating factor

Brake Chopper Integrated:

TRUE

Sustainable Offer Status:

Green Premium product

Power Dissipation In W:

fan 148.0 W 525 V 4 kHz

[Us] Rated Supply Voltage:

525...600 V - 15...10 %

With Safety Function Safe Position (Sp):

FALSE

Environmental Disclosure:

ENVPEP1604022EN

Pollution Degree:

2

Product Certifications:

CE || ATEX || NOM || GOST || EAC || RCM || KC

4 Quadrant Operation Possible:

TRUE

Relative Symmetric Network Frequency Tolerance:

0.05

Analogue Input Number:

3

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Acceleration And Deceleration Ramps:

linear || U || S || CUS || ramp switching || acceleration/deceleration ramp adaptation || acceleration/deceleration automatic stop with DC injection

Product Specific Application:

complex machines

Transient Overtorque:

170-200 % of nominal motor torque

Network Frequency:

50-60 Hz

Discrete Output Type:

open collector DQ+ 0-1 kHz 30 V DC 100 mA || open collector DQ- 0-1 kHz 30 V DC 100 mA

With Safety Function Safe Programmable Logic:

FALSE

Minimum Switching Current:

relay output R1A, R1B, R1C, R2A, R2C 5 mA 24 V DC

Synchronous Motor Control Profile:

vector control without sensor

Depth:

178.0 mm

Asynchronous Motor Control Profile:

voltage/frequency ratio, 5 points || flux vector control without sensor, standard || voltage/frequency ratio - Energy Saving, quadratic U/f || flux vector control without sensor - Energy Saving || voltage/frequency ratio, 2 points

Overvoltage Category:

III

Discrete Output Number:

3

Maximum Output Frequency:

0.599 kHz

Upgradeability:

Upgraded components available

Switching Frequency:

2...16 kHz adjustable || 4...16 kHz with derating factor

Method Of Access:

slave CANopen

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Analogue Output Type:

software-configurable current AQ1 0...20 mA 800 Ohm 10 bits || software-configurable voltage AQ1 0...10 V DC 470 Ohm 10 bits

With Safety Function Safe Operating Stop (Sos):

FALSE

Protection Type:

input phase breaks drive || overcurrent between output phases and earth drive || overheating protection drive || short-circuit between motor phases drive || thermal protection drive

With Safety Function Safely Limited Speed (Sls):

TRUE

Product Or Component Type:

variable speed drive

With Sft Fct Safe Stop 2 (Ss2):

FALSE

Discrete Input Logic:

positive logic (source) || negative logic (sink)

Operating Position:

vertical +/- 10 degree

Maximum Acceleration Under Vibrational Stress (During Operation):

10 m/s² at 13...200 Hz

Ip Degree Of Protection:

IP20

Electromagnetic Compatibility:

electrostatic discharge immunity test level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge immu

Braking To Standstill:

by DC injection

Standards:

IEC 61800-5-1

Height:

232.0 mm

With Safety Function Safely Limited Position (Slp):

FALSE

Nominal Switching Frequency:

4 kHz

Nominal Output Current:

9.0 A

Environmental Class (During Operation):

class 3C3 according to IEC 60721-3-3 || class 3S2 according to IEC 60721-3-3

Option Card:

communication module, CANopen || communication module, EtherCAT || communication module, Profibus DP V1 || communication module, PROFINET || communication module, Ethernet Powerlink || communication module, EtherNet/IP || communication module, Device

Range Of Product:

Altivar Machine ATV320

China Rohs Regulation:

X

Rohs Exemption Information:

Yes

With Safety Function Safe Speed Monitor (Ssm):

FALSE

Discrete Input Type:

STO safe torque off, 24 V DC1.5 kOhm || DI1...DI6 logic inputs, 24 V DC 30 V) || DI5 programmable as pulse input 0-30 kHz, 24 V DC 30 V)

Maximum Acceleration Under Shock Impact (During Operation):

150 m/s² at 11 ms

Circularity Profile:

ENVEOLI1604022EN

Marking:

CE || ATEX || UL || CSA || EAC || RCM

Ambient Air Transport Temperature:

-25-70 °C

Base Load Current At High Overload:

9.0 A

Motor Slip Compensation:

automatic whatever the load || adjustable 0...300 % || not available in voltage/frequency ratio (2 or 5 points)

Width:

150 mm

Line Current:

8.4 A 525 V heavy duty) || 7.5 A 600 V heavy duty)

Mercury Free:

Yes

Net Weight:

3.5 kg

Analogue Output Number:

1

Format Of The Drive:

compact

With Safety Function Safe Direction (Sdi):

FALSE

Relay Output Type:

configurable relay logic R1A 1 NO 100000 cycles || configurable relay logic R1B 1 NC 100000 cycles || configurable relay logic R1C || configurable relay logic R2A 1 NO 100000 cycles || configurable relay logic R2C

Maximum Deflection Under Vibratory Load (During Operation):

1.5 mm at 2...13 Hz

Speed Accuracy:

+/- 10 % of nominal slip 0.2 Tn to Tn

Ambient Air Temperature For Storage:

-25-70 °C

Apparent Power:

7.8 kVA 600 V heavy duty)

With Safety Function Safe Torque Off (Sto):

TRUE

Maximum Switching Current:

relay output R1A, R1B, R1C resistive, cos phi = 1 3 A 250 V AC || relay output R1A, R1B, R1C resistive, cos phi = 1 3 A 30 V DC || relay output R1A, R1B, R1C, R2A, R2C inductive, cos phi = 0.4 7 ms 2 A 250 V AC || relay output R1A, R1B, R1C, R2A, R2C

Emc Filter:

without EMC filter

Mounting Mode:

wall mount

Regulation Loop:

adjustable PID regulator

With Safety Function Safe Brake Management (Sbc/Sbt):

FALSE

Volume Of Cooling Air:

60 m3/h

With Safety Function Safe Stop 1 (Ss1):

TRUE

Prospective Line Isc:

22 kA

Communication Port Protocol:

Modbus serial || CANopen

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Motor Power Kw:

5.5 kW heavy duty

Analogue Input Type:

AI1 voltage 0...10 V DC 30 kOhm 10 bits || AI2 bipolar differential voltage +/- 10 V DC 30 kOhm 10 bits || AI3 current 0...20 mA (or 4-20 mA, x-20 mA, 20-x mA or other patterns by configuration) 250 Ohm 10 bits

Permitted Relative Humidity (During Operation):

class 3K5 according to EN 60721-3

Discrete Input Number:

7
